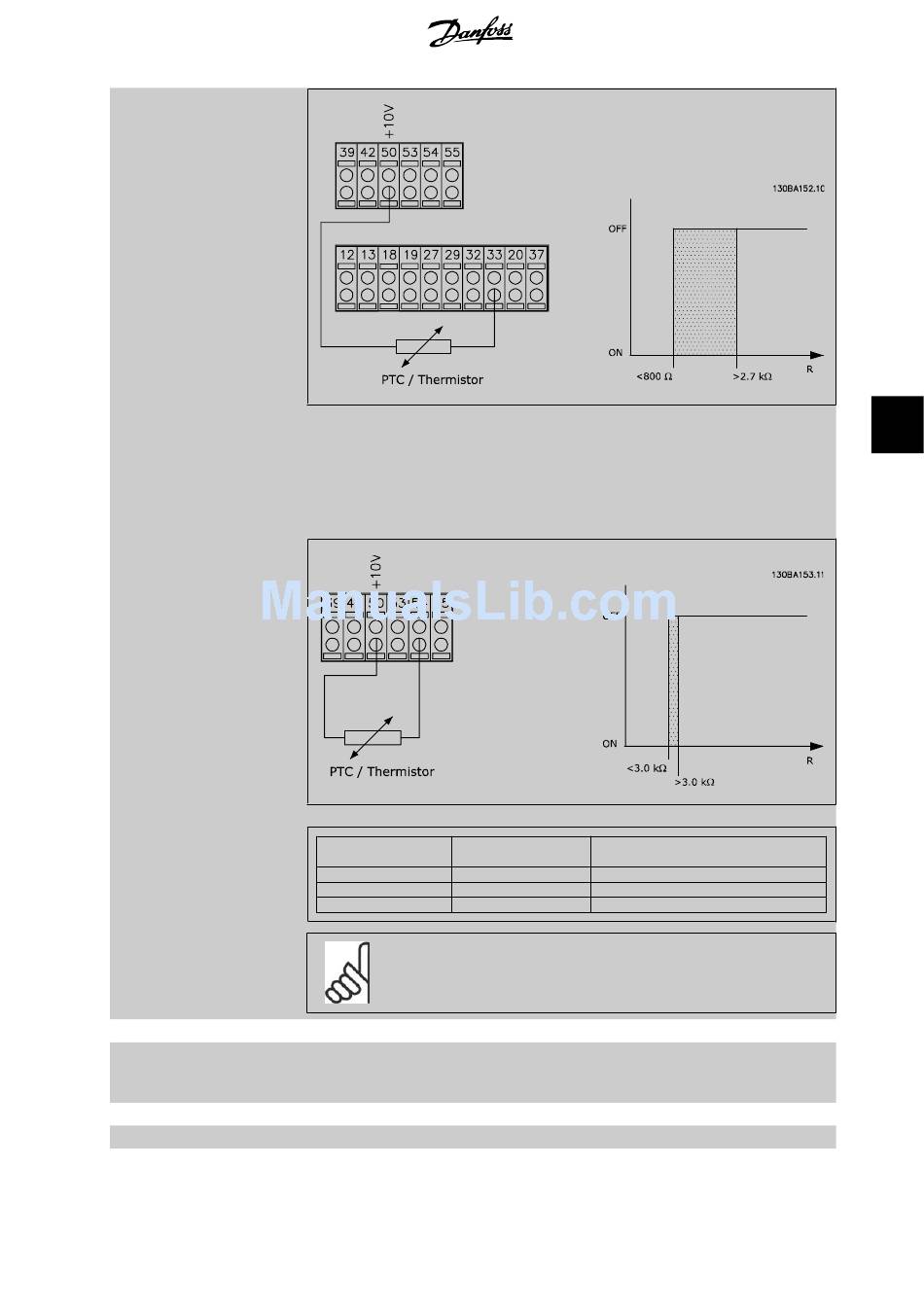

Using an analog input and 10 V as power supply:

Example: The frequency converter trips when the motor temperature is too high.
Parameter set-up:
Set Par. 1-90 Motor Thermal Protection
Thermistor Source Analog Input 54
Set Par. 1-93 to
Do not select a reference source.
Input Supply Voltage
Digital/analog Volt
Digital 24 V
Digital 10 V
Analog 10 V
NB!
Check that the chosen supply voltage follows the specification of the used thermistor element.
ETR Warning 1-4
, activate a warning on the display when the motor is overloaded.
ETR Trip 1-4 trip the frequency converter when the motor is overloaded.
Programme a warning signal via one of the digital outputs. The signal appears in the event of a warning and if
the frequency converter trips (thermal warning).
See [3]
See [4]
See [3]
MG.11.A6.02 - VLT ® is a registered Danfoss trademark
6. How to programme the frequency converter
to Thermistor Trip [2]
[2]
Threshold
Cut-out Values
< 6.6 kΩ - > 10.8 kΩ
< 800Ω - > 2.7 kΩ
< 3.0 kΩ - > 3.0 kΩ
