4.1.15. Motor connection for B3 and B4

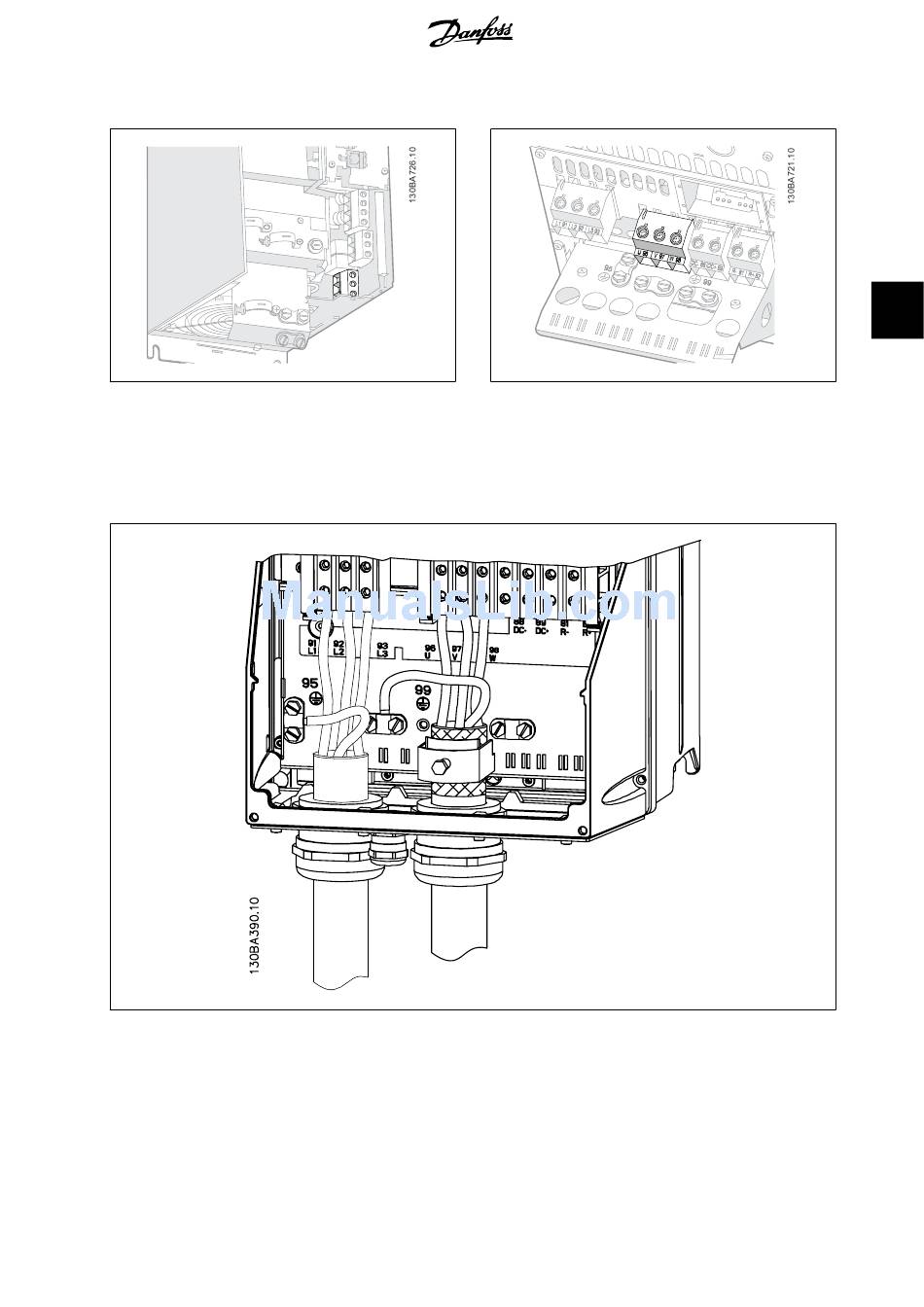

Illustration 4.20: First terminate the motor earth, then Place
motor U, V and W wires in terminal and tighten. Please ensure
that the outer insulation of the motor cable is removed under
the EMC clamp.

4.1.16. Motor connection for C1 and C2

Illustration 4.22: First terminate the motor earth, then Place motor U, V and W wires in terminal and tighten. Please ensure that the
outer insulation of the motor cable is removed under the EMC clamp.
Illustration 4.21: First terminate the motor earth, then Place
motor U, V and W wires in terminal and tighten. Please ensure
that the outer insulation of the motor cable is removed under
the EMC clamp.
