6. How to programme the frequency converter
NB!
Max. output frequency cannot exceed 10% of the inverter switching frequency (par. 14-01).
3-11 Jog Speed [Hz]
Range:
*
Size related [0 - 1000 Hz]

6.1.3. Function Setups

The Function set-up provides quick and easy access to all parameters required for the majority of HVAC applications including most VAV and CAV supply
6
and return fans, cooling tower fans, Primary, Secondary and Condenser Water Pumps and other pump, fan and compressor applications.
How to access Function Set-up - example

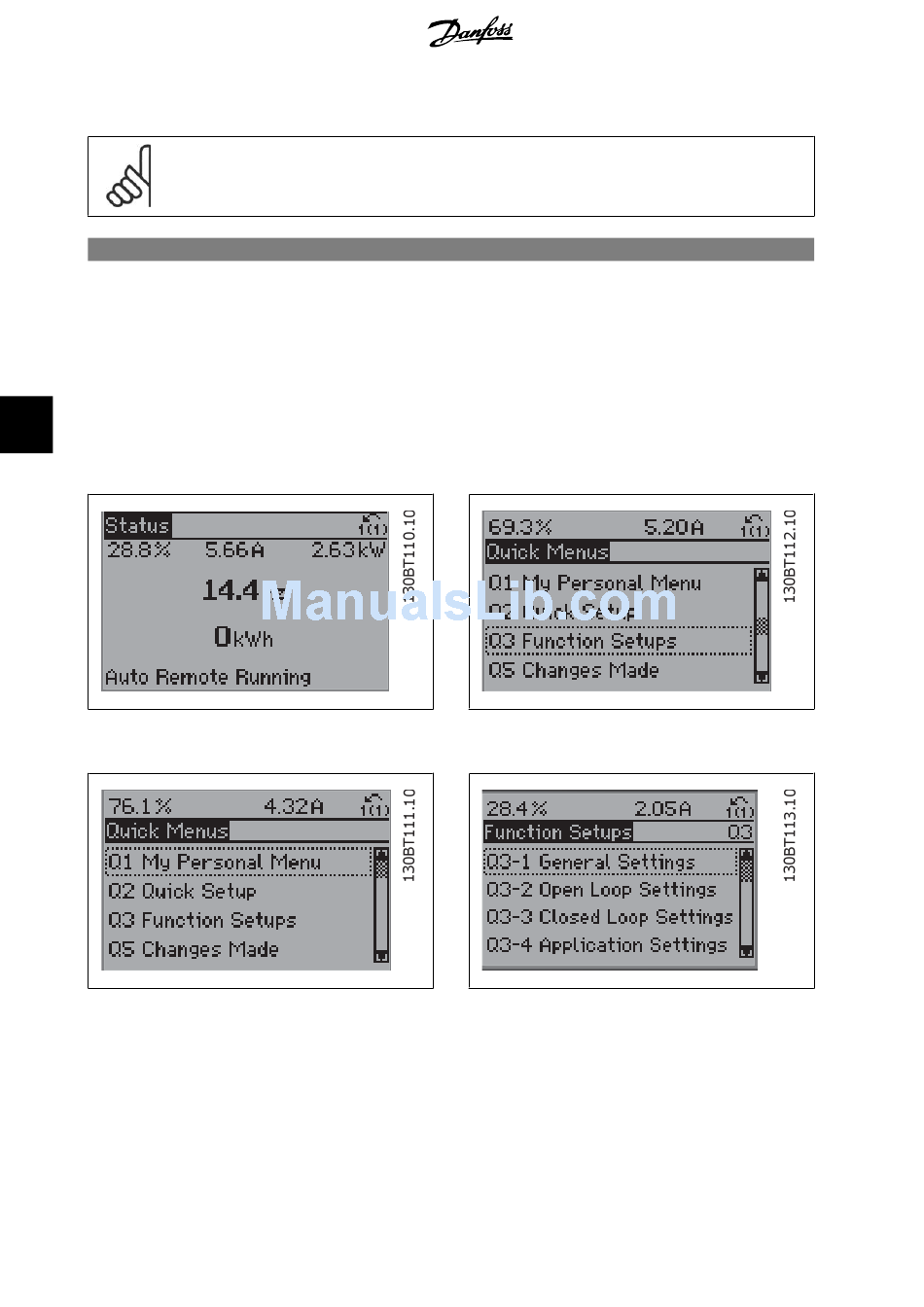

Illustration 6.2: Step 1: Turn on the frequency converter (yel-
low LED lights)
Illustration 6.3: Step 2: Press the [Quick Menus] button (Quick
Menus choices appear).
70
Motor Speed Low Limit [Hz]
the setting in par. 4-12
parameters set in the Main Menu and depending on default settings dependant on global geographical location.
Function:
The jog speed is a fixed output speed at which the frequency converter is running when the jog function is
activated.
See also par. 3-80.
MG.11.A6.02 - VLT ® is a registered Danfoss trademark
®
VLT HVAC Drive Operating Instructions
. Only par. 4-11 or 4-12 will be displayed depending on other
Illustration 6.4: Step 3: Use the up/down navigation keys to
scroll down to Function Setups. Press [OK].
Illustration 6.5: Step 4: Function Setups choices appear.
General Settings
Choose 03-1 . Press [OK].
