4. Electrical installation

4.1.13. Motor connection for A5

4

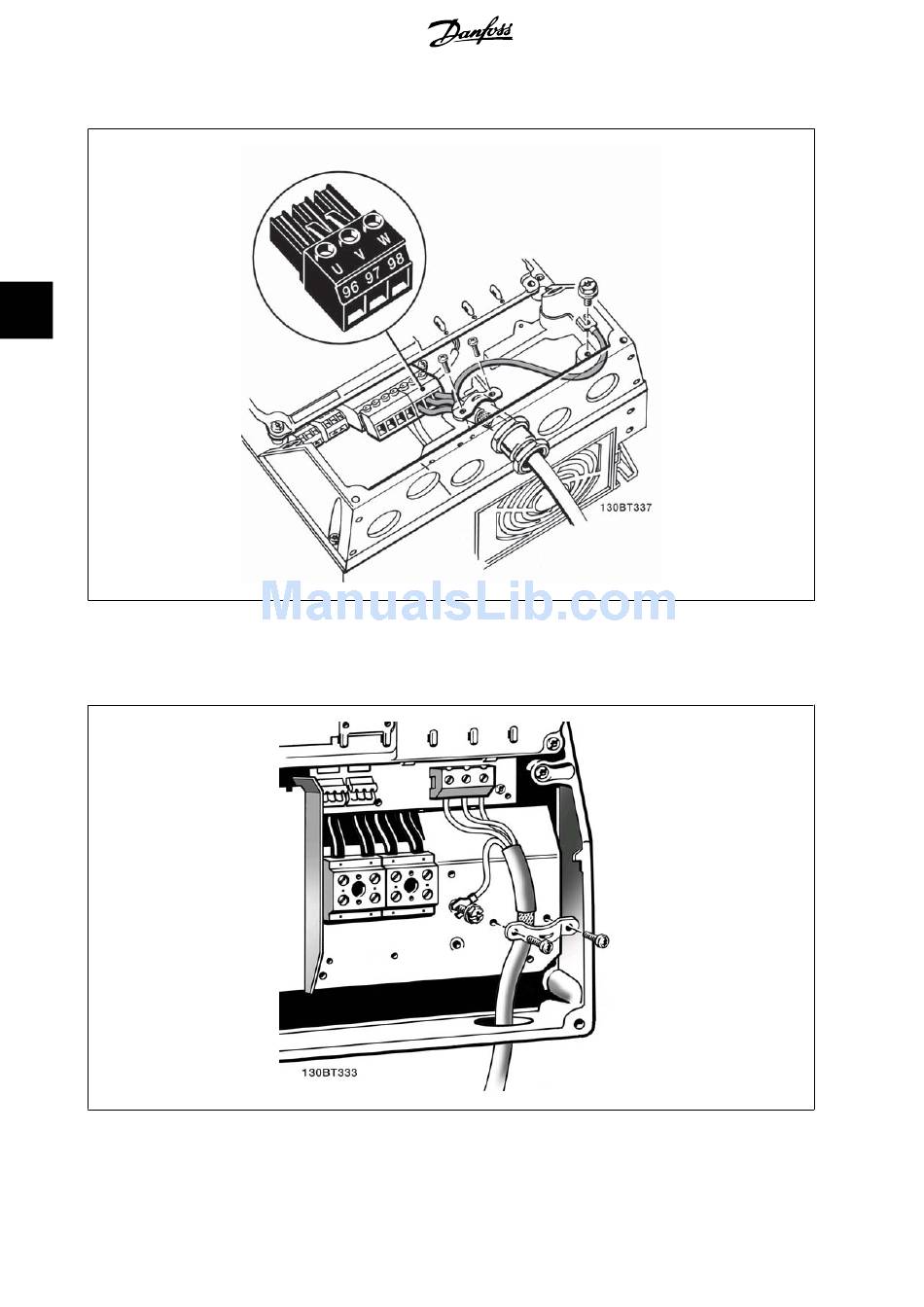

Illustration 4.18: First terminate the motor earth, then place motor U, V and W wires in terminal and tighten. Please ensure that the
outer insulation of the motor cable is removed under the EMC clamp.
4.1.14. Motor connection for B1 and B2
Illustration 4.19: First terminate the motor earth, then Place motor U, V and W wires in terminal and tighten. Please ensure that the
outer insulation of the motor cable is removed under the EMC clamp.
34
