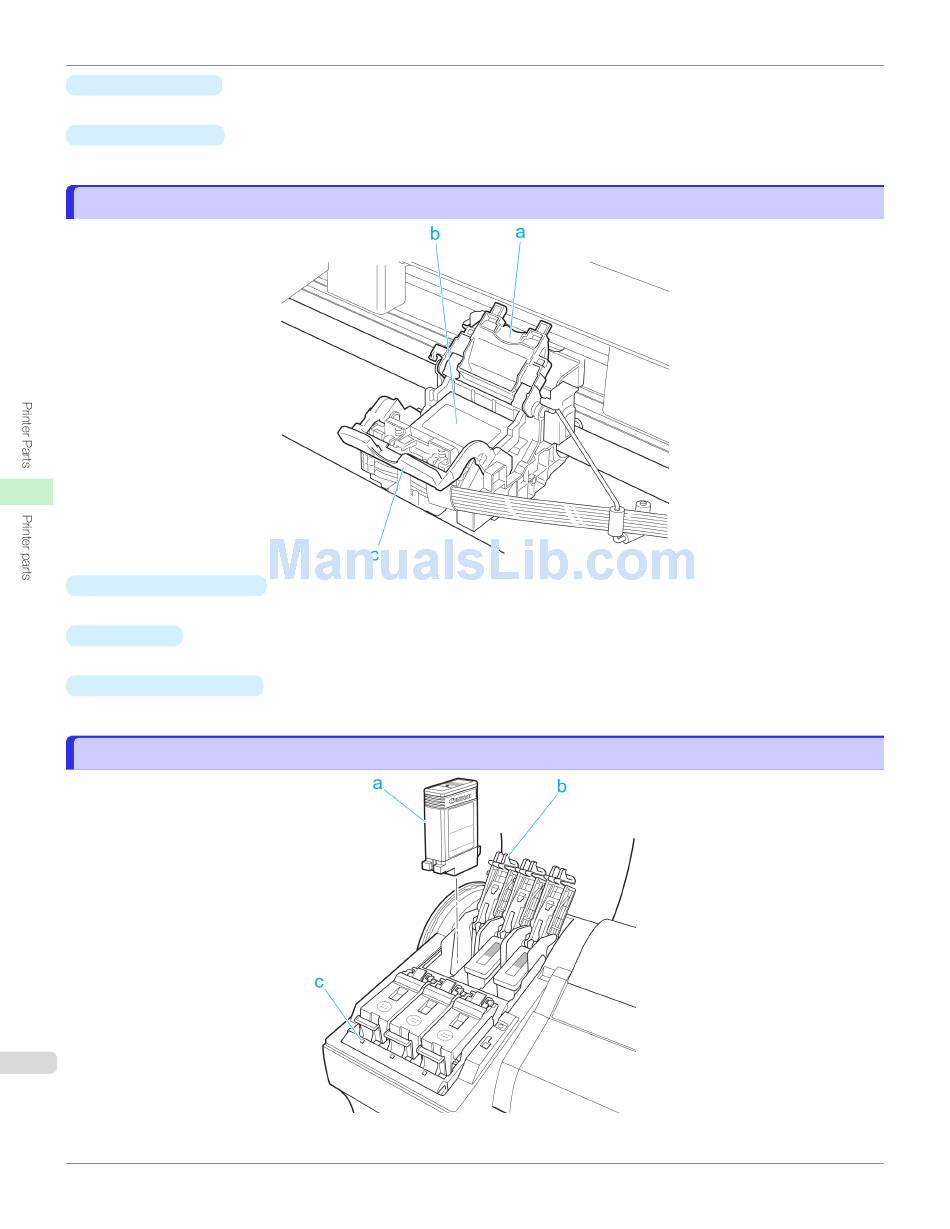

Carriage
b
Holder Stopper
Secure rolls on the Roll Holder with this part.
c
Roll Holder Slot
Slide the Roll Holder into this slot.
Carriage
Carriage
Printhead Fixer Cover
a
Holds the Printhead in place. Do not open this part except during Printhead replacement.
Printhead
b
The printhead is equipped with ink nozzles. It serves a key role in printing.
Printhead Fixer Lever
c
Locks the Printhead Fixer Cover. Do not open this part except during Printhead replacement.
Ink Tank Cover (Inside)
Ink Tank Cover (Inside)
