Chapter 1

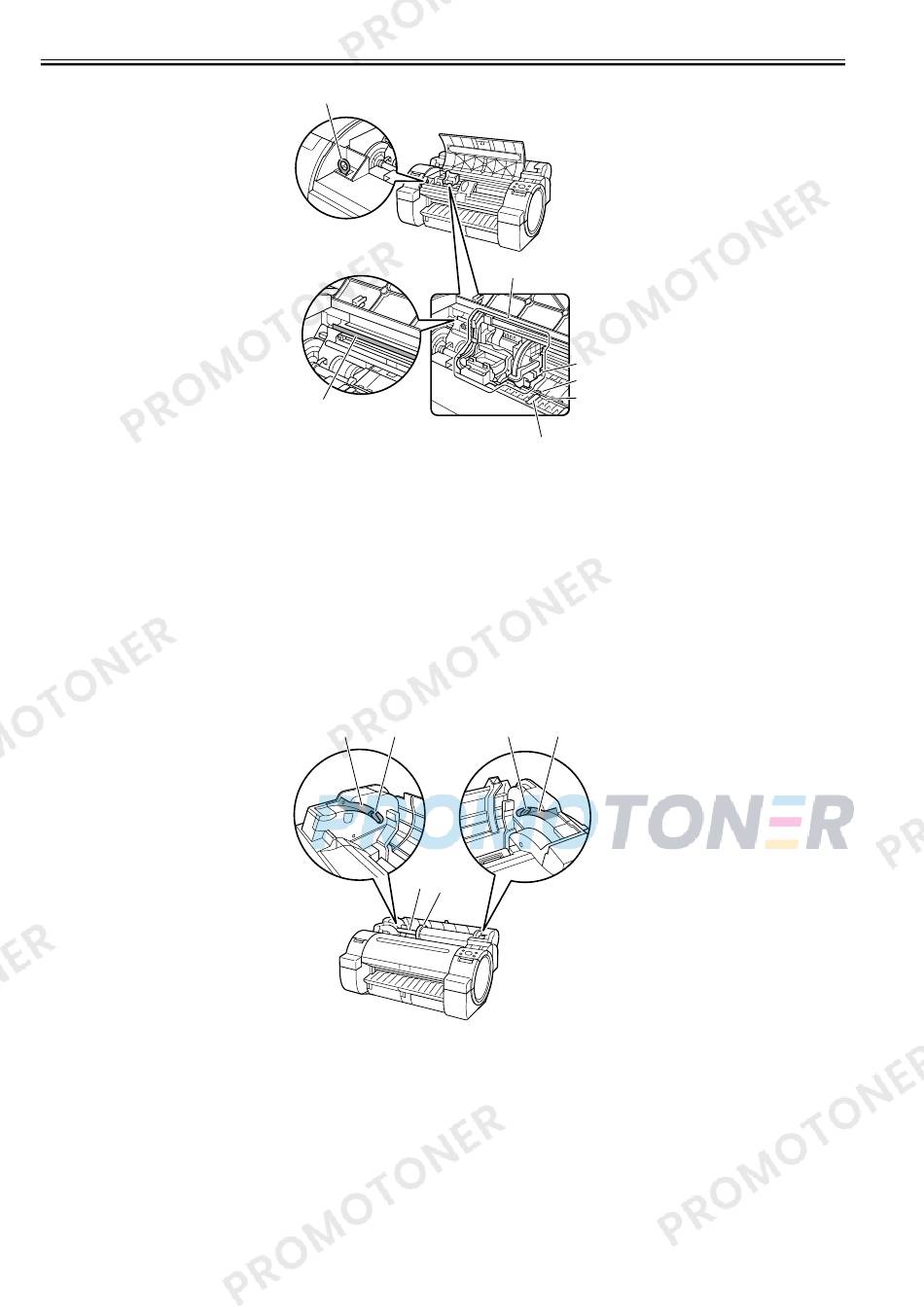

[1] Carriage

The carriage moves the printhead. It is an important component used for printing.
[2] Carriage shaft
The carriage moves on this shaft.
[3] Paper retainer
This is an important component used to feed paper. It retains paper.
[4] Platen
The printhead moves on this component to perform printing. Suction holes are provided on the platen surface to prevent media from floating.
[5] Borderless printing ink catch groove
Ink flowed out of the paper edges enter in this groove during borderless printing.
[6] Linear scale
This is an important component used to detect the carriage position. Never touch it when cleaning the parts or removing jammed media inside the upper cover.
[7] Cleaner brush
Use this brush to remove paper dust off the platen when cleaning the parts inside the upper cover.

1.5.4 Roll Unit Cover (Inside)

iPF650 / iPF655
[1] Roll holder
Load roll media in this holder.
[2] Holder stopper
Use this part to secure roll media to the roll holder.
[3] Slide guide
Move the roll holder along this guide.
[4] Roll holder slot
Fit the roll holder in this slot.
1.5.5 Carriage
iPF650 / iPF655
1-14
[7]
[6]
F-1-20
[3] [4]
[1]
[2]
F-1-21
[1]
[2]
[3]
[4]
[5]
[4] [3]
