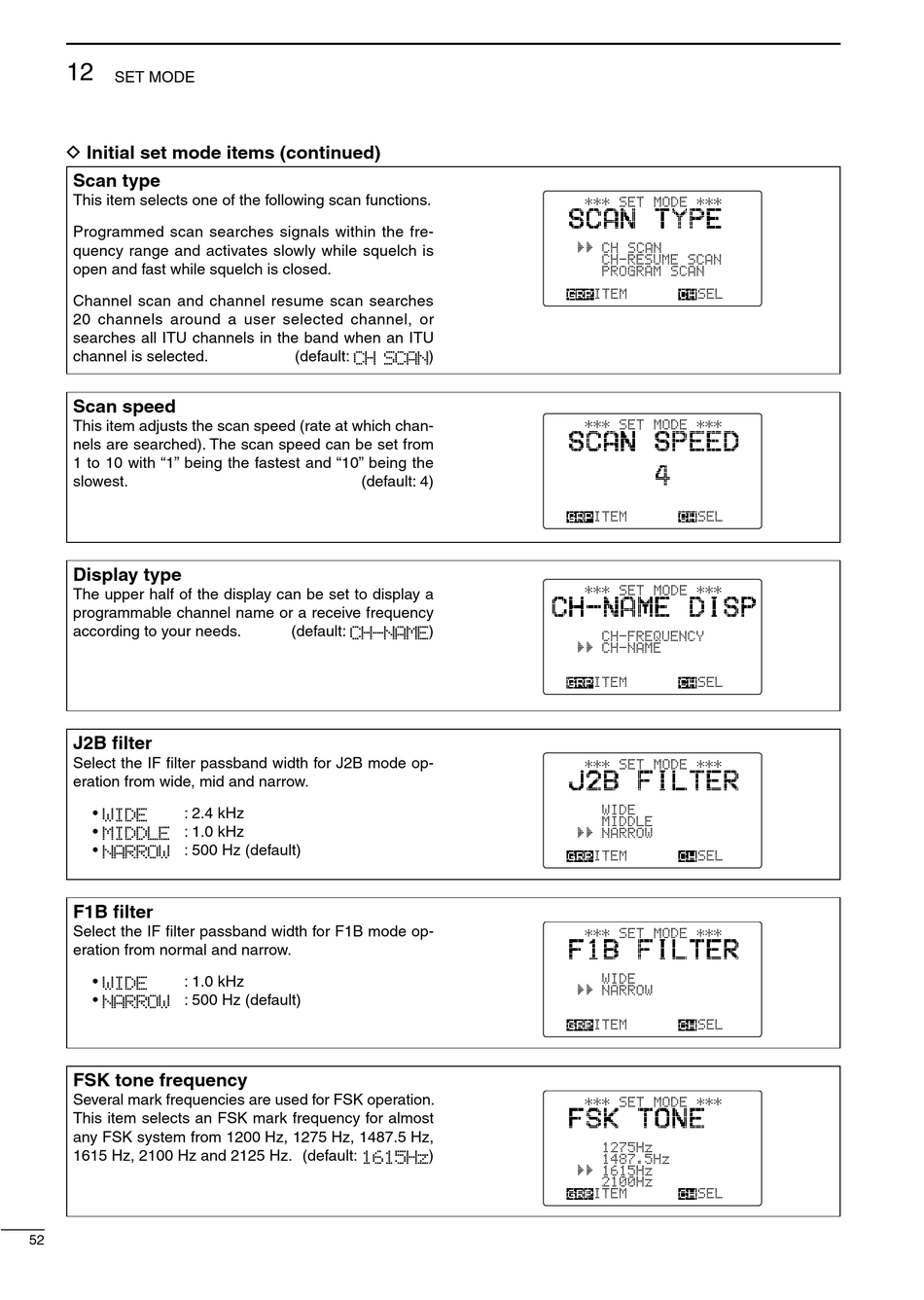

12
SET MODE
D Initial set mode items (continued)

Scan type

This item selects one of the following scan functions.
Programmed scan searches signals within the fre-
quency range and activates slowly while squelch is
open and fast while squelch is closed.
Channel scan and channel resume scan searches
20 channels around a user selected channel, or
searches all ITU channels in the band when an ITU
channel is selected.

Scan speed

This item adjusts the scan speed (rate at which chan-
nels are searched). The scan speed can be set from
1 to 10 with "1" being the fastest and "10" being the
slowest.

Display type

The upper half of the display can be set to display a
programmable channel name or a receive frequency
according to your needs.
J2B filter
Select the IF filter passband width for J2B mode op-
eration from wide, mid and narrow.
• WIDE : 2.4 kHz
• MIDDLE : 1.0 kHz
• NARROW : 500 Hz (default)
F1B filter
Select the IF filter passband width for F1B mode op-
eration from normal and narrow.
• WIDE : 1.0 kHz
• NARROW : 500 Hz (default)
FSK tone frequency
Several mark frequencies are used for FSK operation.
This item selects an FSK mark frequency for almost
any FSK system from 1200 Hz, 1275 Hz, 1487.5 Hz,
1615 Hz, 2100 Hz and 2125 Hz. (default: 1615Hz)
52
(default: CH SCAN)
(default: 4)
(default: CH-NAME)
* * * S E T M O D E * * *
C H S C A N
ÇÇ
C H - R E S U M E S C A N
P R O G R A M S C A N
I T E M S E L
* * * S E T M O D E * * *
I T E M S E L
* * * S E T M O D E * * *
C H - F R E Q U E N C Y
C H - N A M E
ÇÇ
I T E M S E L
* * * S E T M O D E * * *
W I D E
M I D D L E
N A R R O W
ÇÇ
I T E M S E L
* * * S E T M O D E * * *
W I D E
N A R R O W
ÇÇ
I T E M S E L
* * * S E T M O D E * * *
1 2 7 5 H z
1 4 8 7 . 5 H z
1 6 1 5 H z
ÇÇ
2 1 0 0 H z
I T E M S E L
