Icom IC-M802 Connection Manual

SP-24
EXTERNAL REMOTE HEAD
SPEAKER
M802
Transceiver Unit
(Front)
From GPS
(for DSC)
Tuner Control
M802
Transceiver Unit
(Back)
OPC-1147N
(Shielded
Control Cable)
©2007 Icom America Inc. The Icom logo is a registered trademark of Icom Inc.
IC-M802

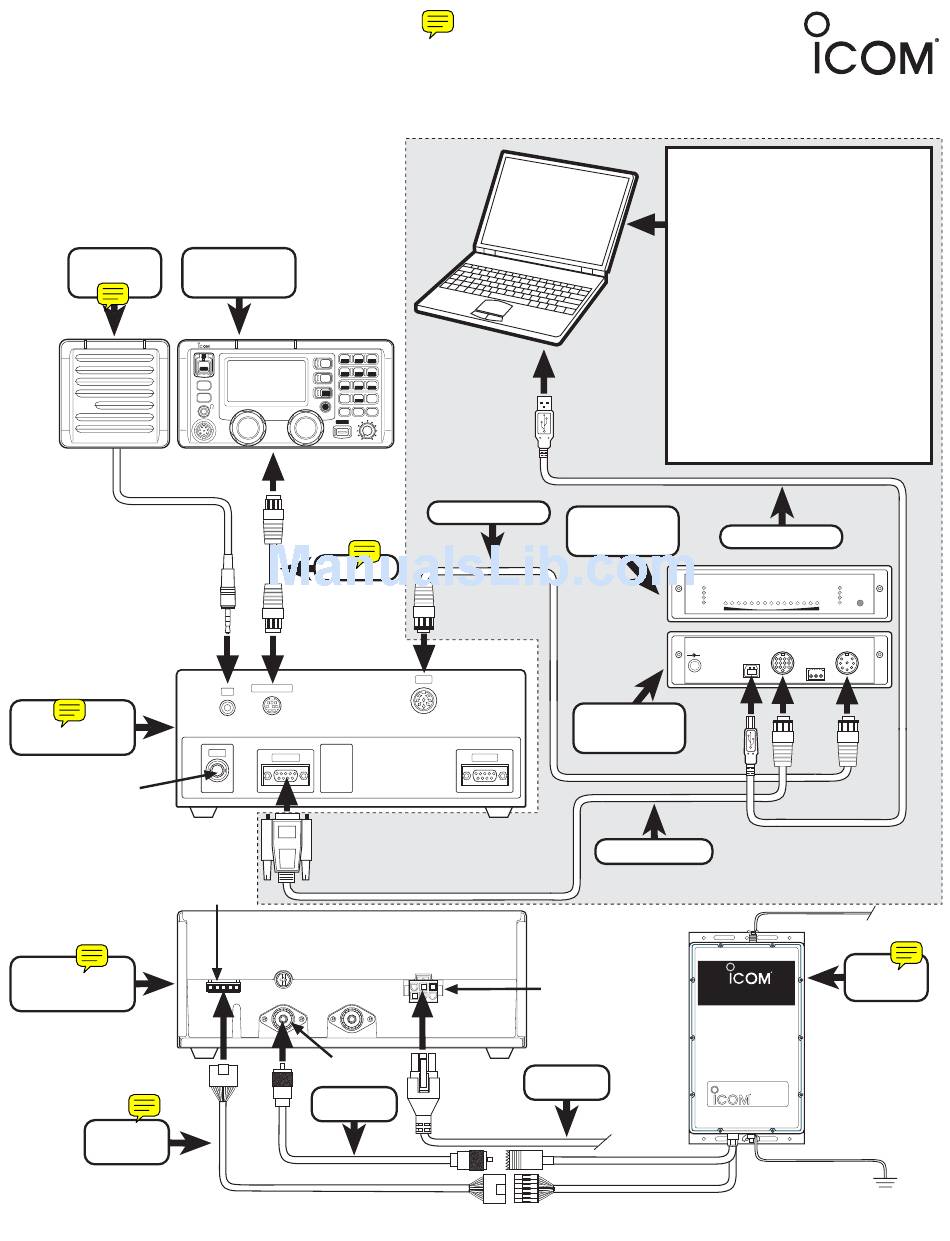

GENERAL & EMAIL CONNECTION GUIDE
Components in shaded area only required for email
M802
(RC-25)
IC-M802
HF MARINE
1 1 2 3
NB SQL SCAN
QZ ABC DEF
THRU
DISTRESS
TUNE
25W USA
4 SP* 5 AGC* 6 RF-G
12A
TAG GHI JKL MNO
SET
MODE
7 Lo 8 Mid 9 Hi
DSC
27°25.299N
PRS TUV WXY
80°16.500W
F
CANCEL Local 12:05 CALLING 0
DIM
CE ENT
CALL
– /.
e
mail
CLAR TXF FREQ
PX TX /CH
MIC
POWER VOL
GRP CH
OPC-1106
CONTROLLER
SP
GPS
REMOTE
Socket
Antenna
Connector 1
Coaxial
Cable
9456
SCS Part #9090
SCS PTC-IIusb
Pactor Modem
ACC
SCS PTC-IIusb
Pactor Modem
AF/MOD
DC Power
Socket
OPC-1107A
(Power Cable)
SailMail
1. Download the SailMail application from
http://www.sailmail.com .
2. Extract the zip file to the Desktop of your PC.
3. Double click the setup.exe file to begin the
software installation.
4. Please refer the SailMail Primer
(http://www.sailmail.com/smprimer.htm)
for detailed instructions.
Cruise Email
1. Download the CruiseEmail application from
http://www.cruisemail.com .
2. Extract the zip file to the Desktop of your PC.
3. Double click the setup.exe file to begin the
software installation.
4. Please refer the CrusieEmail User Guide
(http://www.cruisemail.com) for detailed
instructions.
USB A/B Cable
(Front)
DSP Multimode PACTOR Controller
SCS PTC-IIusb
PACTOR-1 PACTOR-II
AMTOR RTTY
AUDIO FAX/SSTV
CW PACKET
DC In TRX Control
USB
(Back)
SCS Part #8083
AUTOMATIC ANTENNA TUNER
AT-140
To Battery
Connected Send/PTT
DQPSK DBPSK
MaxSpeed HiSpeed
Traffic/CD Error/Rq
ON/OFF
TRX Audio
GPS
To Antenna
AT-140N
Antenna
Tuner
Copper Foil
RF Ground
