7

CALL PROCEDURE

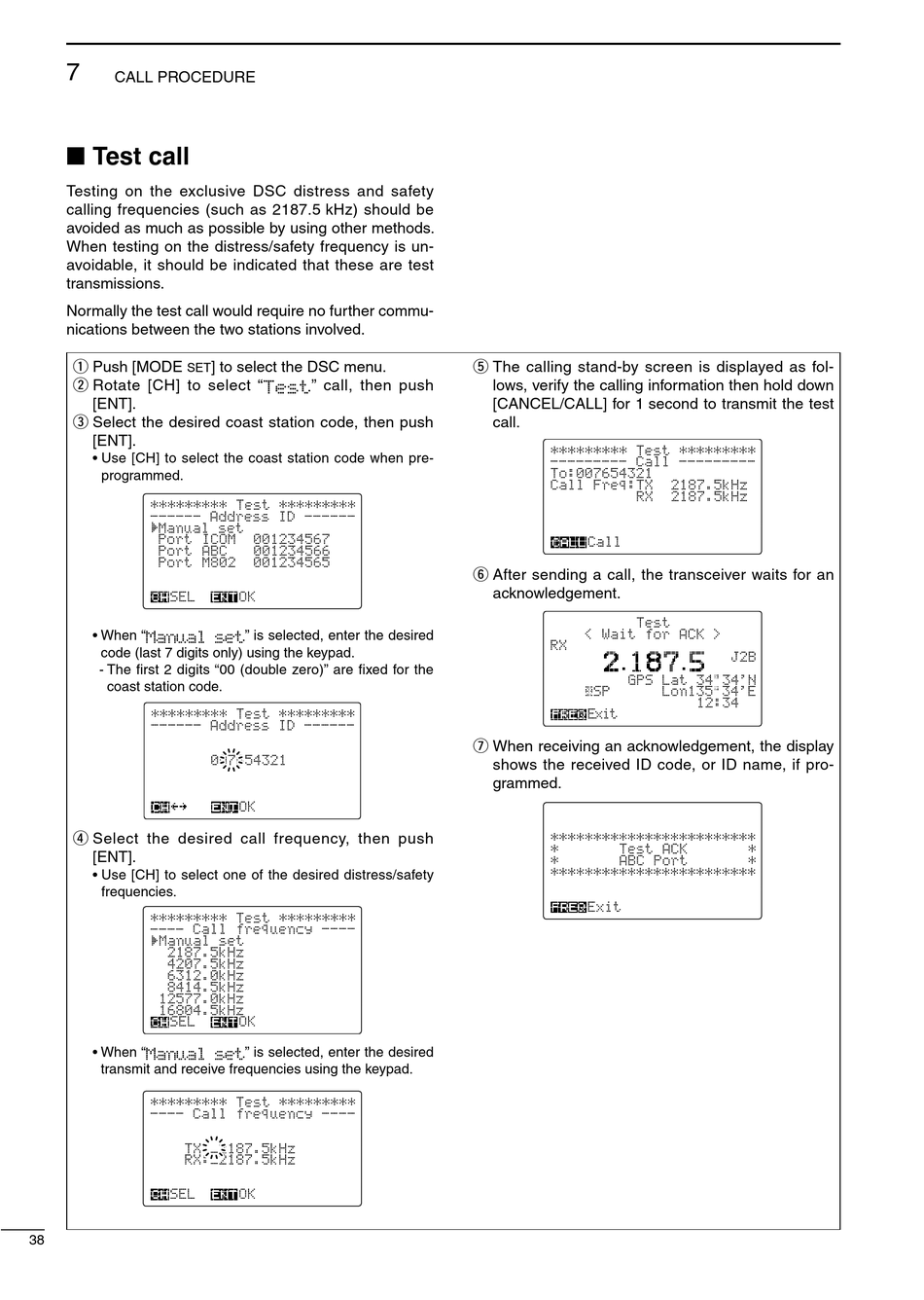

■ Test call

Testing on the exclusive DSC distress and safety
calling frequencies (such as 2187.5 kHz) should be
avoided as much as possible by using other methods.
When testing on the distress/safety frequency is un-
avoidable, it should be indicated that these are test
transmissions.
Normally the test call would require no further commu-
nications between the two stations involved.
q Push [MODE
set
w Rotate [CH] to select "Test" call, then push
[ENT].
e Select the desired coast station code, then push
[ENT].
• Use [CH] to select the coast station code when pre-
programmed.
* * * * * * * * * T e s t * * * * * * * * *
- - - - - - A d d r e s s I D - - - - - -
M a n u a l s e t
Ç
P o r t I C O M
P o r t A B C
P o r t M 8 0 2
S E L
• When "Manual set" is selected, enter the desired
code (last 7 digits only) using the keypad.
- The first 2 digits "00 (double zero)" are fixed for the
coast station code.
* * * * * * * * * T e s t * * * * * * * * *
- - - - - - A d d r e s s I D - - - - - -
r Select the desired call frequency, then push
[ENT].
• Use [CH] to select one of the desired distress/safety
frequencies.
* * * * * * * * * T e s t * * * * * * * * *
- - - - C a l l f r e q u e n c y - - - -
M a n u a l s e t
Ç
2 1 8 7 . 5 k H z
4 2 0 7 . 5 k H z
6 3 1 2 . 0 k H z
8 4 1 4 . 5 k H z
1 2 5 7 7 . 0 k H z
1 6 8 0 4 . 5 k H z
S E L
• When "Manual set" is selected, enter the desired
transmit and receive frequencies using the keypad.
* * * * * * * * * T e s t * * * * * * * * *
- - - - C a l l f r e q u e n c y - - - -
T X : _ 2 1 8 7 . 5 k H z
R X : _ 2 1 8 7 . 5 k H z
S E L
38
] to select the DSC menu.
0 0 1 2 3 4 5 6 7
0 0 1 2 3 4 5 6 6
0 0 1 2 3 4 5 6 5
O K
0 0 7 6 5 4 3 2 1
O K
O K
O K
t The calling stand-by screen is displayed as fol-
lows, verify the calling information then hold down
[CANCEL/CALL] for 1 second to transmit the test
call.
* * * * * * * * * T e s t * * * * * * * * *
- - - - - - - - - C a l l - - - - - - - - -
T o : 0 0 7 6 5 4 3 2 1
C a l l F r e q : T X
R X
C a l l
y After sending a call, the transceiver waits for an
acknowledgement.
T e s t
< W a i t f o r A C K >
R X
G P S
S P
Exit
u When receiving an acknowledgement, the display
shows the received ID code, or ID name, if pro-
grammed.
* * * * * * * * * * * * * * * * * * * * * * * *
* T e s t A C K
* A B C P o r t
* * * * * * * * * * * * * * * * * * * * * * * *
E x i t
2 1 8 7 . 5 k H z
2 1 8 7 . 5 k H z
J 2 B
L a t 3 4 3 4 ' N
L o n 1 3 5 3 4 ' E
1 2 : 3 4
*
*
