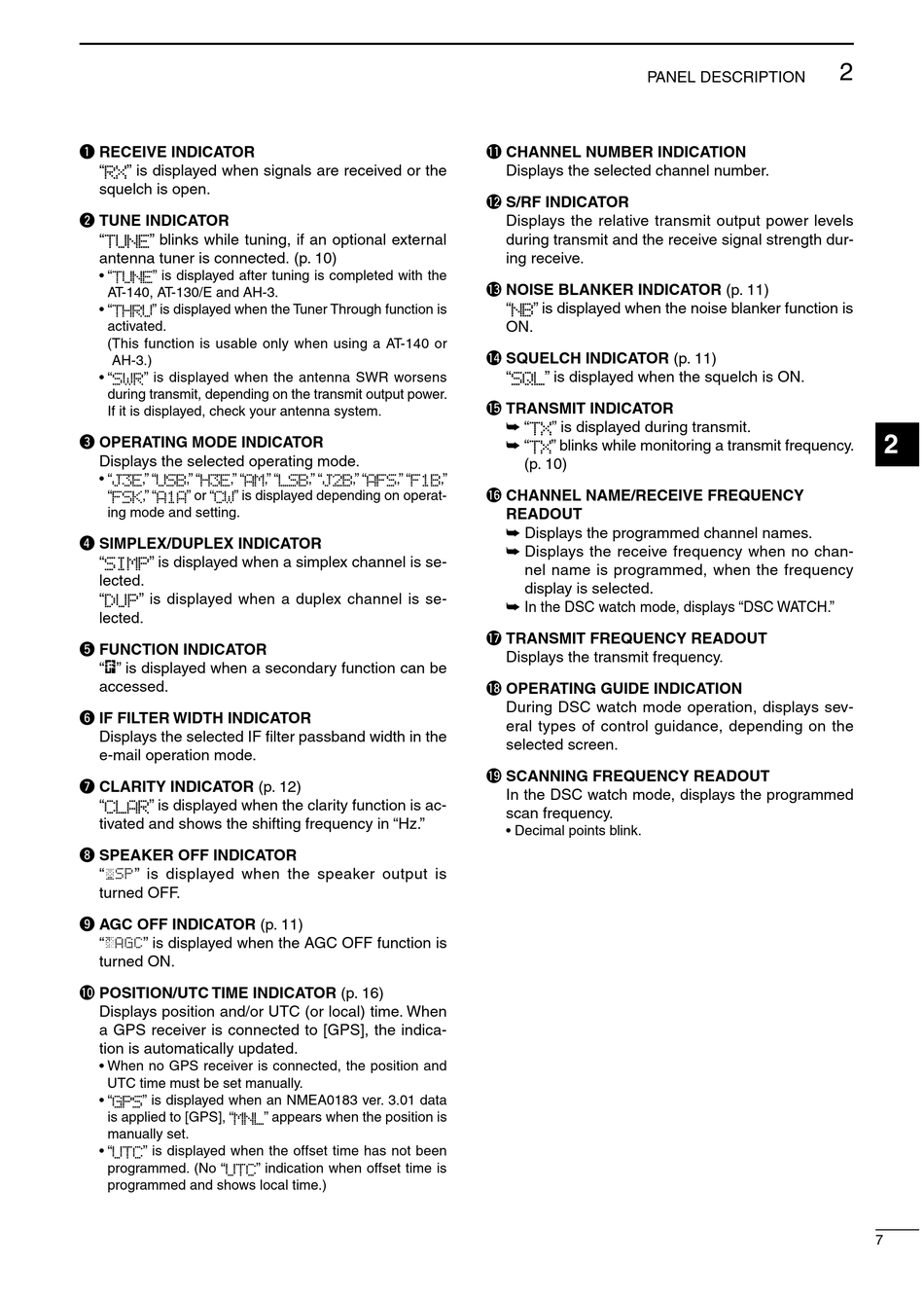

Panel Description - Icom IC-M802 Instruction Manual

q RECEIVE INDICATOR
"RX" is displayed when signals are received or the
squelch is open.
w TUNE INDICATOR
"TUNE" blinks while tuning, if an optional external
antenna tuner is connected. (p. 10)
• "TUNE" is displayed after tuning is completed with the
AT-140, AT-130/E and AH-3.
• "THRU" is displayed when the Tuner Through function is
activated.
( This function is usable only when using a AT-140 or
AH-3.)
• "SWR" is displayed when the antenna SWR worsens
during transmit, depending on the transmit output power.
If it is displayed, check your antenna system.
e OPERATING MODE INDICATOR
Displays the selected operating mode.
• "J3E," "USB," "H3E," "AM," "LSB," "J2B," "AFS," "F1B,"
"FSK," "A1A" or "CW" is displayed depending on operat-
ing mode and setting.
r SIMPLEX/DUPLEX INDICATOR
"SIMP" is displayed when a simplex channel is se-
lected.
"DUP" is displayed when a duplex channel is se-
lected.
t FUNCTION INDICATOR
" " is displayed when a secondary function can be
accessed.
y IF FILTER WIDTH INDICATOR
Displays the selected IF filter passband width in the
e-mail operation mode.
u CLARITY INDICATOR (p. 12)
"CLAR" is displayed when the clarity function is ac-
tivated and shows the shifting frequency in "Hz."
i SPEAKER OFF INDICATOR
" " is displayed when the speaker output is
S P
turned OFF.
o AGC OFF INDICATOR (p. 11)
" " is displayed when the AGC OFF function is
A G C
turned ON.
!0 POSITION/UTC TIME INDICATOR (p. 16)
Displays position and/or UTC (or local) time. When
a GPS receiver is connected to [GPS], the indica-
tion is automatically updated.
• When no GPS receiver is connected, the position and
UTC time must be set manually.
• "GPS" is displayed when an NMEA0183 ver. 3.01 data
is applied to [GPS], "MNL" appears when the position is
manually set.
• "UTC" is displayed when the offset time has not been
programmed. (No "UTC" indication when offset time is
programmed and shows local time.)

PANEL DESCRIPTION

!1 CHANNEL NUMBER INDICATION
Displays the selected channel number.
!2 S/RF INDICATOR
Displays the relative transmit output power levels
during transmit and the receive signal strength dur-
ing receive.
!3 NOISE BLANKER INDICATOR (p. 11)
"NB" is displayed when the noise blanker function is
ON.
!4 SQUELCH INDICATOR (p. 11)
"SQL" is displayed when the squelch is ON.
!5 TRANSMIT INDICATOR
➥ "TX" is displayed during transmit.
➥ "TX" blinks while monitoring a transmit frequency.
(p. 10)
!6 CHANNEL NAME/RECEIVE FREQUENCY
READOUT
➥ Displays the programmed channel names.
➥ Displays the receive frequency when no chan-
nel name is programmed, when the frequency
display is selected.
➥ In the DSC watch mode, displays "DSC WATCH."
!7 TRANSMIT FREQUENCY READOUT
Displays the transmit frequency.
!8 OPERATING GUIDE INDICATION
During DSC watch mode operation, displays sev-
eral types of control guidance, depending on the
selected screen.
!9 SCANNING FREQUENCY READOUT
In the DSC watch mode, displays the programmed
scan frequency.
• Decimal points blink.
