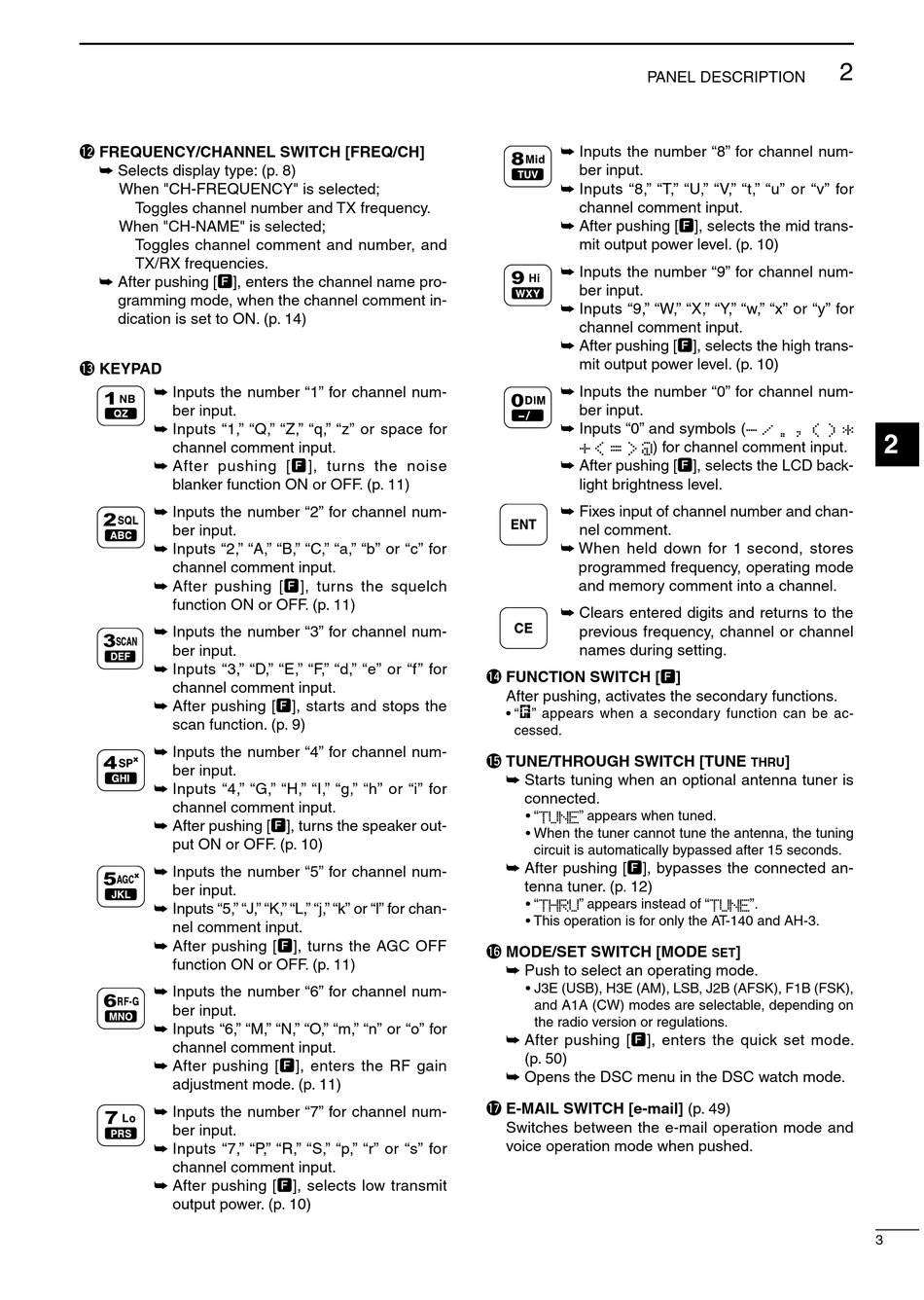

Icom IC-M802 Instruction Manual page 11

!2 FREQUENCY/CHANNEL SWITCH [FREQ/CH]
➥ Selects display type: (p. 8)
When "CH-FREQUENCY" is selected;
Toggles channel number and TX frequency.
When "CH-NAME" is selected;
Toggles channel comment and number, and
TX/RX frequencies.
➥ After pushing [F], enters the channel name pro-
gramming mode, when the channel comment in-
dication is set to ON. (p. 14)
!3 KEYPAD
➥ Inputs the number "1" for channel num-
ber input.
➥ Inputs "1," "Q," "Z," "q," "z" or space for
channel comment input.
➥ After pushing [F], turns the noise
blanker function ON or OFF. (p. 11)
➥ Inputs the number "2" for channel num-
ber input.
➥ Inputs "2," "A," "B," "C," "a," "b" or "c" for
channel comment input.
➥ After pushing [F], turns the squelch
function ON or OFF. (p. 11)
➥ Inputs the number "3" for channel num-
ber input.
➥ Inputs "3," "D," "E," "F," "d," "e" or "f" for
channel comment input.
➥ After pushing [F], starts and stops the
scan function. (p. 9)
➥ Inputs the number "4" for channel num-
ber input.
➥ Inputs "4," "G," "H," "I," "g," "h" or "i" for
channel comment input.
➥ After pushing [F], turns the speaker out-
put ON or OFF. (p. 10)
➥ Inputs the number "5" for channel num-
ber input.
➥ Inputs "5," "J," "K," "L," "j," "k" or "l" for chan-
nel comment input.
➥ After pushing [F], turns the AGC OFF
function ON or OFF. (p. 11)
➥ Inputs the number "6" for channel num-
ber input.
➥ Inputs "6," "M," "N," "O," "m," "n" or "o" for
channel comment input.
➥ After pushing [F], enters the RF gain
adjustment mode. (p. 11)
➥ Inputs the number "7" for channel num-
ber input.
➥ Inputs "7," "P," "R," "S," "p," "r" or "s" for
channel comment input.
➥ After pushing [F], selects low transmit
output power. (p. 10)
PANEL DESCRIPTION
➥ Inputs the number "8" for channel num-
ber input.
➥ Inputs "8," "T," "U," "V," "t," "u" or "v" for
channel comment input.
➥ After pushing [F], selects the mid trans-
mit output power level. (p. 10)
➥ Inputs the number "9" for channel num-
ber input.
➥ Inputs "9," "W," "X," "Y," "w," "x" or "y" for
channel comment input.
➥ After pushing [F], selects the high trans-
mit output power level. (p. 10)
➥ Inputs the number "0" for channel num-
ber input.
➥ Inputs "0" and symbols (- / . , ( ) *
+ < = > @) for channel comment input.
➥ After pushing [F], selects the LCD back-
light brightness level.
➥ Fixes input of channel number and chan-
nel comment.
➥ When held down for 1 second, stores
programmed frequency, operating mode
and memory comment into a channel.
➥ Clears entered digits and returns to the
previous frequency, channel or channel
names during setting.
!4 FUNCTION SWITCH [F]
After pushing, activates the secondary functions.
• " " appears when a secondary function can be ac-
cessed.
!5 TUNE/THROUGH SWITCH [TUNE
➥ Starts tuning when an optional antenna tuner is
connected.
• "TUNE" appears when tuned.
• When the tuner cannot tune the antenna, the tuning
circuit is automatically bypassed after 15 seconds.
➥ After pushing [F], bypasses the connected an-
tenna tuner. (p. 12)
• "THRU" appears instead of "TUNE".
• This operation is for only the AT-140 and AH-3.
!6 MODE/SET SWITCH [MODE
➥ Push to select an operating mode.
• J3E (USB), H3E (AM), LSB, J2B (AFSK), F1B (FSK),
and A1A (CW) modes are selectable, depending on
the radio version or regulations.
➥ After pushing [F], enters the quick set mode.
(p. 50)
➥ Opens the DSC menu in the DSC watch mode.
!7 E-MAIL SWITCH [e-mail] (p. 49)
Switches between the e-mail operation mode and
voice operation mode when pushed.
