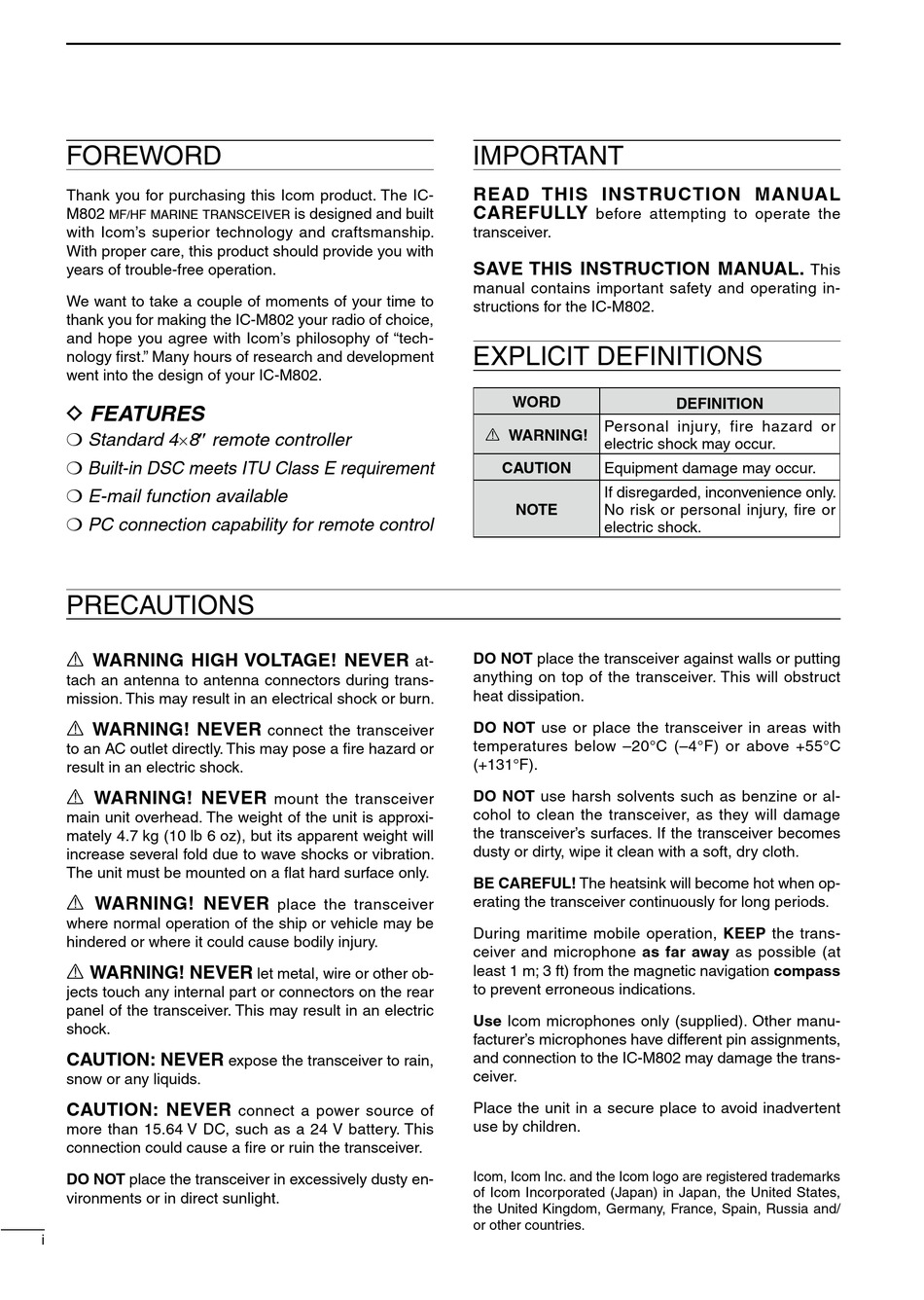

FOREWORD

Thank you for purchasing this Icom product. The IC-
M802
mf hf marine transceiver
/
with Icom's superior technology and craftsmanship.
With proper care, this product should provide you with
years of trouble-free operation.
We want to take a couple of moments of your time to
thank you for making the IC-M802 your radio of choice,
and hope you agree with Icom's philosophy of "tech-
nology first." Many hours of research and development
went into the design of your IC-M802.
D FEATURES
❍ Standard 4×8" remote controller
❍ Built-in DSC meets ITU Class E requirement
❍ E-mail function available
❍ PC connection capability for remote control

PRECAUTIONS

R WARNING HIGH VOLTAGE! NEVER
tach an antenna to antenna connectors during trans-
mission. This may result in an electrical shock or burn.
R WARNING! NEVER
to an AC outlet directly. This may pose a fire hazard or
result in an electric shock.
R WARNING! NEVER
main unit overhead. The weight of the unit is approxi-
mately 4.7 kg (10 lb 6 oz), but its apparent weight will
increase several fold due to wave shocks or vibration.
The unit must be mounted on a flat hard surface only.
R WARNING! NEVER
where normal operation of the ship or vehicle may be
hindered or where it could cause bodily injury.
R WARNING! NEVER
jects touch any internal part or connectors on the rear
panel of the transceiver. This may result in an electric
shock.
CAUTION: NEVER
snow or any liquids.
CAUTION: NEVER
more than 15.64 V DC, such as a 24 V battery. This
connection could cause a fire or ruin the transceiver.
DO NOT place the transceiver in excessively dusty en-
vironments or in direct sunlight.
i
is designed and built
connect the transceiver
mount the transceiver
place the transceiver
let metal, wire or other ob-
expose the transceiver to rain,
connect a power source of

IMPORTANT

READ THIS INSTRUCTION MANUAL
CAREFULLY
transceiver.
SAVE THIS INSTRUCTION MANUAL.
manual contains important safety and operating in-
structions for the IC-M802.

EXPLICIT DEFINITIONS

WORD
R WARNING!
CAUTION
NOTE
DO NOT place the transceiver against walls or putting
at-
anything on top of the transceiver. This will obstruct
heat dissipation.
DO NOT use or place the transceiver in areas with
temperatures below –20°C (–4°F) or above +55°C
(+131°F).
DO NOT use harsh solvents such as benzine or al-
cohol to clean the transceiver, as they will damage
the transceiver's surfaces. If the transceiver becomes
dusty or dirty, wipe it clean with a soft, dry cloth.
BE CAREFUL! The heatsink will become hot when op-
erating the transceiver continuously for long periods.
During maritime mobile operation, KEEP the trans-
ceiver and microphone as far away as possible (at
least 1 m; 3 ft) from the magnetic navigation compass
to prevent erroneous indications.
Use Icom microphones only (supplied). Other manu-
facturer's microphones have different pin assignments,
and connection to the IC-M802 may damage the trans-
ceiver.
Place the unit in a secure place to avoid inadvertent
use by children.
Icom, Icom Inc. and the Icom logo are registered trademarks
of Icom Incorporated (Japan) in Japan, the United States,
the United Kingdom, Germany, France, Spain, Russia and/
or other countries.
before attempting to operate the
DEFINITION
Personal injury, fire hazard or
electric shock may occur.
Equipment damage may occur.
If disregarded, inconvenience only.
No risk or personal injury, fire or
electric shock.
This
