7
CALL PROCEDURE

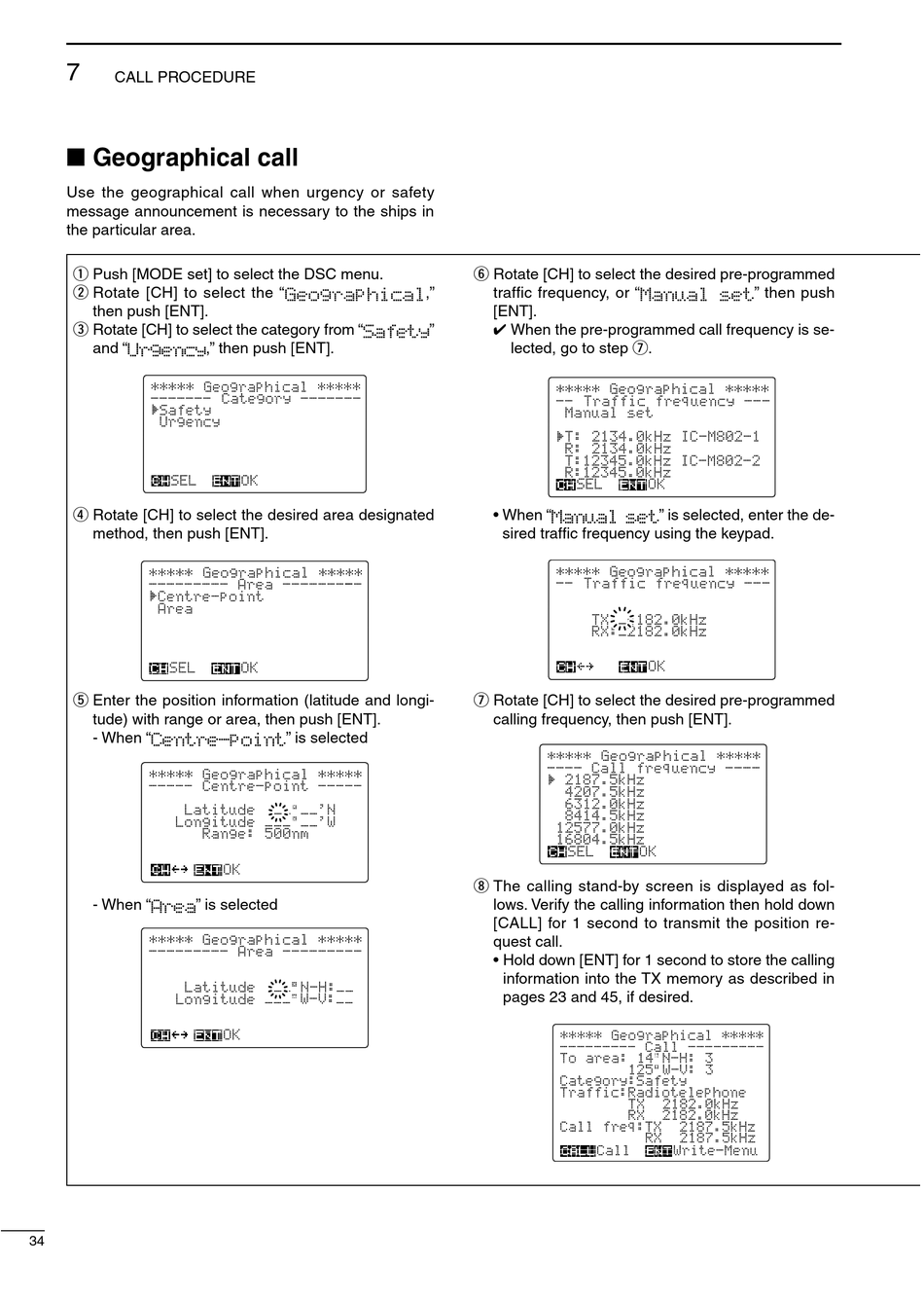

■ Geographical call

Use the geographical call when urgency or safety
message announcement is necessary to the ships in
the particular area.
q Push [MODE set] to select the DSC menu.
w Rotate [CH] to select the "Geographical‚"
then push [ENT].
e Rotate [CH] to select the category from "Safety"
and "Urgency‚" then push [ENT].
* * * * * G e o g r a p h i c a l * * * * *
- - - - - - - C a t e g o r y - - - - - - -
S a f e t y
Ç
U r g e n c y
S E L
r Rotate [CH] to select the desired area designated
method, then push [ENT].
* * * * * G e o g r a p h i c a l * * * * *
- - - - - - - - - A r e a - - - - - - - - - -
C e n t r e - p o i n t
Ç
A r e a
S E L
t Enter the position information (latitude and longi-
tude) with range or area, then push [ENT].
- When "Centre-point" is selected
* * * * * G e o g r a p h i c a l * * * * *
- - - - - C e n t r e - p o i n t - - - - -
L a t i t u d e
L o n g i t u d e
R a n g e :
- When "Area" is selected
* * * * * G e o g r a p h i c a l * * * * *
- - - - - - - - - A r e a - - - - - - - - -
L a t i t u d e
L o n g i t u d e
34
O K
O K
_ _ _ _ ' N
_ _ _ _ _ ' W
5 0 0 n m
O K
_ _ N - H : _ _
_ _ _ W - V : _ _
O K
y Rotate [CH] to select the desired pre-programmed
traffic frequency, or "Manual set" then push
[ENT].
✔ When the pre-programmed call frequency is se-
lected, go to step u.
* * * * * G e o g r a p h i c a l * * * * *
- - T r a f f i c f r e q u e n c y - - -
M a n u a l s e t
T : 2 1 3 4 . 0 k H z I C - M 8 0 2 - 1
Ç
R : 2 1 3 4 . 0 k H z
T : 1 2 3 4 5 . 0 k H z I C - M 8 0 2 - 2
R : 1 2 3 4 5 . 0 k H z
S E L
• When "Manual set" is selected, enter the de-
sired traffic frequency using the keypad.
* * * * * G e o g r a p h i c a l * * * * *
- - T r a f f i c f r e q u e n c y - - -
T X : _ 4 1 8 2 . 0 k H z
R X : _ 2 1 8 2 . 0 k H z
u Rotate [CH] to select the desired pre-programmed
calling frequency, then push [ENT].
* * * * * G e o g r a p h i c a l * * * * *
- - - - C a l l f r e q u e n c y - - - -
2 1 8 7 . 5 k H z
Ç
4 2 0 7 . 5 k H z
6 3 1 2 . 0 k H z
8 4 1 4 . 5 k H z
1 2 5 7 7 . 0 k H z
1 6 8 0 4 . 5 k H z
S E L O K
i The calling stand-by screen is displayed as fol-
lows. Verify the calling information then hold down
[CALL] for 1 second to transmit the position re-
quest call.
• Hold down [ENT] for 1 second to store the calling
information into the TX memory as described in
pages 23 and 45, if desired.
* * * * * G e o g r a p h i c a l * * * * *
- - - - - - - - - C a l l - - - - - - - - -
T o a r e a : 1 4 N - H : 3
1 2 5 W - V : 3
C a t e g o r y : S a f e t y
T r a f f i c : R a d i o t e l e p h o n e
T X
R X
C a l l f r e q : T X
R X
C a l l
O K
O K
2 1 8 2 . 0 k H z
2 1 8 2 . 0 k H z
2 1 8 7 . 5 k H z
2 1 8 7 . 5 k H z
W r i t e - M e n u
