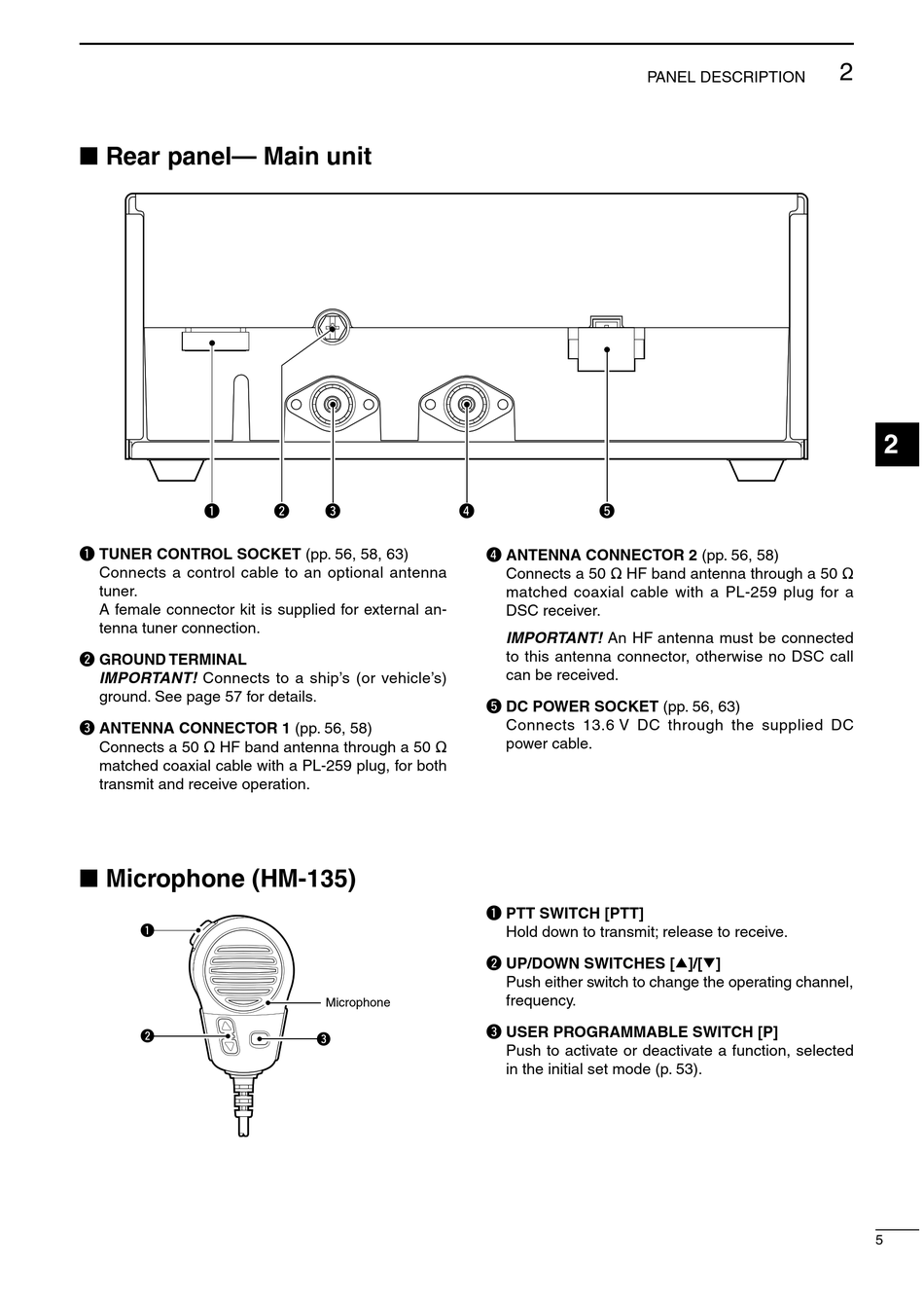

■ Rear panel— Main unit
q
q TUNER CONTROL SOCKET (pp. 56, 58, 63)
Connects a control cable to an optional antenna
tuner.
A female connector kit is supplied for external an-
tenna tuner connection.
w GROUND TERMINAL
IMPORTANT! Connects to a ship's (or vehicle's)
ground. See page 57 for details.
e ANTENNA CONNECTOR 1 (pp. 56, 58)
Connects a 50 Ω HF band antenna through a 50 Ω
matched coaxial cable with a PL-259 plug, for both
transmit and receive operation.
■ Microphone (HM-135)
q
w
w
e

Microphone

e
r
t
r ANTENNA CONNECTOR 2 (pp. 56, 58)
Connects a 50 Ω HF band antenna through a 50 Ω
matched coaxial cable with a PL-259 plug for a
DSC receiver.
IMPORTANT! An HF antenna must be connected
to this antenna connector, otherwise no DSC call
can be received.
t DC POWER SOCKET (pp. 56, 63)
Connects 13.6 V DC through the supplied DC
power cable.
q PTT SWITCH [PTT]
Hold down to transmit; release to receive.
w UP/DOWN SWITCHES [∫]/[√]
Push either switch to change the operating channel,
frequency.
e USER PROGRAMMABLE SWITCH [P]
Push to activate or deactivate a function, selected
in the initial set mode (p. 53).
