PANEL DESCRIPTION

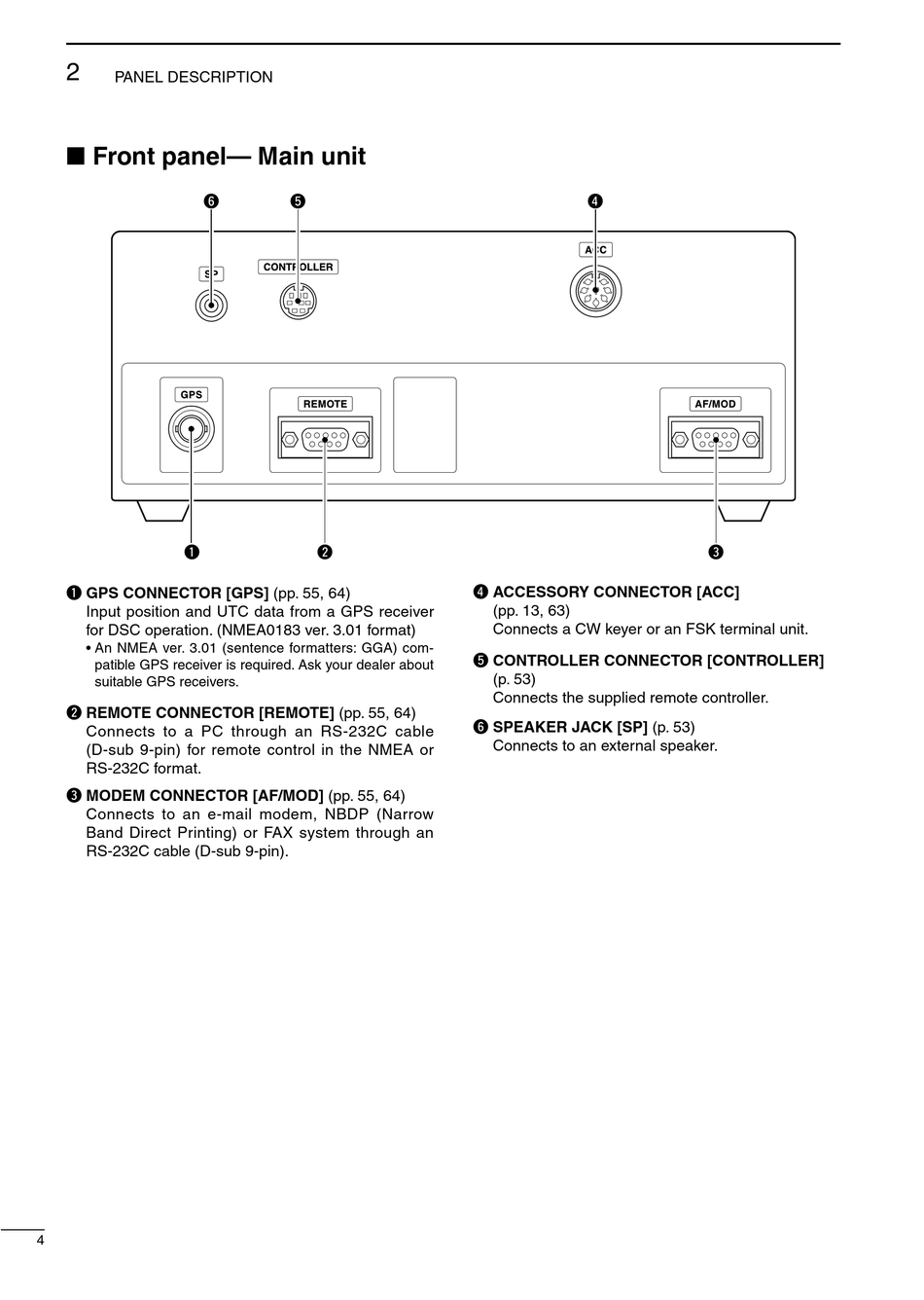

■ Front panel— Main unit
y
q
q GPS CONNECTOR [GPS] (pp. 55, 64)
Input position and UTC data from a GPS receiver
for DSC operation. (NMEA0183 ver. 3.01 format)
• An NMEA ver. 3.01 (sentence formatters: GGA) com-
patible GPS receiver is required. Ask your dealer about
suitable GPS receivers.
w REMOTE CONNECTOR [REMOTE] (pp. 55, 64)
Connects to a PC through an RS-232C cable
(D-sub 9-pin) for remote control in the NMEA or
RS-232C format.
e MODEM CONNECTOR [AF/MOD] (pp. 55, 64)
Connects to an e-mail modem, NBDP (Narrow
Band Direct Printing) or FAX system through an
RS-232C cable (D-sub 9-pin).
4
t
w
r
r ACCESSORY CONNECTOR [ACC]
(pp. 13, 63)
Connects a CW keyer or an FSK terminal unit.
t CONTROLLER CONNECTOR [CONTROLLER]
(p. 53)
Connects the supplied remote controller.
y SPEAKER JACK [SP] (p. 53)
Connects to an external speaker.
e
