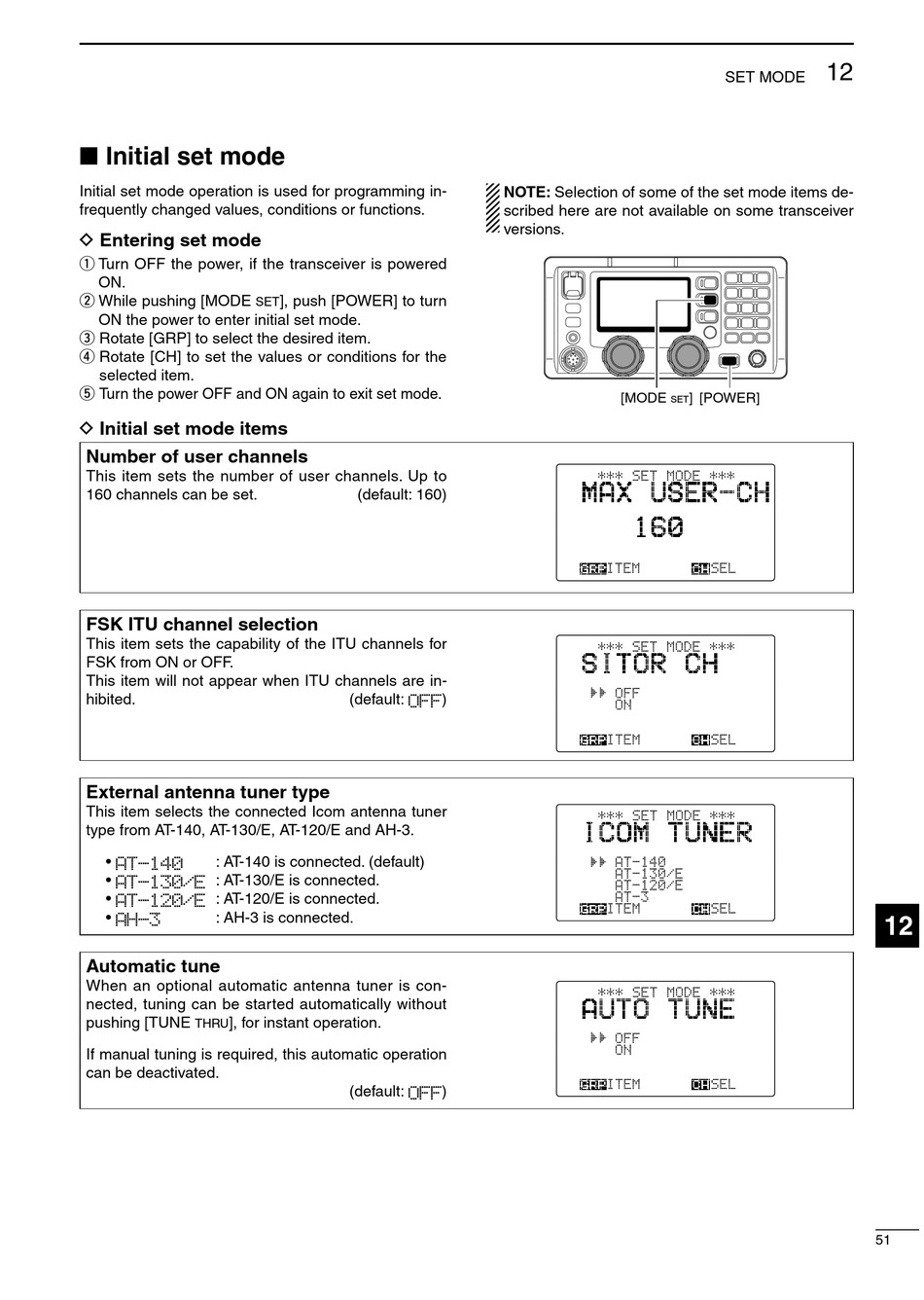

■ Initial set mode

Initial set mode operation is used for programming in-
frequently changed values, conditions or functions.
D Entering set mode
q Turn OFF the power, if the transceiver is powered
ON.
w While pushing [MODE
ON the power to enter initial set mode.
e Rotate [GRP] to select the desired item.
r Rotate [CH] to set the values or conditions for the
selected item.
t Turn the power OFF and ON again to exit set mode.
D Initial set mode items
Number of user channels
This item sets the number of user channels. Up to
160 channels can be set.
FSK ITU channel selection
This item sets the capability of the ITU channels for
FSK from ON or OFF.
This item will not appear when ITU channels are in-
hibited.
External antenna tuner type
This item selects the connected Icom antenna tuner
type from AT-140, AT-130/E, AT-120/E and AH-3.
• AT-140 : AT-140 is connected. (default)
• AT-130/E : AT-130/E is connected.
• AT-120/E : AT-120/E is connected.
• AH-3 : AH-3 is connected.
Automatic tune
When an optional automatic antenna tuner is con-
nected, tuning can be started automatically without
pushing [TUNE ], for instant operation.
thru
If manual tuning is required, this automatic operation
can be deactivated.
], push [POWER] to turn
set
(default: 160)
(default: OFF)
(default: OFF)
NOTE: Selection of some of the set mode items de-
scribed here are not available on some transceiver
versions.
[MODE
SET
* * * S E T M O D E * * *
I T E M
* * * S E T M O D E * * *
O F F
ÇÇ
O N
I T E M
* * * S E T M O D E * * *
A T - 1 4 0
ÇÇ
A T - 1 3 0 / E
A T - 1 2 0 / E
A T - 3
I T E M
* * * S E T M O D E * * *
O F F
ÇÇ
O N
I T E M
12
SET MODE
] [POWER]
S E L
S E L
S E L
S E L
12
51
