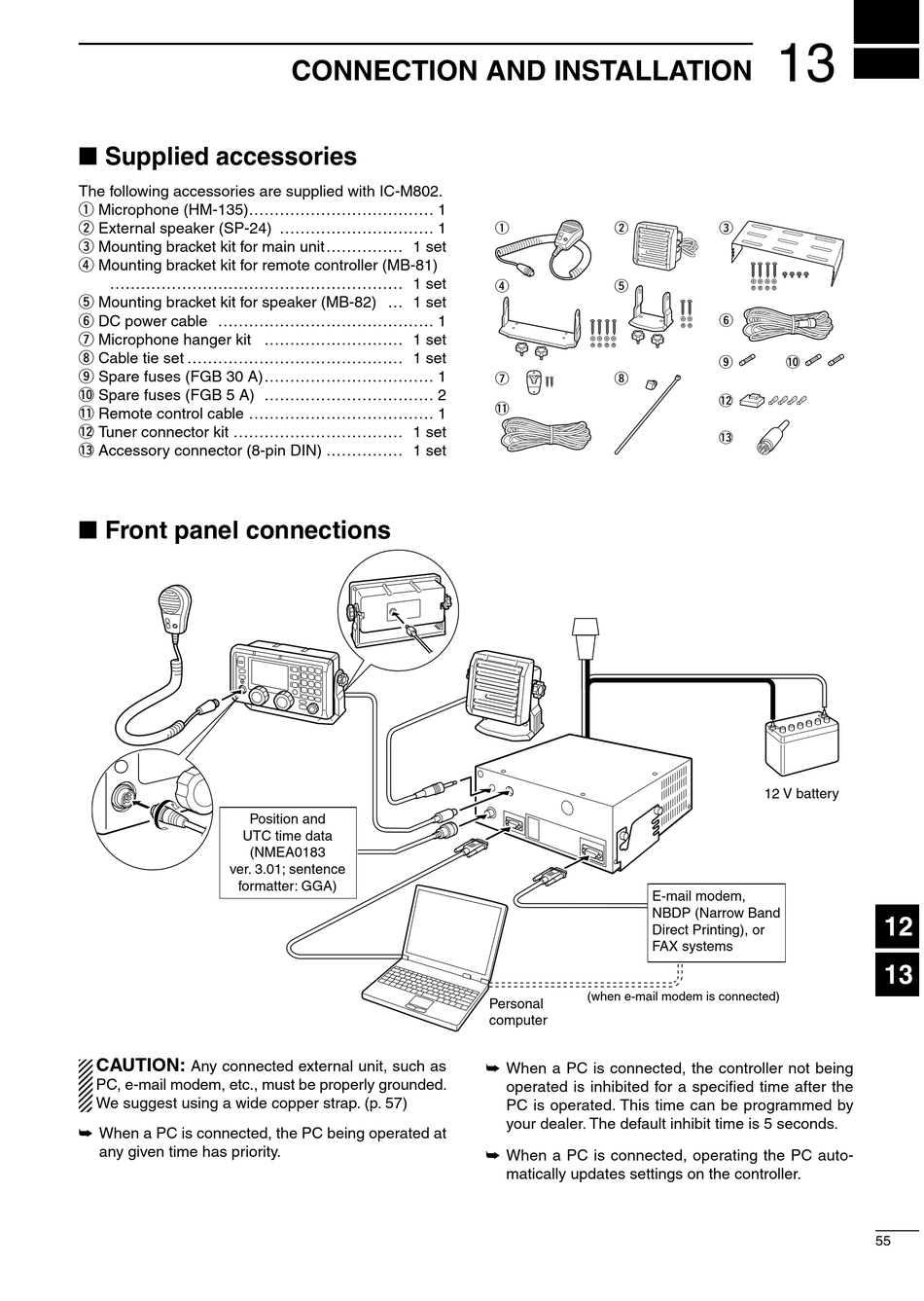

■ Supplied accessories

The following accessories are supplied with IC-M802.
q Microphone (HM-135) ������������ 1
w External speaker (SP-24) ���������� 1
e Mounting bracket kit for main unit ����� 1 set
r Mounting bracket kit for remote controller (MB-81)
������������������� 1 set
t Mounting bracket kit for speaker (MB-82) � 1 set
y DC power cable �������������� 1
u Microphone hanger kit ��������� 1 set
i Cable tie set �������������� 1 set
o Spare fuses (FGB 30 A) ����������� 1
!0 Spare fuses (FGB 5 A) ����������� 2
!1 Remote control cable ������������ 1
!2 Tuner connector kit ����������� 1 set
!3 Accessory connector (8-pin DIN) ����� 1 set

■ Front panel connections

Position and
UTC time data
(NMEA0183
ver. 3.01; sentence
formatter: GGA)
CAUTION:
Any connected external unit, such as
PC, e-mail modem, etc., must be properly grounded.
We suggest using a wide copper strap. (p. 57)
➥ When a PC is connected, the PC being operated at
any given time has priority.

CONNECTION AND INSTALLATION

q w
r t
u i
!1
E-mail modem,
NBDP (Narrow Band
Direct Printing), or
FAX systems
(when e-mail modem is connected)
Personal
computer
➥ When a PC is connected, the controller not being
operated is inhibited for a specified time after the
PC is operated. This time can be programmed by
your dealer. The default inhibit time is 5 seconds.
➥ When a PC is connected, operating the PC auto-
matically updates settings on the controller.
13
e
y
o !0
!2
!3
12 V battery
12
13
55
