Table of Contents
Bookmarks
Table of Contents
Table of Contents
Pog
Main Features
Tools for Overhauling
Description of Engine
Removal of
Engine Overhaul
Stripping of Engine
Rocker Box Covers Cylinder Heads Valves - Guides - Springs
Stripping
Removal of Springs and Valves
Inspection and Overhaul of Cylinder Heads
Inspection and Overhaul of Valve Guides
Valves-Valve Guides Coupling Data
Inspection and Overhaul of Valve Seats in Cylinder Heads
Inspection of Valves
Inspection of Valve Springs
Valves Sealing Lest
Assembling of Cylinder Heads on Cylinders
Cylinders Wear Check
Selection of Cylinders Diameter
Pistons
Selection of Piston Diameter
Piston Rings and Scrapers-Piston Slots Height Clearance
Scrapers
Piston Ring and Oil Scrapers Clearance
Fitting of Piston Pins
Con - Rods - Crankshaft - Main Bearing
Con-Rods
Thickness 01 Big End Bearings
Diameter of Crankshaft Pin
Small End Bushing
Checking Weights for Engine Balancing
Checking Parauelism of End Axis
Fitting up Con-Rods on Crankshaft
Crankshaft
Diameter of Main Journal, Flywheel Side
Diameter of Main Journal, Timing Side
I/O of Main Bearing, Flywheel Side
Flywheel Side Flange Complete with Main Bearing
Seal Ring for Flywheel Side Flange . ']9
Timing Side Flange C/W Main Bearing
Timing Cover
Timing Cover Seal Ring
Crankcase
Inspection and Overhaul of Crankcase
Wear Check of Tappet Guides in Crankcase
Summing up of Data Pertaining to Crank Mechanism Parts
Timing Data
Camshaft
Checks
Tappets
Coupling Data of Tappets and Tappet Guides in
Push Rods
Rockers
Coupling Data of Rocker Arms and Splindles
Tappet Clearance Adjustment
Valve Timing
Summing up of Data Pertaining to Timing Parts
Engine Lubrication
Description
Oit Pump
Inspection and Checks
Oit Cleaner
Oit Piping
Pressure Solenoid
Oit Breather
Oit Pressure Gauge
Engine Assembling
Engine Feeding
Fuel Tank
Air Cleaner on Carburetors
Carburetors
Standard Carburetor Settings
Idling Speed Adjustment
Stripping of Carburetor
Servicing of Carburetor
Engine Brake Test
Clutch
Removal of Clutch Assembly
Checking Clutch Springs
Checking Pressure Plate
Checking Driven Plates
Checking Intermediate Plate
Checking S1Arting Ring Gear
Clutch Assembling Operation
Clutch Control
Checking Clutch Control
Checking Clutch Operating Lever on Gearbox
Outer Body
Cage C/W Balls
Pressure Rod Cap
Outer Body Seal Ring
Clutch Adjustment
Gear Box
Gear Box Description
Gear Box Control
Gear Box Stripping
Gear Box
Gear Box Cover
Check and Overhaul of the Gear Box Unit Parts
Gearbox and Cover
Seal Rings
Ball Bearings and Roller Bearings
Mainshaft
Layshaft
Fitting Clearance between Gear Bushings and Layshafl
Layshaft Gears
Fitting Clearance between Bushings and Gears on Layshaft
Sliding Muff
Clutch Shaft
Advertisement
Quick Links
Download this manual

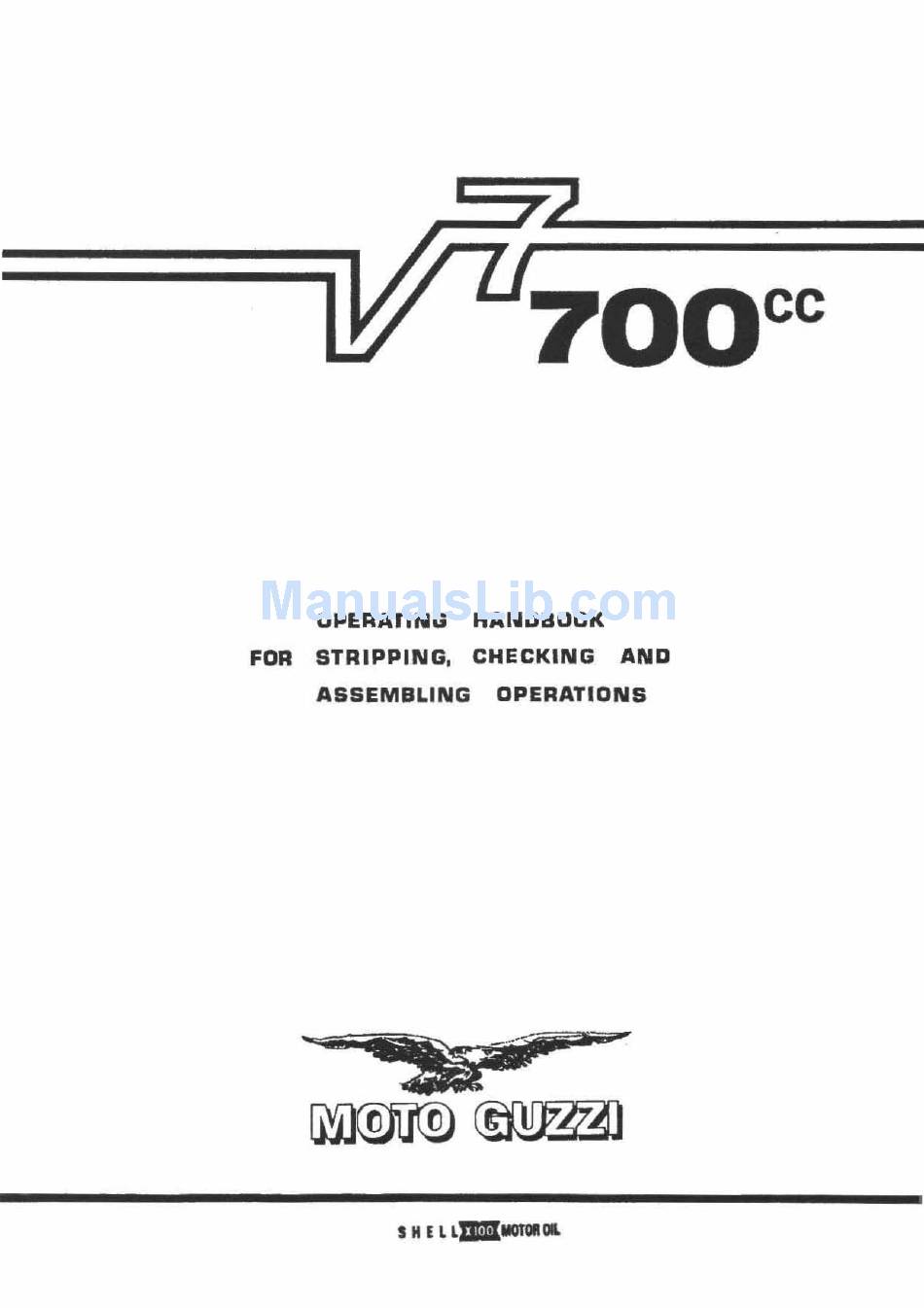

700
