Encore ENDSL-4R5G User Manual

Hide thumbs Also See for ENDSL-4R5G:
Table of Contents

Advertisement

Quick Links

Download this manual

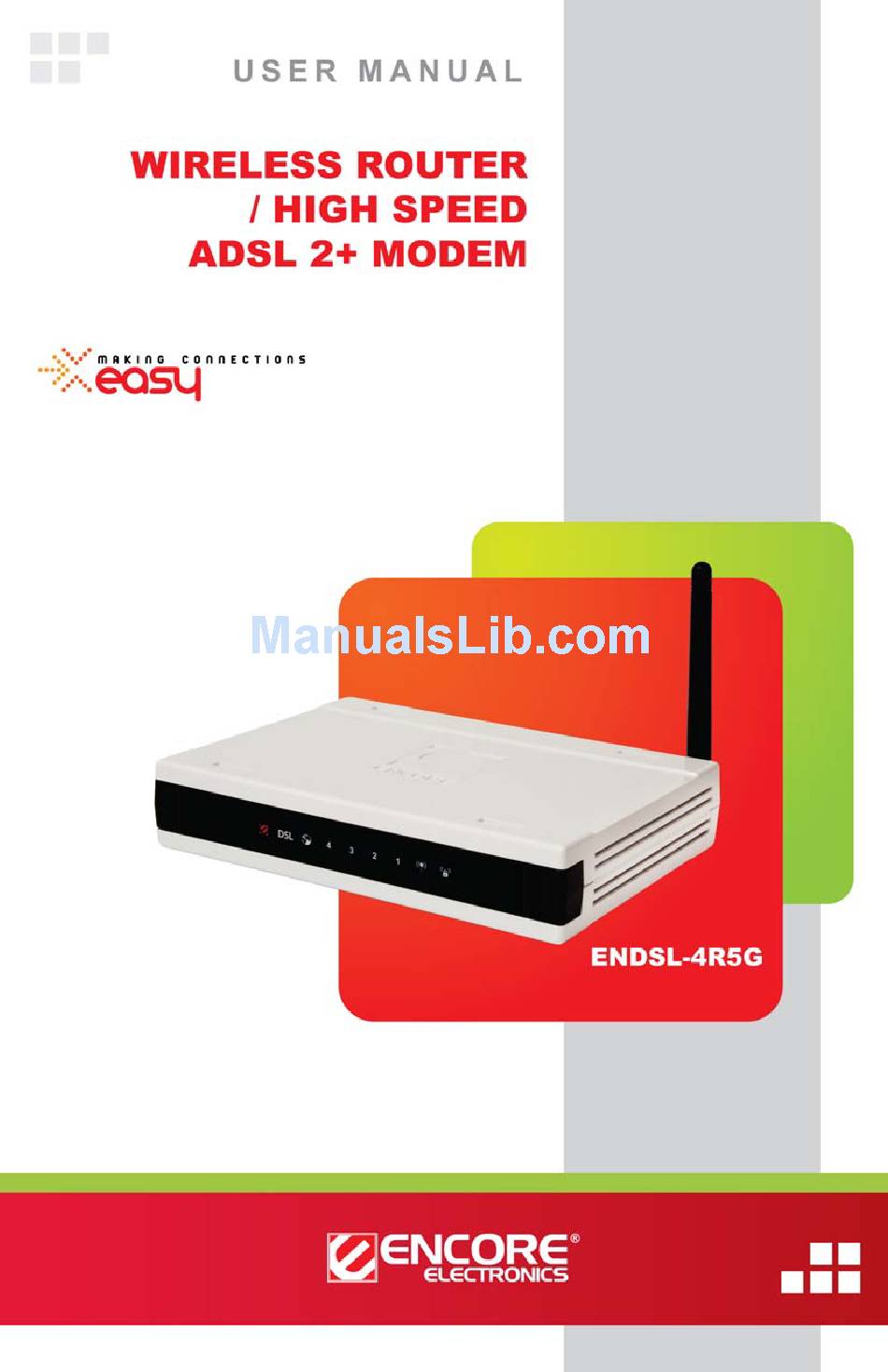

–© 2010 Encore Electronics, Inc. All rights reserved.COVER
© 2010 Encore Electronics, Inc.
Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
All trademarks and brand names are the properties of their respective holders.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENDSL-4R5G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Encore ENDSL-4R5G

Summary of Contents for Encore ENDSL-4R5G

  • Page 1 –© 2010 Encore Electronics, Inc. All rights reserved.COVER © 2010 Encore Electronics, Inc. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders.

  • Page 2: Table Of Contents

    3.1.6 Mac System.................... 27 3.2 C TCP/IP C ............28 HECKING THE ONFIGURATION 3.2.1 Windows ME/98 ..................28 3.2.2 Windows 2000 ..................29 3.2.3 Windows XP/Vista/7................30 3.2.4 Linux System..................31 CHAPTER 4 ACCESS THE WEB CONFIGURATION ......32 www.encore-usa.com...
  • Page 3 4.4.3 WLAN ....................62 4.5 S ......................72 ERVICE 4.5.1 DNS ....................... 72 4.5.2 Firewall ....................73 4.5.3 UPnP ..................... 80 4.5.4 IGMP Proxy ..................81 4.5.5 TR069 ....................82 4.5.6 ACL ....................... 83 4.6 A ....................... 86 DVANCE www.encore-usa.com...
  • Page 4 Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders. © 2010 Encore Electronics, Inc. All rights reserved. www.encore-usa.com...

  • Page 5: Chapter 1 Introduction

    Chapter 1 Introduction The ENDSL-4R5G Wireless Router / High Speed ADSL 2+ Modem is a highly integrated wireless Internet gateway device. And, it is fully compliant with ADSL/2/2+, IEEE 802.3/3u and IEEE 802.11b/g specifications. It supports one ADSL/2/2+ modem router for high speed ADSL/2/2+ connection to the DSL telephone line with downstream/upstream data rates up to 24Mbps and 1Mbps for Internet access, four 10/100Mbps Fast Ethernet ports and one IEEE 802.11g/b 54Mbps wireless Access...

  • Page 6: Leds And Interfaces

    Data is being transmitted in the LAN or Internet 4/3/2/1 Green Blinks data is being transmitted in the bridge mode. The LAN interface is not connected. The WLAN connection has been activated. Green Blinks Data is being transmitted in the WLAN. The WLAN connection is not activated. www.encore-usa.com...

  • Page 7: Features

    WPS negotiation. Power switch, power on or power off the device. 1.3 Features  Compliant to the most updated ADSL2/2+ standards  Support ADSL2+ downstream/upstream data rate up to 24M/1Mbps  IEEE 802.11g WLAN supports up to 54Mbps transmission rate www.encore-usa.com...

  • Page 8: Applications

     Support IEEE802.3x flow control for full duplex and back pressure flow control for half duplex  Support MDI/MDI-X auto cross over  IEEE 802.11b/g WIRELESS  IEEE 802.11b/g standards compliant  Frequency band: 2.4 GHz (ISM frequency bands) www.encore-usa.com...
  • Page 9 RFC 2516 PPPoE  RFC2225/RFC1577 IPoA  RFC 2684/1483 Bridged/Routed/MER  Support transparent bridging (IEEE 802.1D)  Dynamic and static routing (RIP v1/v2)  DHCP server, relay and client  NAT/NAPT with extensive ALG support  Support DNS proxy www.encore-usa.com...
  • Page 10 Weight : 292 grams  HARDWARE INTERFACE  One 2.4GHz antenna connector  One RJ-11 ADSL port  Four RJ-45 LAN ports  One DC power jack for 12 V DC/800mA power adapter  One reset button for factory default setting recovery www.encore-usa.com...

  • Page 11: System Requirements

    Browser: Internet Explorer® 5.0 or above or equivalent  Network Adapter: 10/100 Ethernet adapter or wireless 802.11b/g adapter  CD-ROM drive 1.7 Package Contents  One ENDSL-4R5G device  One DC power adapter  One splitter (optional)  One QIG (Quick Installation Guide) ...

  • Page 12: Chapter 2 Hardware Installation

    2.1 Connection with no telephone set installed before splitter Figure 1 displays the application diagram for the connection of the router, computer, splitter and the telephone sets, when no telephone set is placed before the splitter. Figure 1 Connection diagram (Without connecting telephone set before the splitter) www.encore-usa.com...

  • Page 13: Connection With Telephone Set Installed Before Splitter

    Internet access, or slow connection speed. If you really need to add a telephone set before the splitter, you must add a micro-filter before a telephone set. Do not connect several telephones before the splitter or connect several telephones with the micro-filter. www.encore-usa.com...

  • Page 14: Chapter 3 Setting Up The Tcp/Ip Properties

    DHCP client to get the IP address information automatically from the DSL router device. 3.1.1 Windows ME/98 The following describes the operation procedures in Windows ME and Windows 98. Step 1 Choose Start > Settings > Control Panel. The page as shown in the following figure appears. www.encore-usa.com...
  • Page 15 Step 2 Double-click the Network icon. Step 3 In the Network window, click the Configuration tab, and select TCP/IP of the installed NIC. Then click Properties. www.encore-usa.com...
  • Page 16 In the TCP/IP Properties window, click the IP Address tab, and select Obtain an IP address automatically. Step 5 In the TCP/IP Properties window, click the Gateway tab. In the window that is shown, delete all the previous settings. www.encore-usa.com...

  • Page 17: Windows 2000

    In the TCP/IP Properties window, click the DNS Configuration tab, and select Disable DNS. Step 7 After setting, click OK. 3.1.2 Windows 2000 The following describes the operation procedures in Windows 2000. Step 1 Choose Start > Settings > Control Panel. The page as shown in the following figure appears. www.encore-usa.com...
  • Page 18 Step 2 Double-click the Network and Dial-up Connections icon. Step 3 Right-click the Local Area Connection icon, and then select Properties in the menu. www.encore-usa.com...
  • Page 19 Step 4 In the Local Area Connection Properties window, select Internet Protocol (TCP/IP). Then click Properties. Step 5 Select Obtain an IP address automatically and Obtain DNS server address automatically. Step 6 After setting, click OK. www.encore-usa.com...

  • Page 20: Windows Xp

    3.1.3 Windows XP The following describes the operation procedures in Windows XP. Step 1 Choose Start > Control Panel > Switch to Classic View. The page as shown in the following figure appears. Step 2 Double-click the Network Connections icon. www.encore-usa.com...
  • Page 21 Step 3 Right-click the Local Area Connection icon, and then select Properties in the menu. Step 4 In the Local Area Connection Properties window, click the General tab, and select Internet Protocol (TCP/IP). Then click Properties. www.encore-usa.com...
  • Page 22 Step 5 Select Obtain an IP address automatically and Obtain DNS server address automatically. Step 6 After setting, click OK. www.encore-usa.com...

  • Page 23: Windows Vista/7

    3.1.4 Windows Vista/7 The following describes the operation procedures in Windows Vista/7 systems. Step 1 Choose Start > Control Panel. The page as shown in the following figure appears. Step 2 Double-click the Network and Sharing Center icon. www.encore-usa.com...
  • Page 24 Step 3 In the left pane, select Manage network connections, the page as shown in the following figure appears. Step 4 Right-click the icon of Local Area Connection, and then select Properties in the menu. www.encore-usa.com...
  • Page 25 Step 5 In the Local Area Connection Properties window, select Internet Protocol Version 4 (TCP/IPV4). Then click Properties. Step 6 Select Obtain an IP address automatically and Obtain DNS server address automatically. Step 7 After setting, click OK. www.encore-usa.com...

  • Page 26: Linux System

    Step 1 Select Network Connections from Preferences on System menu and the page as shown in the following figure appears. Then, select the Wired tab. Step 2 Select Auto eth0 item and click the Edit… button to edit the settings. www.encore-usa.com...
  • Page 27 Step 3 On the Edit Auto eht0 window, check the IPv4 Settings tab. Step 4 On the IPv4 Settings tab, select Automatic (DHCP) from the Method pull-down menu. Step 5 After setting, click Apply button. www.encore-usa.com...

  • Page 28: Mac System

    Click the Ethernet connected from connections list on left side and select Using DHCP setting in Configure IPv4 option on the right side. And, you would be able to see the IP Address assignment in the same window Step 3 Click Apply button to finish the settings. www.encore-usa.com...

  • Page 29: Checking The Tcp/Ip Configuration

    In the MS-DOS Prompt window, enter Winipcfg, and then press Enter. The page as shown in the following figure appears. All the Ethernet adapter information is displayed. You can check the configuration of the computer.  IP Address: 192.168.1.x  Subnet Mask: 255.255.255.0  Default Gateway: 192.168.1.1 www.encore-usa.com...

  • Page 30: Windows 2000

    In the prompt window, enter ipconfig/all, and then press Enter. The page as shown in the following figure appears. All the Ethernet adapter information is displayed. You can check the configuration of the computer.  IP Address: 192.168.1.x  Subnet Mask: 255.255.255.0  Default Gateway: 192.168.1.1 www.encore-usa.com...

  • Page 31: Windows Xp/Vista/7

    All the Ethernet adapter information is displayed. You can check the configuration of the computer.  IP Address: 192.168.1.x  Subnet Mask: 255.255.255.0  Default Gateway: 192.168.1.1 Step 4 Enter Exit, and press Enter. Then the prompt window logouts. www.encore-usa.com...

  • Page 32: Linux System

    3.2.4 Linux System Step 1 Access the command line Terminal window from the Accessories sub-menu in the Applications menu. Step 2 Use “ifconfig” command to check the IP address assignment in the command line Terminal window. www.encore-usa.com...

  • Page 33: Access The Web Configuration

    In the Login page that is displayed, enter the user name and password. The router supports two-level user accounts for accessing.  The user name and password of the super user are admin and admin respectively.  The user name and password of the common user are user and user respectively. www.encore-usa.com...
  • Page 34 In the Web configuration page, you can click Apply Changes to save the settings temporarily. If you want to save the settings in this page permanently, click Save of Attention that appears at the bottom of the Web page after the configuration. www.encore-usa.com...

  • Page 35: Status

    Choose Status > LAN. The page that is displayed shows some basic LAN settings of the router. In this page, you can view the LAN IP address, DHCP server status, MAC address, and DHCP client table. If you want to configure the LAN network, refer to Chapter 04.4.1.1 LAN IP. www.encore-usa.com...

  • Page 36: Wlan

    Choose Status > WLAN. The page that is displayed shows some basic WLAN settings of the router. In this page, you can view basic status of wireless LAN (WLAN). If you want to configure the WAN network, refer to Chapter 00. www.encore-usa.com...

  • Page 37: Wan

    In this page, you can view basic status of WAN and DNS server. If you want to configure the WAN network, refer to chapter 4.4.2 WAN. 4.2.5 Port Mapping Choose Status > Port Mapping. In this page, you can view the mapping relation and the status of port mapping. www.encore-usa.com...

  • Page 38: Statistics

    4.2.6.2 ADSL Statistics Click ADSL Statistics, the page as shown in the following figure appears. In this page, you can view the ADSL line status, upstream speed, downstream speed, and other information. www.encore-usa.com...

  • Page 39: Arp Table

    4.2.7 ARP Table Choose Status > ARP Table. In this page, you can view MAC addresses of the router and the connected devices. www.encore-usa.com...

  • Page 40: Wizard

    Select the user name for accessing the router. Enter the password to which you want to change the old New Password password. The password can not contain space key, %, “, ? or &. Confirmed Password Enter the new password again. www.encore-usa.com...
  • Page 41 Enter the IP address of the specified time server manually. Interval Specify the interval that the router synchronizes the time with the server. Time Zone Select the time zone in which area you are from the drop-down list. GMT time It displays the Greenwich Mean Time (GMT). www.encore-usa.com...
  • Page 42 There are six protocols available: PPPoE, PPPoA, 1483 MER: DHCP, 1483 MER: Static IP, 1483 Bridged, and 1483 Routed. For example, please select Singapore and Infoserve Dial-up connection ADSL service from the corresponding drop-down lists. The page as shown in the following figure appears. www.encore-usa.com...

  • Page 43: Pppoe

    ATM network. Its valid value is in the range of 32 to 65535 (0 to 31 is reserved for local management of ATM traffic). In this example, VCI is set to 100. Enter the user name for PPPoE dial-up, which is provided by User Name your ISP. www.encore-usa.com...

  • Page 44: Pppoa

    Select PPPoA as the protocol, the page as shown in the following figure appears. For the parameters in this page, refer to the parameter description of PPPoE protocol. 4.3.3 1483 MER: DHCP Select 1483 MER: DHCP as the protocol, the page as shown in the following page appears. www.encore-usa.com...
  • Page 45 After entering correct VPI and VCI, DHCP automatically assigns the WAN IP address, gateway and DNS information to this device. www.encore-usa.com...

  • Page 46: 1483 Mer: Static Ip

    ATM network. Its valid value is in the range of 32 to 65535 (0 to 31 is reserved for local management of ATM traffic). In this example, VCI is set to 100. WAN IP Enter the IP address for WAN connection, which is provided by www.encore-usa.com...

  • Page 47: 1483 Bridged

    Server 4.3.5 1483 Bridged Select 1483 Bridged as the connection type, the page as shown in the following figure appears. 4.3.6 1483 Routed Select 1483 Routed as the connection type, the page as shown in the following figure appears. www.encore-usa.com...
  • Page 48 DNS server which are provided by your ISP. For parameters in this page, refer to the parameter description of 1483 MER: Static IP. After setting, click Next, the page as shown in the following page appears. The following table describes the parameters in this page: www.encore-usa.com...
  • Page 49 SSID. Enter a descriptive name that is used when the wireless client connecting to the router. By default, the SSID is ENDSL-4R5G. Configure the wireless encryption mode. You can choose None, WEP, WPA (TKIP), WPA (AES), WPA2 (AES), WPA2 (TKIP), or WPA2 Mixed.
  • Page 50 If you select it, you need to enter the pre-shared key in the (Pre-Shared Key) Pre-Shared Key field. For the parameters of WPA (AES), WPA2 (TKIP), WPA2 (AES), and WPA2 Mixed refer to the parameter description of WPA (TKIP). www.encore-usa.com...
  • Page 51 After finishing the configuration, click Next. The page as shown in the following figure appears. Click Back to modify the settings. Click Finish to take the settings into effect temporarily. Click Reset to cancel the settings. www.encore-usa.com...

  • Page 52: Network

    The default IP address is 192.168.1.1, which is the private local IP address of the router. By default, secondary IP is disabled. Enable the option of secondary IP if necessary, the page as shown in the following figure appears. www.encore-usa.com...
  • Page 53 (DHCP proxy) where it relays IP address assignment from an actual real DHCP server to clients. You can enable or disable DHCP server or DHCP proxy. There are three DHCP modes available: DHCP Server, DHCP Relay, and None. The following describes them respectively. www.encore-usa.com...
  • Page 54 Enter the domain name if you know. If you leave this blank, the domain name obtained by DHCP from the ISP is used. You Domain Name must enter host name (system name) on each individual computer. The domain name can be assigned from the router through the DHCP server. www.encore-usa.com...
  • Page 55 Click it to close this page. Click Set VendorClass IP Range in the DHCP Mode page, the page as shown in the following figure appears. In this page, you can configure the IP address range based on the device type. www.encore-usa.com...
  • Page 56 None Select None from the DHCP Mode drop-down list, the page as shown in the following figure appears. www.encore-usa.com...
  • Page 57 If set to DHCP Relay, the router acts a surrogate DHCP Server DHCP Mode and relays the DHCP requests and responses between the remote server and the clients. Relay Server Enter the DHCP server address provided by your ISP. www.encore-usa.com...

  • Page 58: Wan

    Click it to refresh this page. DHCP Static IP Table It shows the assigned IP addresses based on the MAC addresses. 4.4.2 WAN Choose Network > WAN. The WAN page that is displayed contains WAN, ATM Setting, and ADSL Setting. www.encore-usa.com...
  • Page 59 You can select LLC or VC-Mux mode. You can select 1483 Bridged, 1483 MER, PPPoE, Channel Mode PPPoA, or 1483 Routed mode. Select it to enable network address port translation Enable NAPT (NAPT). If you do not select it and you want to access www.encore-usa.com...
  • Page 60 After setting, click it to take this PVC setting into effect. This table shows the existed PVC settings. It shows Interface name, channel mode, VPI/VCI, Current ATM VC Table encapsulation mode, local IP address, remote IP address and other information. The maximum item of this table is eight. www.encore-usa.com...
  • Page 61 You can select AUTO, CHAP, or PAP. Connection Type You can select Continuous, Connect on Demand, or Manual. Idle Time (s) If the connection type is set to Connect on Demand, you need to enter the idle timeout time. Within the www.encore-usa.com...
  • Page 62 The following table describes the parameters in this page: Field Description The virtual path identifier of the ATM PVC. The virtual channel identifier of the ATM PVC. The QoS category of the PVC. You can select UBR, CBR, rt-VBR, or nrt-VBR. www.encore-usa.com...

  • Page 63: Wlan

    G.lite, G.Dmt, T1.413, ADSL2, ADSL2+, Annex L and M. The router negotiates the modulation modes with the DSLAM. 4.4.3 WLAN Choose Network > WLAN. In the WLAN page that is displayed, it contains Basic Setting, Security, Access Control, Multi-SSID, Advanced Setting, and WPS. www.encore-usa.com...

  • Page 64: Basic Setting

    Select the country/Area where you are from the Country/Area drop-down list to meet the RF regulations. A channel is the radio frequency used by 802.11b/g Channel Number wireless devices. There are 11 channels (from 1 to 11) www.encore-usa.com...
  • Page 65 Show Active Clients are connected to the router. Click Show Active Clients, the page as shown in the following figure appears. This table shows information of the wireless clients that connect to the router, including MAC addresses, transmitted packets, received packets. www.encore-usa.com...
  • Page 66 It is available when you set the encryption mode to WEP. Set WEP Key Click it, the Wireless WEP Key Setup page appears.  Select Personal (Pre-Shared Key), enter the WPA Authentication Mode pre-shared key in the Pre-Shared Key field. www.encore-usa.com...
  • Page 67  If you select 64-bit and ASCII (5 characters), enter any Encryption Key 1 5 ASCII characters. to Key 4  If you select 64-bit and Hex (10 characters), enter any 10 hexadecimal characters.  If you select 128-bit and ASCII (13 characters), enter any 13 ASCII characters. www.encore-usa.com...

  • Page 68: Access Control

    Control List can access the router. Select Deny Listed from the Wireless Access Control Mode drop-down list to enable the black list function. The devices whose MAC addresses are listed in the Current Access Control List are blocked to access the router. www.encore-usa.com...
  • Page 69  Select Enable, the wireless client searches the router Broadcast SSID through broadcasting SSID.  Select Disable to hide SSID, the wireless clients can not search the SSID. Authentication Select the authentication mode of the router. You can select Type Open System, Shared Key, or Auto. www.encore-usa.com...

  • Page 70: Advanced Setting

    The following table describes the parameters in this page: Field Description Select the router operating in the open system or encryption authentication. You can select Open System, Authentication Shared Key, or Auto.  In the open system, the wireless client can directly www.encore-usa.com...
  • Page 71 Disable WPS: Select it to disable WPS. You need to enable WPS if you want to configure the parameters in this page. There are three methods for WPS authentication, you can choose one of them:  Press the WLAN/WPS button on the rear panel of the router for 3 seconds or more than 3 seconds. www.encore-usa.com...
  • Page 72 The wireless client generates PIN. In this page, enter PIN of the wireless client in the Client PIN Number field, then click Start PIN to establish the connection. Note: The wireless client establishes the connection with the router through WPS negotiation. The wireless client must support WPS. www.encore-usa.com...

  • Page 73: Service

    Select it, the router accepts the first received DNS assignment Obtain DNS from one of the PPPoA, PPPoE or MER enabled PVC(s) Automatically during the connection establishment. Set DNS Select it and then enter the primary and optional secondary Manually DNS server IP addresses. www.encore-usa.com...

  • Page 74: Firewall

    Enter the email provided by DDNS provider. Enter the key provided by DDNS provider. 4.5.2 Firewall Choose Service > Firewall. The Firewall page that is displayed contains IP/Port Filter, MAC Filter, URL Blocking, Virtual Server, DMZ Setting, ALG Setting, and Anti-DoS functions. www.encore-usa.com...
  • Page 75 Click IP/Port Filter, the page as shown in the following figure appears. Entries in the table are used to restrict certain types of data packets from your local network to the Internet through the gateway. IP/Port filter is helpful in securing or restricting your local network. www.encore-usa.com...

  • Page 76: Mac Filter

    Click MAC Filter, the page as shown in the following figure appears. Entries in the table are used to restrict certain types of data packets from your local network to the Internet through the gateway. MAC filter is helpful in securing or restricting your local network. www.encore-usa.com...
  • Page 77 Click it to add the keyword to the URL Blocking Table. Select a row in the URL Blocking Table and click it to delete Delete the row. Blocking A list of the URL (s) to which access is blocked. Table www.encore-usa.com...

  • Page 78: Virtual Server

    Enter the access port in the WAN. LAN Open Port Enter the port number of the specified service type. Enter the IP address of the virtual server. It is in the same LAN IP Address network segment with LAN IP address of the router. www.encore-usa.com...
  • Page 79 The procedure for configuring DMZ is as follows: Step 1 Select Enable DMZ to enable DMZ. Step 2 Enter a local IP address of the DMZ host in your LAN. Step 3 Click Apply Changes to save the settings in this page temporarily. www.encore-usa.com...
  • Page 80 4.5.2.6 ALG Setting Click ALG Setting, the page as shown in the following figure appears. www.encore-usa.com...

  • Page 81: Upnp

    DoS attack. 4.5.3 UPnP Choose Service > UPnP, the page as shown in the following figure appears. This page is used to configure universal plug-n-play (UPnP). The system acts as a UPnP device in your LAN after you enable it. www.encore-usa.com...

  • Page 82: Igmp Proxy

    Choose Service > IGMP Proxy, the page as shown in the following figure appears. IGMP proxy enables the system to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces. The system acts as a proxy for its hosts after you enable it. www.encore-usa.com...

  • Page 83: Tr069

    The URL of the ACS to connect to. User Name The user name for logging in to the ACS. Password The password for logging in to the ACS. Periodic Inform Enable Select Enable to periodically connect to the ACS www.encore-usa.com...

  • Page 84: Acl

    LAN or WAN to access the router. You can configure the IP address for access control list (ACL). If ACL is enabled, only the effective IP address in the ACL can access the router. www.encore-usa.com...
  • Page 85 After setting the parameters, click it to add the Current ACL Table. Reset Click it to refresh this page. Set direction of the data packets to WAN, the page as shown in the following figure appears. www.encore-usa.com...
  • Page 86 You can select the following services from WAN: Web, Services Allowed Telnet, FTP, TFTP, SNMP, or PING. You can also select all the services. After setting the parameters, click it to add an entry to the Current ACL Table. Reset Click it to refresh this page. www.encore-usa.com...

  • Page 87: Advance

    Show MACs Click it to show a list of the learned MAC addresses for the bridge. Click Show MACs, the page as shown in the following figure appears. This table shows a list of learned MAC addresses for this bridge. www.encore-usa.com...

  • Page 88: Routing

    Select the interface for the specified route. Add Route Click it to add the new static route to the Static Route Table. Select a row in the Static Route Table and modify the Update parameters. Then click it to save the settings in this page www.encore-usa.com...
  • Page 89 Click RIP, the page as shown in the following figure appears. If the device is used as a RIP-enabled router to communicate with other devices by using Routing Information Protocol (RIP), you need to enable RIP. In this page, you can configure the parameters of RIP, including the interface, received version, transmitted version. www.encore-usa.com...

  • Page 90: Port Mapping

    A list of the router interfaces that enable RIP. List 4.6.3 Port Mapping Choose Advance > Port Mapping, the page as shown in the following figure appears. In this page, you can bind the WAN interface and the LAN interface into the same group. www.encore-usa.com...
  • Page 91 Select the interfaces from the WAN and LAN and bind the required interfaces into an interface group by clicking the arrow button. Step 4 Click Apply Changes to take the settings into effect. Note: The selected interfaces are removed from the original groups and added to a new group. www.encore-usa.com...

  • Page 92: Qos

    TCP/UDP port number, source IP address, destination IP address, and other information. The procedure for configuring quality of service (QoS) is as follows: Step 1 Enable IP QoS and click Apply to enable IP QoS. Step 2 Click Add Rule to add a new IP QoS rule. www.encore-usa.com...
  • Page 93 Enter the subnet mask of the source IP address. Destination IP Enter the IP address of the destination data packet. Destination Enter the subnet mask of the destination IP address. Mask Source Port Enter the port of the source data packet. www.encore-usa.com...

  • Page 94: Snmp

    Select all the rows in the QoS Rule List and click it to delete the rows. 4.6.5 SNMP Choose Advance > SNMP, the page as shown in the following figure appears. In this page, you can configure the parameters of Simple Network Management Protocol (SNMP). www.encore-usa.com...

  • Page 95: Others

    The network administrators must use this password (Read-Write) to configure the information of the router. 4.6.6 Others Choose Advance > Others, the page as shown in the following figure appears. In this page, you can configure half bridge. www.encore-usa.com...
  • Page 96 www.encore-usa.com...

  • Page 97: Admin

     Save the current configuration: Save the current configuration, and then the router Reboot from automatically reboots.  Restore to the factory default configuration: Reset to the factory default configuration, and then the the router automatically reboots. Reboot Click it to reboot the router. www.encore-usa.com...

  • Page 98: Upgrade

    The following table describes the parameter and buttons in this page: Field Description Select File Click Browse to select the firmware file. After selecting the firmware file, click it to starting Upload upgrading the firmware file. Reset Click it to start selecting the firmware file again. www.encore-usa.com...
  • Page 99 File save the configuration file of the router. Load Settings from Click Browse to select the configuration file. File After selecting the configuration file of the router, click it to Upload start uploading the configuration file of the router. www.encore-usa.com...

  • Page 100: System Log

    Choose Admin > Password, the page as shown in the following figure appears. In this page, you can change the password of the user. By default, the user name and password of the super user are admin and admin respectively. The user name and password of the common user are user and user respectively. www.encore-usa.com...

  • Page 101: Time Zone

    The following table describes the parameters in this page: Field Description System Time Set the system time manually. NTP Configuration Enable or disable NTP. You need to enable NTP if you State want to configure the parameters of NTP. www.encore-usa.com...
  • Page 102 Field Description Primary Server Set the primary NTP server manually. Secondary Server Set the secondary NTP server manually. Select the time zone in which area you are from the Time Zone drop-down list. www.encore-usa.com...

  • Page 103: Chapter 5 Diagnostic

    Choose Diagnostic > ATM Loopback, then the page as shown in the following figure appears. In this page, you can use VCC loopback to check the connectivity of the VCC. The ATM loopback test is useful for troubleshooting problems with the DSLAM and ATM network. www.encore-usa.com...

  • Page 104: Adsl

    After selecting the flow type and entering the VPI and VCI, then click Start to start testing. 5.3 ADSL Choose Diagnostic > ADSL, the page as shown in the following figure appears. In this page, you can diagnose the ADSL tone. Click Start to start diagnosing ADSL tone. www.encore-usa.com...

  • Page 105: Diagnostic Test

    Choose Diagnostic > Diagnostic Test, the page as shown in the following figure appears. In this page, you can test the ADSL connection. You can also view the LAN connection, WLAN connection, ADSL connection, and Internet connection. Click Run Diagnostic Test to start testing. www.encore-usa.com...

  • Page 106: Appendix A Frequently Asked Questions

    (DMZ) setting. Refer to Advance – Port Forwarding section for the setting detail. I need to upgrade the firmware. Answer. In order to upgrade the firmware with the latest features, check with your local dealer or ISP for technical support. www.encore-usa.com...
  • Page 107 TCP/IP ports to be opened. It is recommended that you set your computer with static IP address if you want to use DMZ features. And, be aware to add extra protection and security to the computer exposed. www.encore-usa.com...
  • Page 108 54Mbps transmission speed in the 2.4 GHz band. (18) What is BSS ID? Answer. A specific Ad-Hoc LAN is called a Basic Service Set (BSS). Computers in a BSS must be configured with the same BSS ID. www.encore-usa.com...
  • Page 109 LAN systems. (22) Where could I get more product information or technical supports? Answer. Please check the Support section on our web site http://www.encore-usa.com. www.encore-usa.com...

  • Page 110: Appendix B Troubleshooting Guide

    Check the following: Make sure that the LAN cables are securely connected to the 10/100Base-T port. Make sure that you are using the correct cable type for your Ethernet equipment. Make sure the computer's Ethernet port is configured for auto-negotiation. www.encore-usa.com...
  • Page 111 Enter a new “Password” and new “Username” in the “Username” and “Password” fields, and enter the same password in the second password field to confirm the password. Click “Submit” after setup then click SAVE button to activate your setting. www.encore-usa.com...
  • Page 112 Check whether you are using the correct LAN cable. Check your Ethernet adapter installation and configurations. Verify that the IP addresses for your Wireless ADSL 2+ Modem Router and your workstations are correct and the IP addresses are on the same subnet. www.encore-usa.com...
  • Page 113 Check whether your Wireless LAN settings (e.g. SSID, Channel Number) are the same as your Wireless ADSL 2+ Modem Router. Check whether you have used the same WEP Key Encryption for both your Wireless LAN client and your Wireless ADSL 2+ Modem Router www.encore-usa.com...

  • Page 114: Appendix C Glossary

    WAN (ADSL) side and the LAN (Ethernet) side, i.e., to store and forward. CBR: Constant Bit Rate. A constant transfer rates that is ideal for streaming (executing while still downloading) data, such as audio or video files. www.encore-usa.com...
  • Page 115 DNS: Domain Name System: A method to locate and translate Domain Names into Internet Protocol (IP) addresses, where a Domain Name is a simple and meaningful name for an Internet address. www.encore-usa.com...
  • Page 116 Full Duplex: Data can be transmitted and received on the same signal medium and at the same time. Full Duplex lines are bidirectional. G.dmt: Formally G.992.1, the G.dmt is a form of ADSL that uses Discrete Multi-Tone (DMT) technology. G.dmt incorporates a splitter in its design. www.encore-usa.com...
  • Page 117 MAC Address: Media Access Control Address: A unique hardware number on a network interface adapter of computer or device that identifies it and relates it to the IP address of that device. MC: Multicast: Communication involving a single sender and multiple specific receivers in a network. www.encore-usa.com...
  • Page 118 Proxy: A device that closes a straight connection from an outside network (WAN) to an inside network (LAN). All transmissions must go through the proxy to get into or out of the LAN. This makes the internal addresses of the devices in the LAN private. www.encore-usa.com...
  • Page 119 IP address to determine whether to accept or reject the packet. TCP: Transfer Control Protocol: Works together with Internet Protocol for sending data between computers over the Internet. TCP keeps track of the packets, making sure that they are routed efficiently. www.encore-usa.com...
  • Page 120 VC (Virtual Circuit) connecting the two ATM stations (each protocol must be carried over a separate VC). VPI: Virtual Path Identifier: Virtual path for cell routing indicated by an eight bit field in the ATM cell header. www.encore-usa.com...
  • Page 121 WFQ: weighted fair queuing. It is a data packet scheduling technique which allows different data flows to be queued in different priorities. WPA: Wi-Fi Protected Access (WPA) is a specification of standards-based, interoperable security enhancements that increase the level of data protection and access control for existing and future wireless LAN systems. www.encore-usa.com...

  • Page 122: Appendix D Regulatory Notes And Statements

    This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of this device. www.encore-usa.com...
  • Page 123 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. www.encore-usa.com...
  • Page 124 Trademarks All products, companies and brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. www.encore-usa.com...
  • Page 125 * Local tech-support numbers are provided in selectively countries. Service may change without prior notice. Please visit www.encore-usa.com for more details. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
