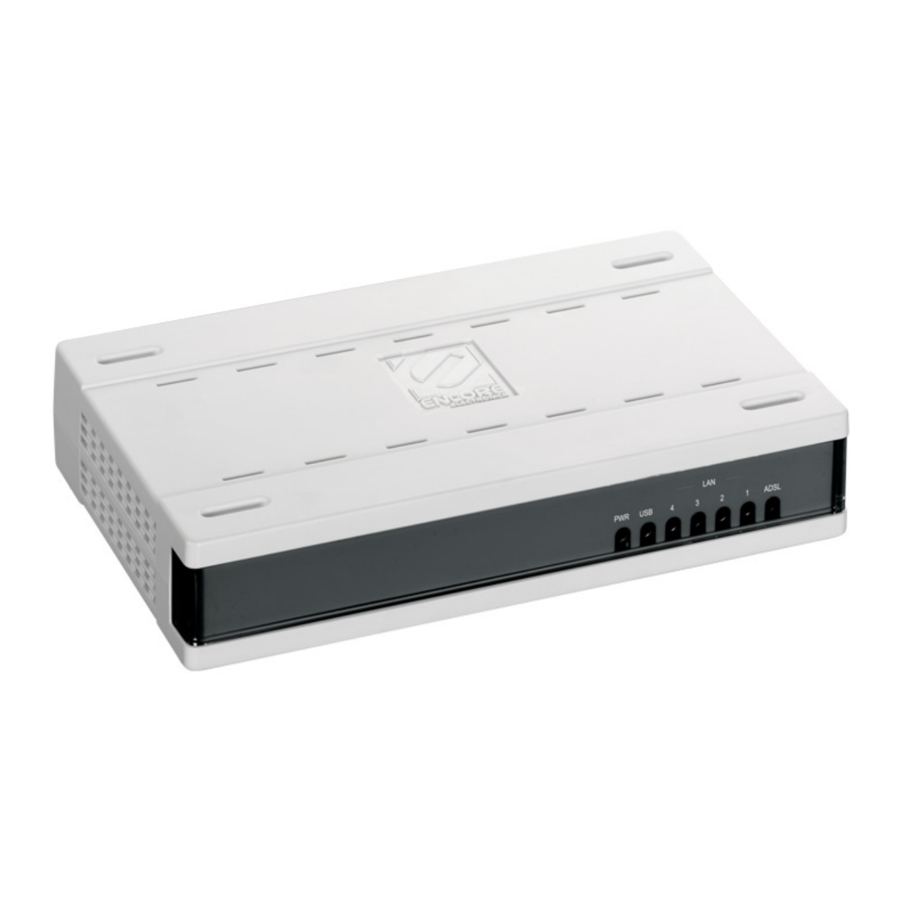

ADSL2+ Modem with 4 Port Ethernet Router

ENDSL-A2+4R2 full rate ADSL2+ router is a full featured ADSL router that

provides high-speed Internet access and Ethernet direct connections to individual

PCs or local area network with 10/100 Base-T Ethernet. ENDSL-A2+4R2 use

advanced ADSL chipset solution with complete set of industry standard features

for high-speed ADSL, ADSL2 and ADSL2+ Internet access. ENDSL-A2+4R2

offer easy installation and cost-effective connection for SOHO and residential

users. To benefit users' access to the Internet, 4-port 10/100Mbps Ethernet

switch hub is equipped with this ADSL router. Also the feature-rich routing

functions are seamlessly integrated to ADSL service for existing corporate or

home users.

Features:

Full rate operation with up to 24Mbps downstream data rate and up to 1Mbps

upstream data rate enables High-speed Internet access

Friendly GUI Configuration and Management

Ongoing feature enhancements through FTP / TFTP (Web-based) download

or upload of new firmware and configuration files

Provides ALG's to support most major applications, such as MSN Messenger,

CUSeeMe, ICQ, IRC, LDAP, PPTP, FTP, Quake, SIP, H.323, NetBios Over

ENDSL-A2+4R2

Table of Contents

Do you have a question about the ENDSL-A2+4R2 and is the answer not in the manual?

Page 1 ENDSL-A2+4R2 ADSL2+ Modem with 4 Port Ethernet Router ENDSL-A2+4R2 full rate ADSL2+ router is a full featured ADSL router that provides high-speed Internet access and Ethernet direct connections to individual PCs or local area network with 10/100 Base-T Ethernet. ENDSL-A2+4R2 use advanced ADSL chipset solution with complete set of industry standard features for high-speed ADSL, ADSL2 and ADSL2+ Internet access.
Page 2: Specifications
TCP/IP Enables end-to-end ATM support, which allows traffic management and QoS Built-in DHCP server automatically assigns IP addresses to all workstations on your LAN All management and monitoring can be done through Telnet session UPnP support Auto negotiating rate adaptation Specifications: ADSL Compliant: ‧...
Page 3 ‧ IP Multicast IGMP v1/v2 IP Management ‧ NAT (Network Address Translation) ‧ NAPT (Network Address and Port Translation) ‧ DHCP Server / Relay / Client (WAN Port) ‧ VPN (IP Sec, PPTP, L2TP) Pass-Through ‧ DNS Proxy ‧ Dynamic DNS, ‧...
Page 4 Power Adapter Power Adapter: Input 110 ± 10 or 230 ± 10 VAC, Output 12VDC 600m ‧ Dimensions (app) ‧ 155 mm (Length) x 101 mm (Width) x 32 mm (Height) Net Weight (app) ‧ 500 g Operating Temperature ‧ 0°C ~ 70°C Humidity ‧...
