Normal Ac Input, Bypass Ac, And Output Cables Installation; System Connections With Separate Normal And Bypass Ac Sources - MGE UPS Systems EX 11RT Installation And User Manual

2.8.4

System Connections with Separate Normal and Bypass AC Sources

CAUTION:

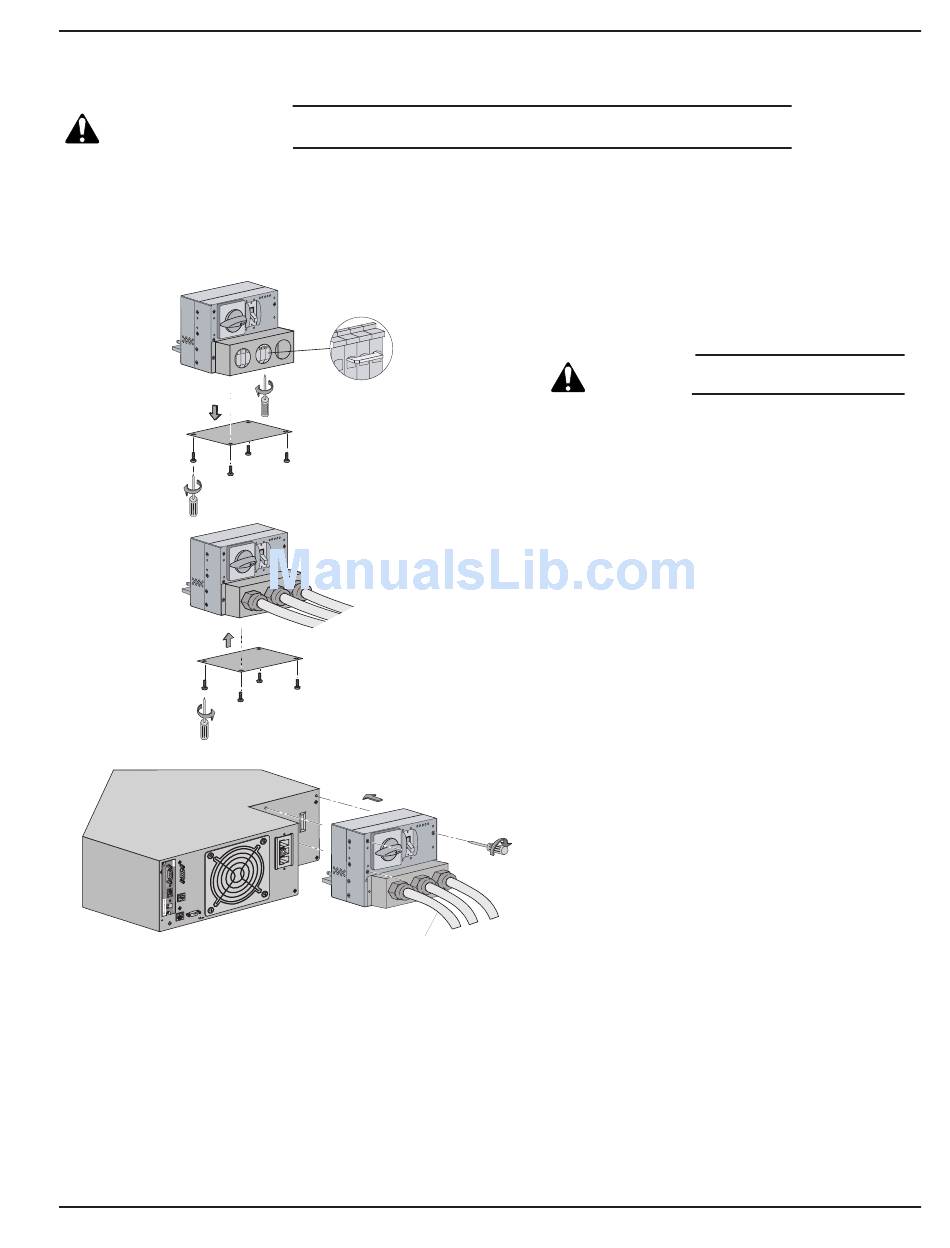

Figure 2-15: Normal AC Input, Bypass AC, and Output Cables Installation.
3
86-86000-00 A01
This installation requires 2 AC input source with Line, Neutral plus Ground,
(200-240VAC). Neutral points are connected together inside the UPS.
1
OFF
O
L1
L3
2
OFF
O
Bypass
Normal
Output
4
OF F
O
To Step-Down
Transformer
(if applicable)
Proceed as follows:
1. Remove the cover plate under the I/O Box. Loosen
the terminal blocks L1 and L3, and remove the
jumper.
CAUTION:
2. See section 2.8.1 and I/O Box terminal diagram for
installation of Normal AC Input, Bypass
source, and Output cable with different wire style.
3. Reinstall the cover plate under the I/O Box with
four screws.
4. Secure the I/O Box to the power module using
three screws.
See section 2.8.3 for connecting EX RT
Transformer, if applicable.
Installation
Installation and User Manual
Always connect the
earth ground wire first.
