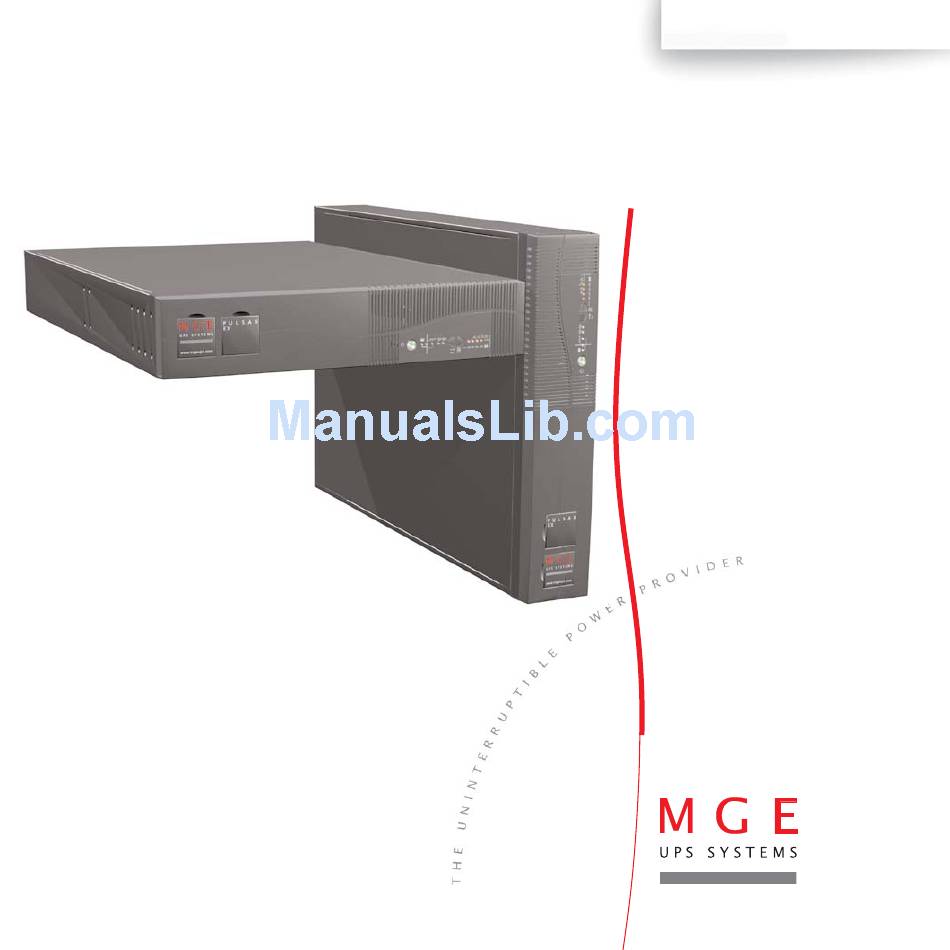

- Page 1 UPS SYSTEMS,INC. www.mgeups.com Pulsar EX 2200RT / 3200RT EXB 2200/3200 RT Installation and User Manual...
-
Page 2: Important Safety Instructions
Recycling of Pulsar EX RT at the end of its service life. To discover the entire range of MGE UPS SYSTEMS, Inc. products and the options available for the Pulsar EX RT range, we invite you to visit our web site at www.mgeups.com or contact your MGE UPS SYSTEMS, Inc. representative. -
Page 3: Special Precautions
CAUTION: Safety of persons The UPS has its own internal power source (the battery). Consequently, the power outlets may be energized even if the UPS is disconnected from the AC-power source. Dangerous voltage levels are present within the UPS. It should be opened exclusively by qualified service personnel. The UPS must be properly earthed. - Page 4 How to use this document Using this document Icon Usage Page 4 - 3400753300/AE Information may be found primarily by consulting: The contents, The index. WARNING: Eminent hazard to personnel or equipment, information must always be followed. CAUTION: Hazard to personnel or equipment, information that must always be followed. Notes, tips and information, help.
-
Page 5: Table Of Contents
Presentation System configurations ...7 Rack setup ...7 Tower setup ...7 Rear panel ...8 Pulsar EX 2200RT ...8 Pulsar EX 3200RT ...8 Pulsar EXB 2200/3200 RT ...8 Control panel ...9 Installation Unpacking ...10 Installation in rack position ...11 Installation in tower position ...12 Connection to the RS232 or USB communication port (optional) ...13... - Page 6 Contents Maintenance Troubleshooting ...20 Replacement of the battery modules ...22 Environment Appendices Technical characteristics ...25 Glossary ...26 Index ...27 Page 6 - 3400753300/AE ...24...
-
Page 7: Presentation
1.1 System configurations Rack setup 17.24 inches (19" Rack mount) Tower setup 1. Presentation 25.75 inches (EX 2200RT) 26.00 inches (EX 3200RT) P U L S A R www. mgeu ps.co Model Part Number Pulsar EX 2200RT 85220 Pulsar EX 3200RT... -
Page 8: Rear Panel
1. Presentation 1.2 Rear panel Pulsar EX 2200RT Pulsar EX 3200RT Pulsar EXB 2200/3200 RT Page 8 - 3400753300/AE L5-20P Plug INPUT CABLE L5-20R Receptacle OUTPUT CABLE L5-30P (Plug) INPUT CABLE L5-30R (Receptacle) OUTPUT CABLE Slot for communication-card option. RS232 communication port. -
Page 9: Control Panel
1.3 Control panel ON / OFF. Operation on battery power. Operation in ON-LINE mode (backup power available). Operation on bypass (no backup power available). Status of programmable outlet 2: Status of programmable outlet 1: Lamp test or buzzer OFF. Forced transfer to bypass and back by pressing button 3 times in less than 5 seconds. -
Page 10: Installation
2. Installation 2.1 Unpacking RS232 communication cable. USB communication cable. Telescopic rails for mounting in 19" bay with mounting hardware. CD-ROM with the Solution-Pac and UPS Driver software. Product documentation. Two supports for the upright position. Page 10 - 3400753300/AE... -
Page 11: Installation In Rack Position
2.2 Installation in rack position Follow steps A to D for rack mounting of the UPS on the rails. The rails and the necessary mounting hardware are supplied in the box along with the UPS (see item 32 on page 10). Stop-Notch Snap from inside of rails... -
Page 12: Installation In Tower Position
2. Installation 2.3 Installation in tower position Install the two supports for the upright position using provided hardware in the package. (see item 32 on page 10). Pull out the MGE Logo and Model plates, then rotate them as shown. Page 12 - 3400753300/AE P U L S A R... -
Page 13: Connection To The Rs232 Or Usb Communication Port (Optional)
30 or 31 to the RS232 2 or USB 3 communication port on the UPS. The UPS can now communicate with all MGE UPS SYSTEMS, Inc. supervision, set-up or safety software. It is not necessary to shut down the UPS to install the communication card: 1.Remove the slot 1 cover secured by... -
Page 14: Connections
2. Installation 2.6 Connections CAUTION: Check that the indications on the rating plate (on the back of the UPS), correspond to your AC-power system, and to the actual electrical consumption of all the equipment to be connected to the UPS. Page 14 - 3400753300/AE 1. -
Page 15: Operation
3.1 Start-up The protected equipment connected to the UPS can be energized, whether AC input power is available or not. BYPASS 3.2 LED indicators Description of LED indicator status 20 and 21 for programmable outlets 1 and 2: OFF: the outlets are not supplied with power. Flashing: status change in progress. -
Page 16: Operation On Battery Power (Following Failure Of Ac Input Power)
3. Operation 3.3 Operation on battery power (following an AC input power failure) Transfer to battery power BYPASS Threshold for the low-battery warning BYPASS End of backup time BYPASS The UPS goes to sleep mode at the end of the battery backup time, until complete shutdown, due to tripping of the battery-protection function against deep discharge. -
Page 17: Personalization (Optional)
3.4 Personalization (optional) Function Personalization parameters can be set and modified using the UPS Driver software installed on a computer that is connected to the UPS (see section 2.4 Connection to the RS232 communication port). NOTE: Check that the RS232 30 cable is properly connected. UPS Driver installation: 1. -
Page 18: Output" Tab
3. Operation "Output" tab Personalization function Rated UPS voltage Frequency working mode Rated UPS frequency UPS tolerance for AC-power source frequency Overload alarm threshold UPS restart following short-circuit "Bypass" tab Personalization function Transfer to bypass if overload Transfer to bypass following a fault, whatever the conditions on the AC-power source 3.5 UPS shutdown Page 18 -... -
Page 19: Ups Remote Power Off
3.6 UPS Remote Power Off (RPO) Pulsar EX RT's are equipped with a Remote Power Off function (RPO) that can cut power to all the devices connected to the UPS using a remote user-operated contact. The function is implemented by opening a contact connected to the two terminals of connector 12 on the back of the UPS. -
Page 20: Maintenance
4. Maintenance 4.1 Troubleshooting If any of LEDs 25 , 26 or 27 flash, there is a operating anomaly or an alarm. NOTE: If a LED flashes, the bargraph data is no longer displayed. Indication LED 27 flashes and UPS overload. Overload is too long or too high. the buzzer beeps. - Page 21 Indication The outlets are not supplied One of the protection circuit breakers 6 for the with power, even though outlets (on the back of the UPS) is open. button 16 is ON (3200 RT only). LED 26 flashes and UPS electronics have detected a UPS fault. the buzzer sounds Depending on the UPS personalization parameters continuously.
-
Page 22: Replacement Of The Battery Modules
4. Maintenance 4.2 Replacement of the battery modules CAUTION: Load will not be protected during this procedure! Batteries constitute a danger (electrical shock, burns). The short-circuit current may be very high. Precautions must be taken for all handling. Safety Rules: Remove all watches, rings, bracelets and any other metal objects that may come into contact with the battery modules. - Page 23 Reinstallation of the battery modules To reinstall the battery modules perform this procedure in reverse order e.g., “G”, “F”, “E”. To maintain an identical level of performance and safety, use battery modules identical to that previously mounted in the UPS. Press the two parts of the battery connector tightly together to ensure proper connection.
-
Page 24: Environment
UPS recycling at the end of service life: MGE UPS SYSTEMS, Inc. undertakes to recycle, by certified companies and in compliance with all applicable regulations, all UPS products recovered at the end of their service life (contact your MGE UPS SYSTEMS, Inc. branch office). Packing: UPS packing materials must be recycled in compliance with all applicable regulations. -
Page 25: Appendices
POWER DC/DC CHARGER SUPPLY PUSH PULL BATTERY Pulsar EX 2200RT Pulsar EX 3200RT 2200 VA / 1540 W 3200 VA / 2080 W Single phase, 60 V / 70 V / 80 V to 142 V (1) 50/60 Hz (auto-select) ≥... -
Page 26: Glossary
This function makes it possible to energize the connected equipment even when AC input power is not available (operation exclusively on battery power). Uninterruptible Power Supply. It is possible to enable or disable use of UPS ON / OFF controls by the computer-... -
Page 27: Index
6.3 Index Automatic bypass...9-18-20 Automatic start ...17 Bargraph ...9-15 Battery End of backup time...16 Fault...9-15 Low-battery warning ...17 Recycling ...24 Replacement ...22-23 Transfer to battery power ...16 Buttons ...8-9 Buzzer ...15-16 Buzzer shutdown ...9 Connection Additional battery module ...8 Communication card ...13 RS 232 communication port...13 USB communication port ...13 Communication ...8-13... - Page 28 UPS SYSTEMS, INC. 1660 Scenic Avenue Costa Mesa, CA 92626, USA Main Number: 714 557-1636 3400753300-AE T H E U N I N T E R R U P T I B L E For service call: 1 800 523-0142 Internet: www.mgeups.com P O W E R P R O V I D E R...
