Battery Module with Remote Emergency Power Off (REPO) Function

(EXB 5/7 RT; PN 86079, EXB 11RT; PN 86119)
Standard HV EX 5/7/11RT system (one Power Module, EX 5/7/11 RT, and one Battery Module, EXB 5/7/11RT)
offers a standard backup time of 5 to 12 minutes at full load.
To increase backup time, it is possible to connect up to 5 additional EXB 5/7/11 RT modules to the EX 5/7/11 RT
module. See section 2.10 for connections between Power Module (EX 5/7/11 RT) and Battery Module (EXB 5/7/11
RT)

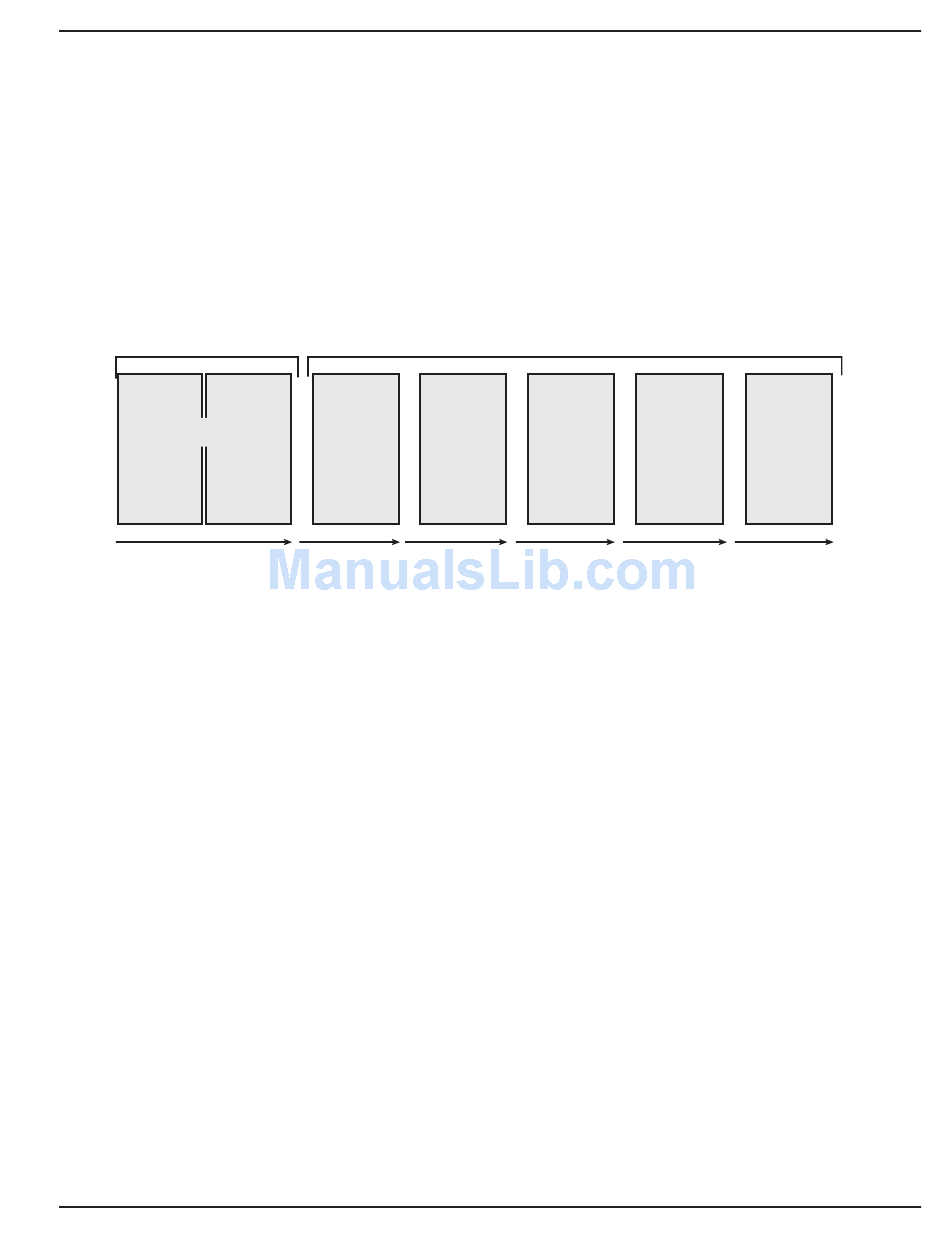

Figure 1-9: Typical back-up time with multiple EXB's at full load.
Standard
HV EX 5/7/11RT system
EX 5/7/11RT EXB 5/7/11RT
5 kVA :
7 kVA :
11 kVA:
See Appendix for additional Back-up time information.
1.5.4

Battery Extension Cable Kit

( 6 ft / 1.8 m, Part number 86006)
This extended battery cable kit will be used instead of the standard battery cable when battery modules (EXBs) are
distant from each other (located in two different enclosures, for instance).
The battery extension cable kit includes a 6 ft long, straight connector battery power cable and a 6 ft. long battery
detection cable.
86-86000-00 A01
EXB 5 RT EXB 5 RT
EXB 7 RT EXB 7 RT
+ +
/
EXB 11 RT EXB 11 RT
12 min 30 min
7 min 20 min
5 min 14 min
Optional
Configurations
EXB 5 RT
EXB 7 RT
+ +
/ /
EXB 11 RT
55 min 75 min
32 min 45 min
22 min 30 min
Introduction
Installation and User Manual
EXB 5 RT EXB 5 RT
EXB 7 RT EXB 7 RT
+
/ /
EXB 11 RT EXB 11 RT
98 min 118 min
57 min 70 min
42 min 53 min
