EX 5/7/11 RT System
2.6.1

Rear Support Brackets Installation

(Part number 86013, included with rack mounting kits, part numbers: 86001 and 86002)
These brackets prevent the power module from moving when the entire rack enclosure is moved.
Proceed as follows:
1. Attach the brackets
2. Secure brackets to rails.

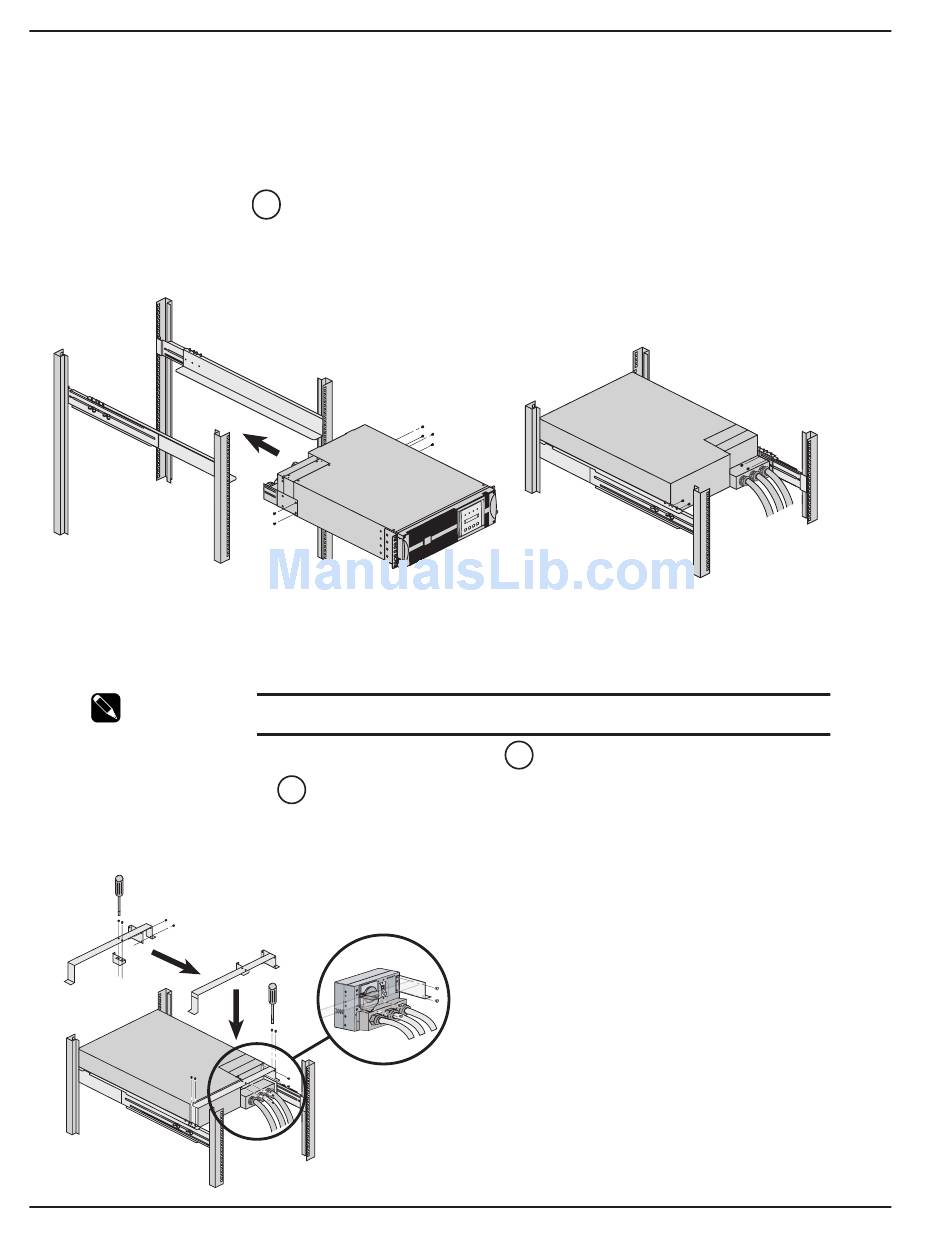

Figure 2-7a: Rear Support Brackets.
2.6.2

Input/Output Box Bracket System Installation

(Part number 86012 included with power module rack mounting kit, part numbers: 86001)
This bracket system keeps the I/O Box stationary while hot swapping the power module. It will then be easier to slide
the replacement module into the connectors of the I/O Box.
NOTE:
1. Secure small bracket to larger bracket from the underside
2 & 3. Secure large bracket
4. Secure small attached bracket (with supplied screws) to the I/O Box.
Figure 2-7b: Input/Output Box Bracket System.
1
3
2 — 8
25
to the I/O Box and power module.
1
1
The rear support brackets must be removed prior to
installing I/O Box bracket system.
27
(with supplied screws) to rails at the rear of module.
2
4
OFF
3
4
Installation
2
27
.
2
86-86000-00 A01
