2.4

Installation in Rack Mounting Configuration

2.4.1

Adjustment of Front Panel Logo and control panel for Rack Orientation.

NOTE If system includes the transformer module, we recommend to mount the battery module
on the bottom, then mount the power module above the battery module and mount the
transformer on top for optimum stability.
To prepare the front panel logo and LCD display for rack orientation, of all modules. (including transformer or CLA
module, if equipped).
Proceed as follows:
1. Unclip logo plate, and pull the LCD display from front panel.
2. Rotate them 90 degree counter clockwise as shown.
3. Place items back onto the panel.

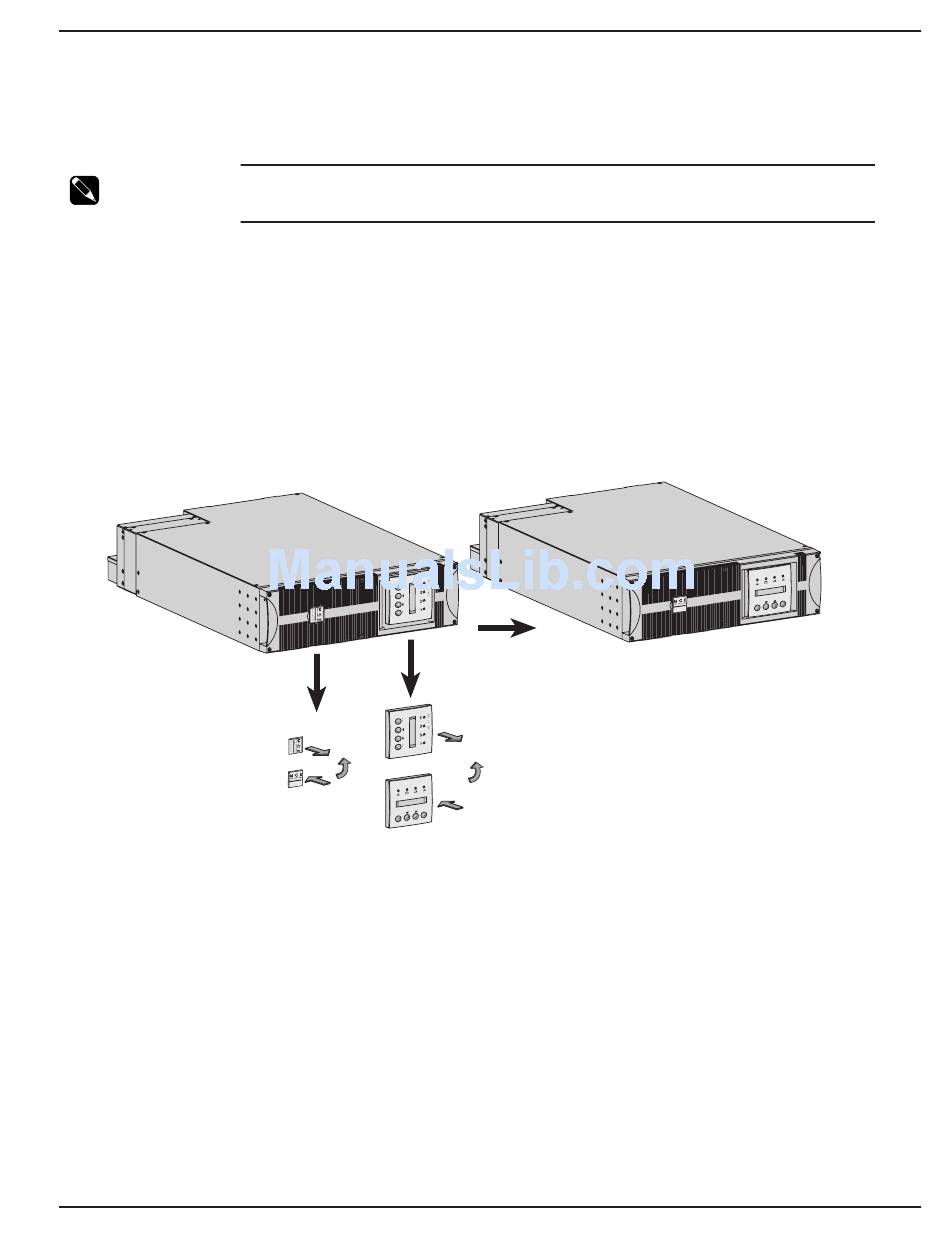

Figure 2-3: Typical orientation of the logo and control panel. (Power Module shown)
86-86000-00 A01
1
1
2
1 R T
ps.co m E X 1
www. mgeu
3
ON
3
OFF
Installation
Installation and User Manual
FINISHED PANEL
(rack orientation)
2
1 R T
E X 1
ON
OFF
ps.co m
www. mgeu
2 — 5
