EX 5/7/11 RT System
2.5

Prepare Battery Module for Rack Mounting

(optional rails required, part number: 86002)
The battery module is very heavy. To ease its rack mounting, we strongly recommend to remove the battery pack
from the battery module, as explained below. See Section 1.2.2 for battery module weight.
Proceed as follows:
1. Unscrew the six screws securing front panel using Bezel Hex Driver
2. Unscrew the brackets securing the battery connectors.
3. Disconnect Battery plugs.
4. Unscrew the brackets securing the battery pack. Remove battery bracket pack covers.
5. Pull the left and right battery packs out and set aside for reinstalling after the battery module cabinet has been
rack mounted.
6. Mount battery module cabinet on rack.
7. Re-install the battery pack in reverse order.

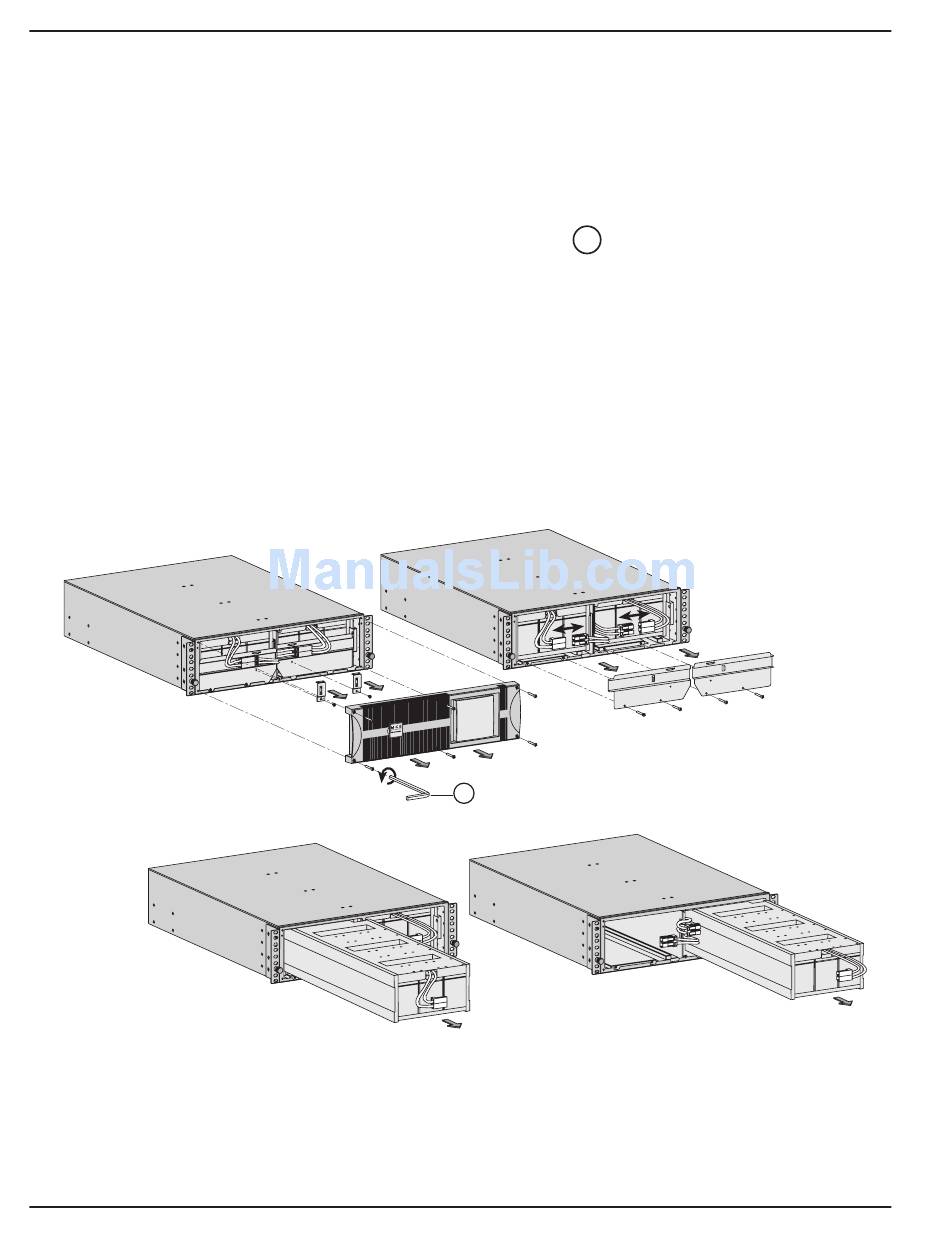

Figure 2-4: Accessing Battery Pack.
2 — 6
2
2
R T
E X B
geups .com
www.m
1
x 6
44
1
(not to scale)
Installation
44
.
3
3
4
1
5
4
86-86000-00 A01
