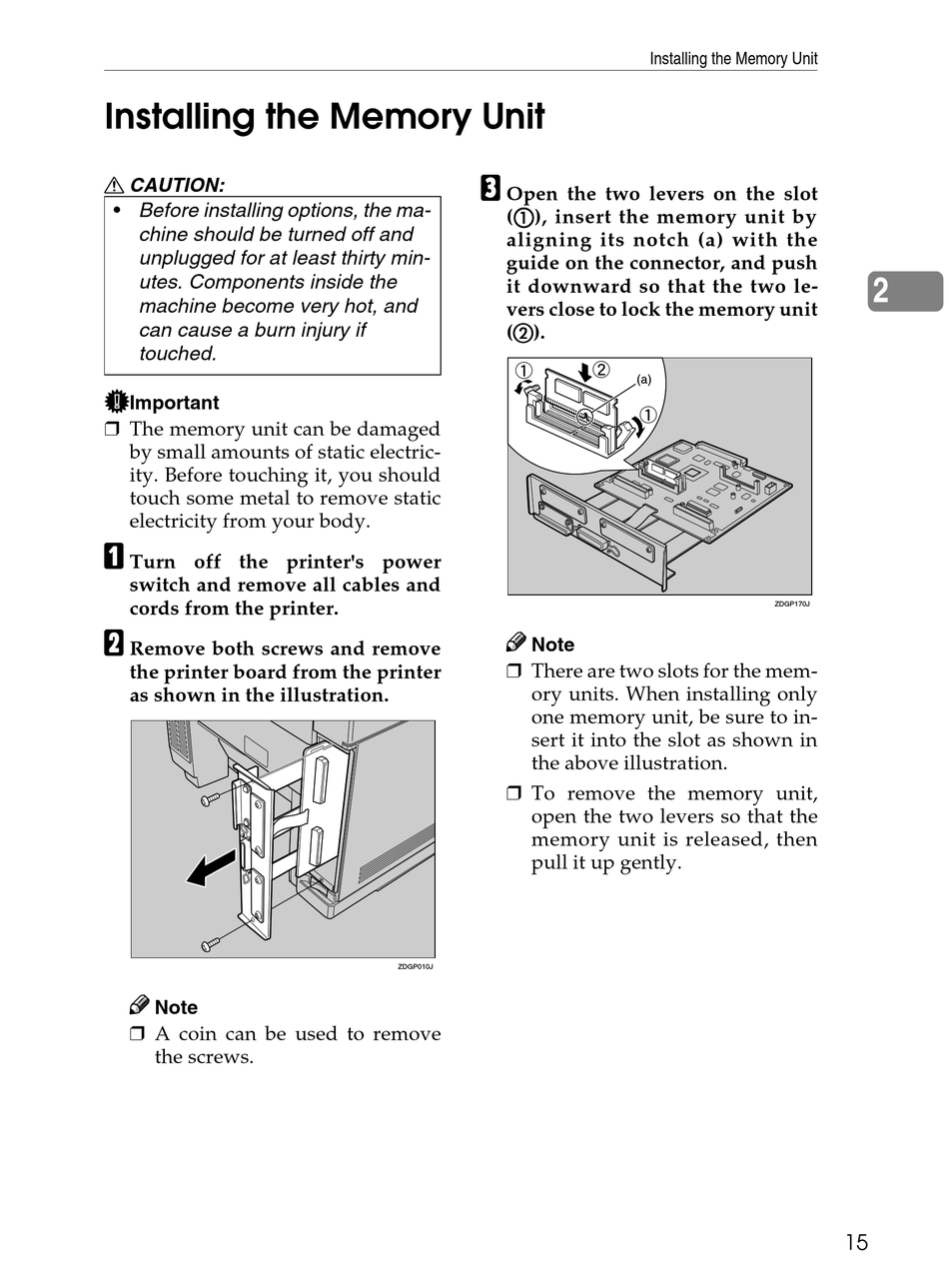

Installing the Memory Unit

R CAUTION:
• Before installing options, the ma-
chine should be turned off and
unplugged for at least thirty min-
utes. Components inside the
machine become very hot, and
can cause a burn injury if
touched.
Important
❒ The memory unit can be damaged
by small amounts of static electric-
ity. Before touching it, you should
touch some metal to remove static
electricity from your body.
A
Turn off the printer's power
switch and remove all cables and
cords from the printer.
B
Remove both screws and remove
the printer board from the printer
as shown in the illustration.
Note
❒ A coin can be used to remove
the screws.
C
Open the two levers on the slot
(A A A A ), insert the memory unit by
aligning its notch (a) with the
guide on the connector, and push
it downward so that the two le-
vers close to lock the memory unit
(B B B B ).
Note
❒ There are two slots for the mem-
ory units. When installing only
one memory unit, be sure to in-
sert it into the slot as shown in
the above illustration.
❒ To remove the memory unit,
open the two levers so that the
memory unit is released, then
pull it up gently.
ZDGP010J
Installing the Memory Unit
ZDGP170J
