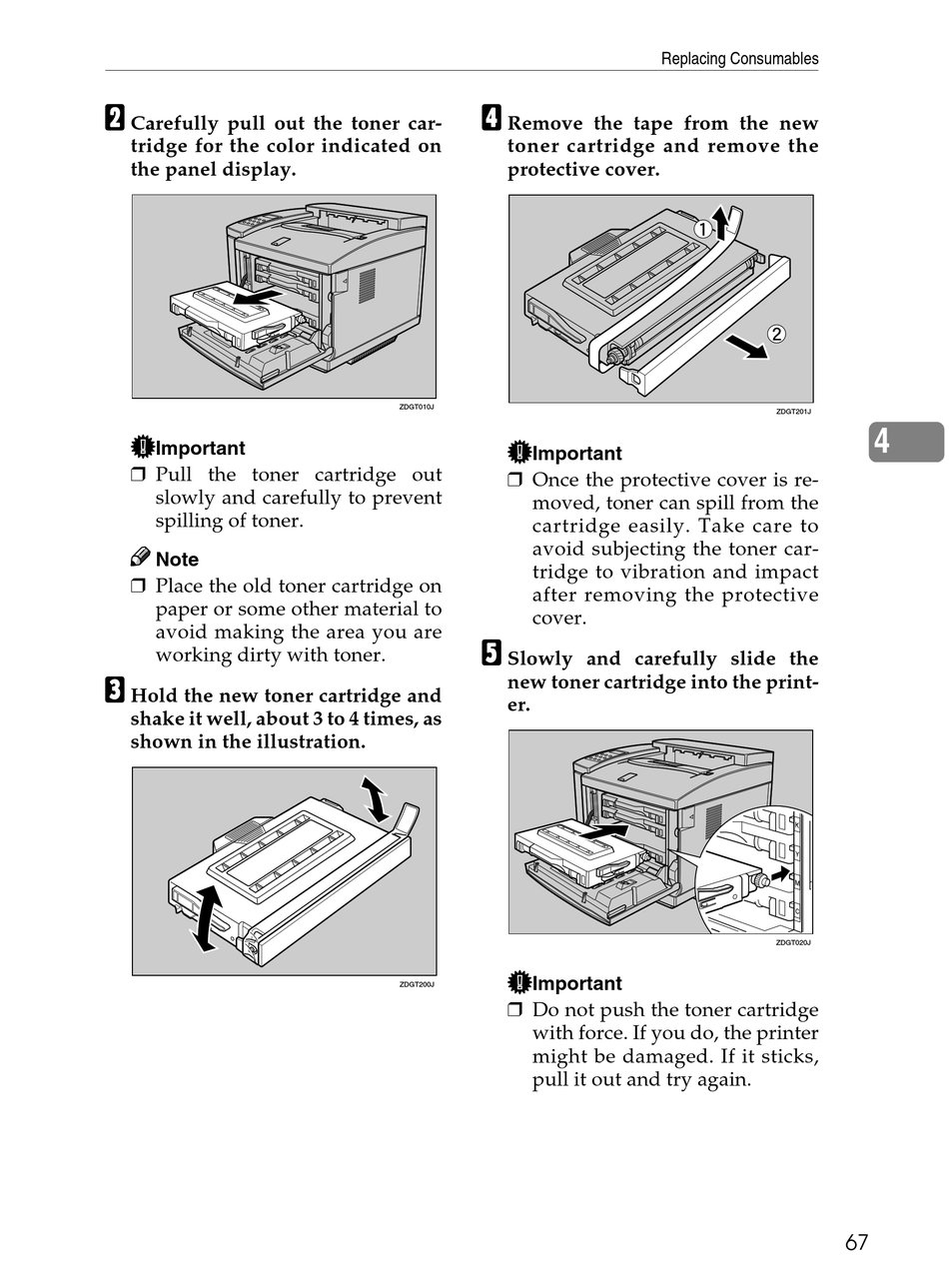

Ricoh SCRIPT2 Setup Manual page 151

B
Carefully pull out the toner car-
tridge for the color indicated on
the panel display.
Important
❒ Pull the toner cartridge out
slowly and carefully to prevent
spilling of toner.
Note
❒ Place the old toner cartridge on
paper or some other material to
avoid making the area you are
working dirty with toner.
C
Hold the new toner cartridge and
shake it well, about 3 to 4 times, as
shown in the illustration.
D
Remove the tape from the new
toner cartridge and remove the
protective cover.
ZDGT010J
Important
❒ Once the protective cover is re-
moved, toner can spill from the
cartridge easily. Take care to
avoid subjecting the toner car-
tridge to vibration and impact
after removing the protective
cover.
E
Slowly and carefully slide the
new toner cartridge into the print-
er.
Important
ZDGT200J
❒ Do not push the toner cartridge
with force. If you do, the printer
might be damaged. If it sticks,
pull it out and try again.
Replacing Consumables
ZDGT201J
ZDGT020J
4
67
