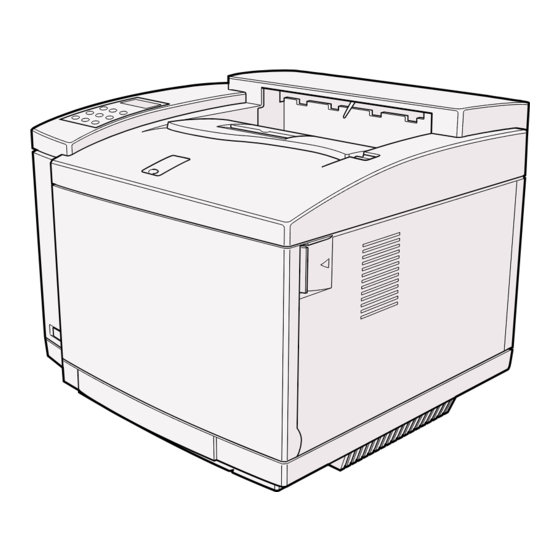

Ricoh SCRIPT2 Setup Manual

QUICK INSTALLATION GUIDE
Please read the Safety Information in the "Printer Reference" before using this machine.
It contains important information related to USER SAFETY and PREVENTING EQUIP-
MENT PROBLEMS.
UNPACKING THE PRINTER AND WHERE TO PUT THE PRINTER
CHECKING THE CONTENTS OF The printer's location should be carefully chosen
because environmental conditions greatly affect its
THE BOX
performance.
Warning
Caution
• Confirm that the wall outlet is near the machine
• To prevent injury, this printer should be lifted by
and freely accessible, so that in event of an
at least two people.
emergency, it can be unplugged easily.
• Only connect the machine to the power source
Check the contents of the box according to the
described on this sheet.
following list. If one or some items are missing,
• Avoid multi-wiring.
please contact your sales or service
• Do not damage, break or make any
representative.
modifications to the power cord. Do not place
heavy objects on it, pull it hard or bend it more
Important
than necessary. These actions could cause an
The parallel cable is not included in the box. It is
electric shock or fire.
your responsibility to provide the parallel cable
appropriate for the computer you are using.
Caution
• Keep the machine away from humidity and dust.
Quick Installation Guide (this sheet)
A fire or an electric shock might occur.
Setup Guide • Place the machine on a strong and level surface.
CD-ROM
Otherwise, the machine might fall and cause
Toner Cartridge (Black) personal injury.
• If you use the machine in a confined space,
Toner Cartridge (Yellow)
confirm that there is a continuous flow of air.
Toner Cartridge (Cyan)
Toner Cartridge (Magenta)
Optimum Environmental Conditions
Recommended temperature and humidity
RH
80
60
Fuser Cleaner
Photoconductor Unit
40
Fuser Oil Bottle
20
10
RH
80
60
Power Cord
Additional Documentation
40
Remove the plastic bag.
20
50
Lift the printer and move it to the place where The machine must be level within 5 mm, 0.2" both front to rear
and left to right.
you want to install it.
To avoid possible build-up of ozone, locate this printer in a large well
When lifting the printer, use the inset grips on both sides of the
ventilated room that has an air turnover more than 30 m
printer.
If you use this printer in a cold area, leave the printer on or severe
cold might damage sensitive components inside the printer.
Environments to Avoid
Locations exposed to direct sunlight or strong light
Dusty areas
Areas with corrosive gases
Areas excessively cold, hot, or humid
ZDHP125E
Locations near an air conditioner or humidifier
Remove adhesive tape [A] and packing material
Locations near other electronic equipment
[B] from the printer.
Locations where the printer might be subjected to
frequent strong vibration
A B A
ZDHH015E
<G063-8935>
Power Connection
Connect the power cord to a power source with the following
specifications:
220-240 V, 50/60 Hz, 6 A or more
Space Required for Installing the Printer
Leave enough space around the printer. This space is necessary to
operate the printer. The recommended (or minimum) space
requirement is as follows:
D
A: more than 50 cm (19.7")
B: more than 20 cm (7.9")
C: more than 50 cm (19.7")
D: more than 70 cm (27.6")
Attaching the Sticker
A sticker, mentionning that paper meant for an ink-jet printer is
not allowed for use with this printer, is supplied.
10 80 27 80
Please attach the sticker to the bottom right corner of the top of the
27 70
32.5
17.5 printer [A] so that the sticker is easy to see.
60
70
17.5
27 50
50
10 20 32.5 20
20 30
50 80 80.6 80
80.6 70
90.5
63.5
60
70
63.5 80.6 50
50
50 20 90.5 20
60 70 80 90
Possible operation range Recommended range
3 /hr/person.
Important
INSTALLING THE FUSER OIL
BOTTLE AND FUSER CLEANER
Caution
• Do not incinerate the oil bottle. This action could
cause a fire or a personal injury.
• Spilt oil is very slippery. If oil is spilt, wipe it up
with an alkaline cleaner. Otherwise, the oily
surfaces can create the danger of slipping and
personal injury.
A
Important
Prior to moving or transporting the printer, wipe out
the fuser oil completely as explained in the "Printer
B
Reference" included as a PDF file on the CD-ROM.
Open the top cover by pulling the top cover open
lever.
C
ZDHH800E
Insert the oil bottle. When inserting, the side with
the label should be facing toward you, and the
mouth of the bottle facing down.
A
ZDHH810E
Install the fuser cleaner. When installing, the roller
should be facing toward you.
Turn the lock levers to hold the oil bottle and fuser
cleaner.
Note
Turn the right lock lever clockwise, and the left one
counterclockwise.
INSTALLING THE
PHOTOCONDUCTOR UNIT
Important
Do not touch the surface of the photoconductor unit.
This could damage the photoconductor unit and
reduce the print quality.
Do not expose the photoconductor unit to a light
source greater than 800 luxes for more than two
minutes. This could damage the photoconductor unit
and reduce the print quality.
Lift the green lock levers to a vertical position.
ZDHH125E
Remove the pins on both sides of the
photoconductor unit.
ZDHH105E
ZDHH615E
Remove the protective sheet.
ZDHH175E
ZDHH616E
Insert the photoconductor unit so that the
protruding axles on both sides are aligned with
the tracks inside the green lock levers. Lower it
until the gears mesh securely.
ZDHH235E
ZDHH145E
Important
When inserting the photoconductor unit, be careful
not to touch or damage the surface.
ZDHH245E
Return the green lock levers to their original
positions.
ZDHH155E
Important
Do not return lock levers with force. If you cannot
lock them easily, remove the photoconductor unit
from the printer. Then insert it again until the gears
mesh securely. After that, try again to return the
levers to their original positions.
Close the top cover until the center of the cover
locks securely.
ZDHH810E
