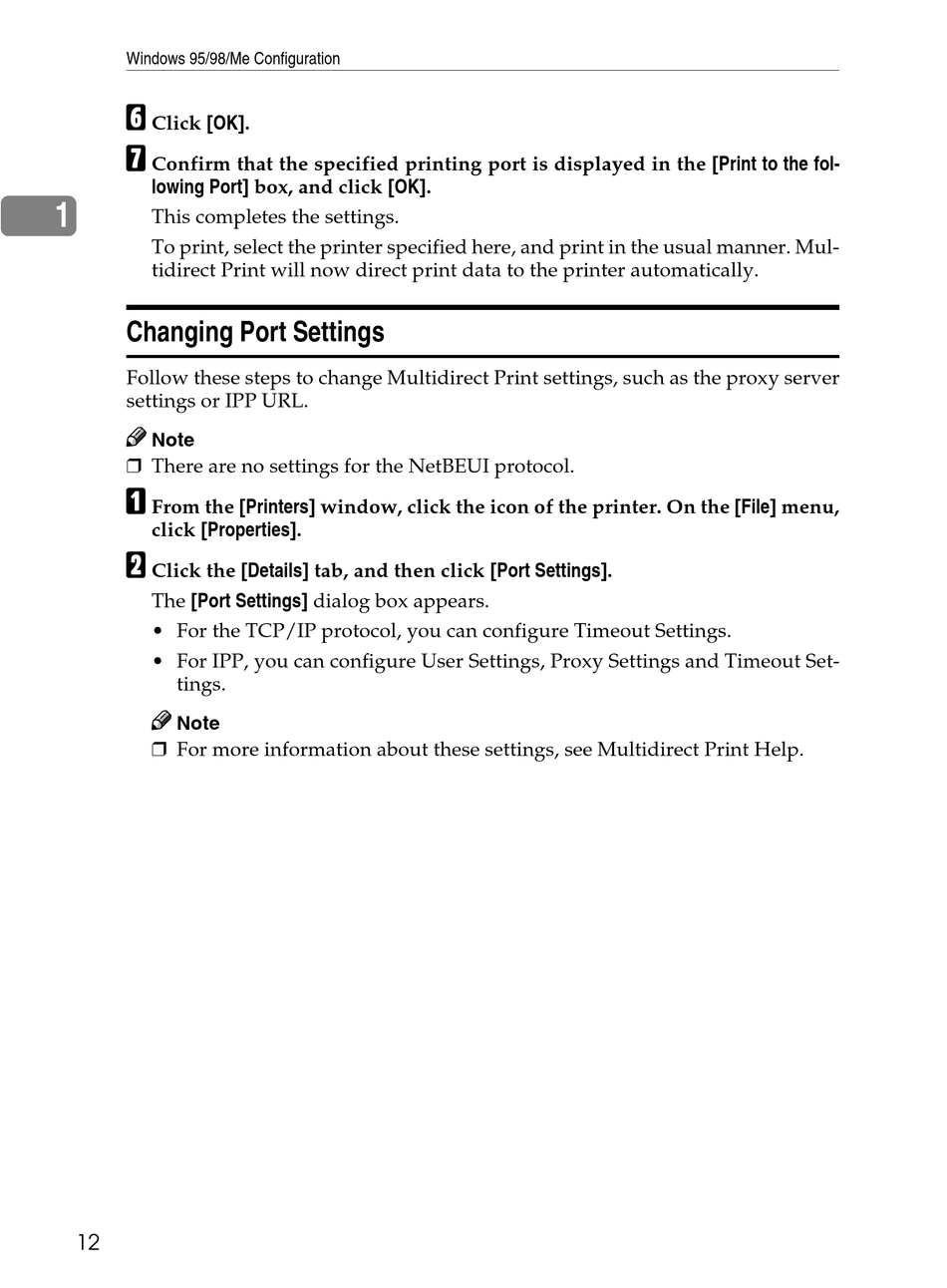

Changing Port Settings - Ricoh SCRIPT2 Setup Manual

Windows 95/98/Me Configuration
F
Click [OK].
G
Confirm that the specified printing port is displayed in the [Print to the fol-
lowing Port] box, and click [OK].
1
This completes the settings.
To print, select the printer specified here, and print in the usual manner. Mul-
tidirect Print will now direct print data to the printer automatically.

Changing Port Settings

Follow these steps to change Multidirect Print settings, such as the proxy server
settings or IPP URL.
Note
❒ There are no settings for the NetBEUI protocol.
A
From the [Printers] window, click the icon of the printer. On the [File] menu,
click [Properties].
B
Click the [Details] tab, and then click [Port Settings].
The [Port Settings] dialog box appears.
• For the TCP/IP protocol, you can configure Timeout Settings.
• For IPP, you can configure User Settings, Proxy Settings and Timeout Set-
tings.
Note
❒ For more information about these settings, see Multidirect Print Help.
12
