Copier Board (Pwb-Cf) - Konica Minolta bizhub C450 Service Manual

Field Service Ver. 1.0 Mar. 2005
6.3.13

Copier Board (PWB-CF)

[2]
[3]
[1]
4037F2C040DA
[3]
4037F2C041DA
[4]
4037F2C042DA

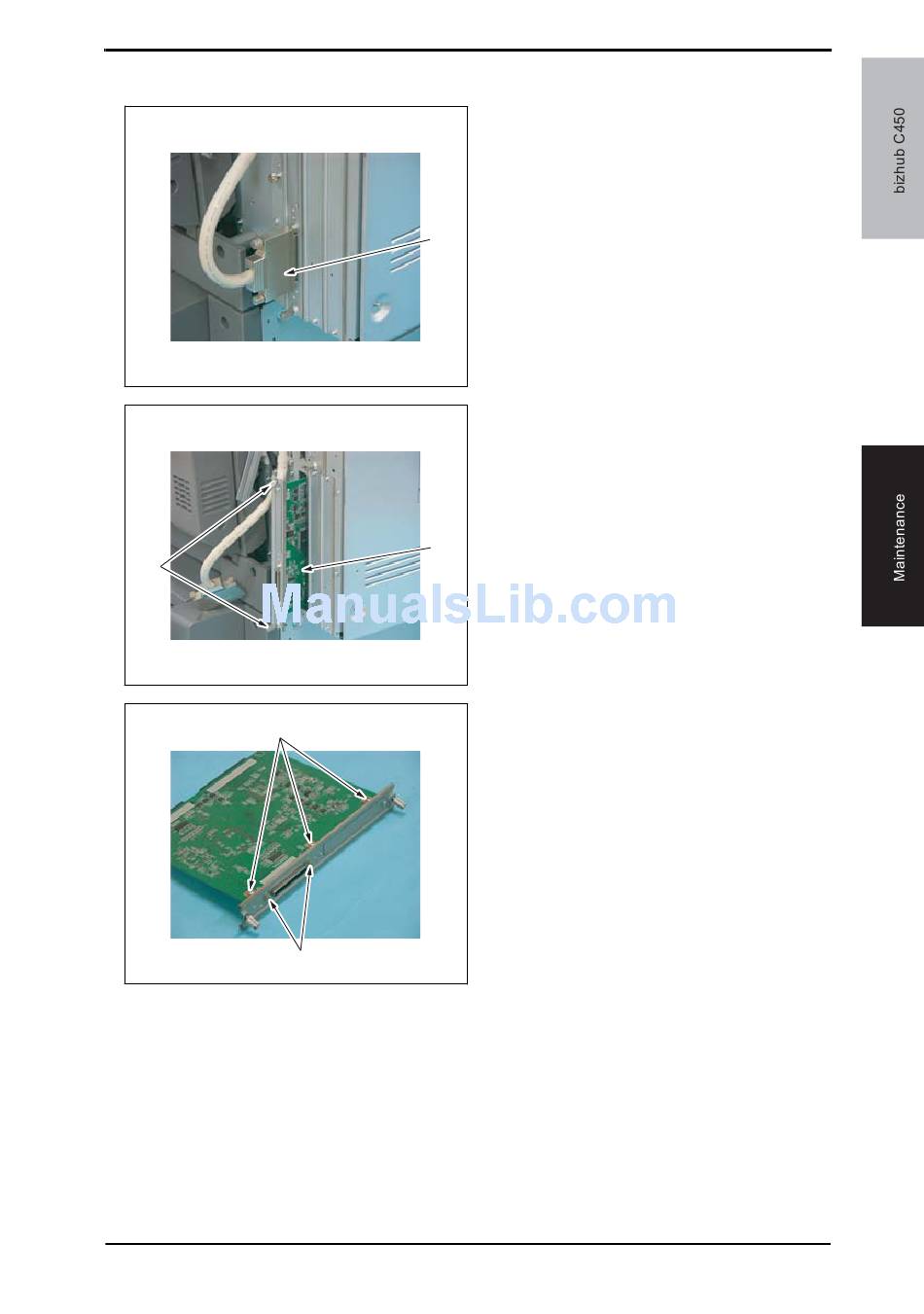

1. Remove the right rear cover
☞ 52
2. Remove the connector [1].
3. Loosen two screws [2], and pull out
the Copier Board Assy [3].
4. Remove three screws [4] and two
hex-head screws [5].
6. Other
61
