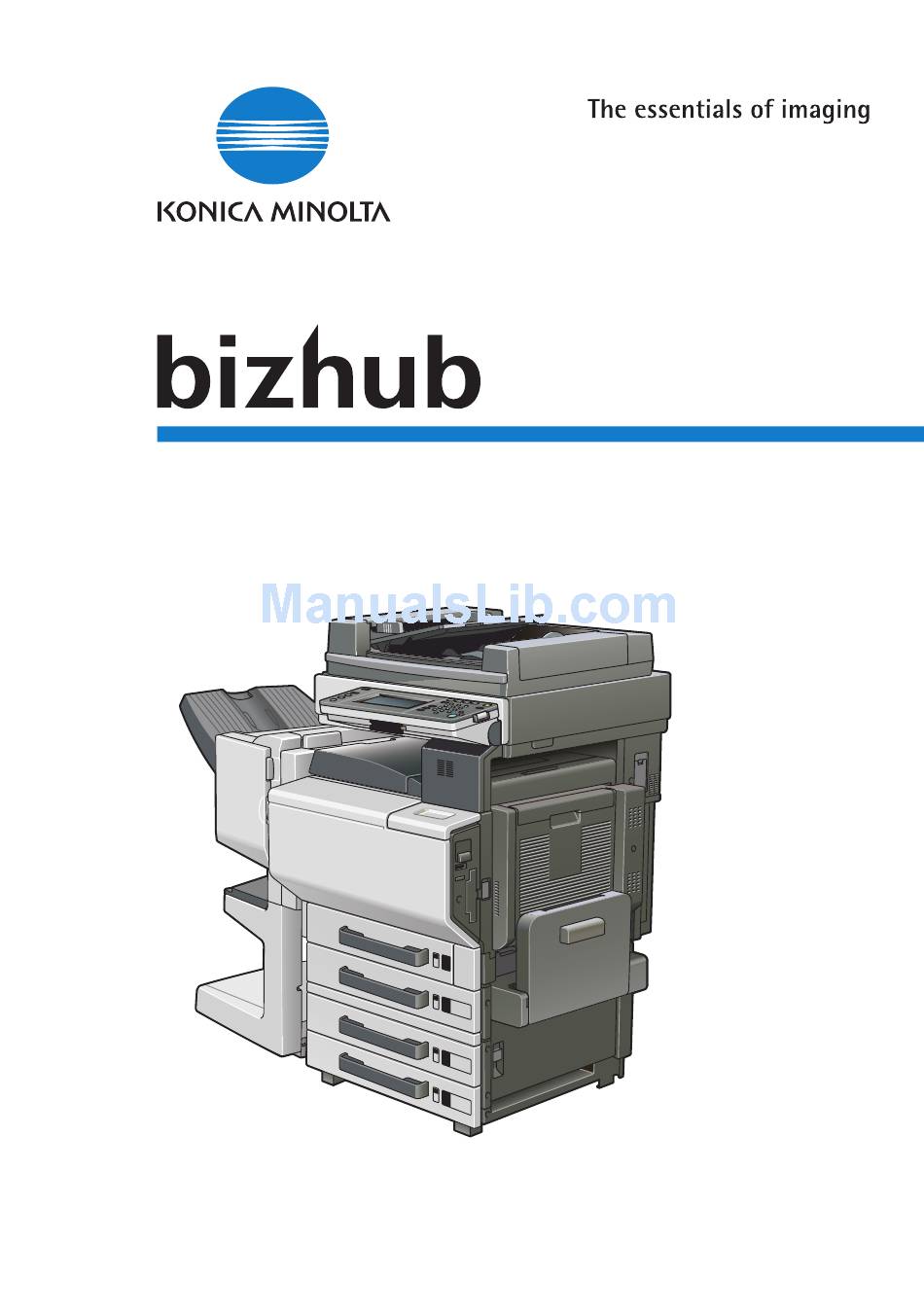

Page 1 C450 Print Operations...
Page 3 Welcome Thank you for purchasing the Konica Minolta bizhub C450. The bizhub C450 is equipped with an integrated printer controller that allows you to print directly from Windows-compatible computers or Macintosh computers. This user’s guide describes the printing functions, operations, usage, and safety precautions of the printer controller.
Page 4 ® - RSA is a registered trademark or trademark of RSA Security Inc. in the United States and/or other countries. OpenSSL Statement OpenSSL License Copyright © 1998-2000 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modifica- tion, are permitted provided that the following conditions are met: 1.
Page 5 Original SSLeay License Copyright © 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved. This package is an SSL implementation written by Eric Young (eay@crypt- soft.com). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the fol- lowing conditions are aheared to.
Page 6: Copyright
- This user’s guide may not be reproduced in part or in full without permis- sion. - Konica Minolta Business Technologies, Inc. will not be held liable for any incidents caused by using this printing system or user’s guide. - Information included in this user’s guide is subject to change without no- tice.
Page 7: Software License Agreement
SOFTWARE LICENSE AGREEMENT This package contains the following materials provided by Konica Minolta Business Technologies, Inc. (KMBT): software included as part of the printing system, the digitally-encoded machine-readable outline data encoded in the special format and in the encrypted form (“Font Programs”), other software which runs on a computer system for use in conjunction with the Printing Software (“Host Software”), and related explanatory written materials (“Doc-...
Page 8 9. You may not rent, lease, sublicense, lend or transfer versions or copies of the Software Licensee does not use, or Software contained on any un- used media, except as part of the permanent transfer of all Software and Documentation as described above. 10.
Page 9: Table Of Contents
Contents Welcome Copyright ...................4 SOFTWARE LICENSE AGREEMENT ...........5 Contents ....................7 About this user’s guide ..............16 C450 user’s guides ................16 Notations ..................16 Screen images in this user’s guide ..........16 Using this user’s guide ..............17 Overview Printer controller CD-ROM configuration ........1-1 Printer controller ................
Page 10 When used with Macintosh ............2-20 Installing the printer driver ............2-20 For Mac OS X ................2-20 Selecting a printer .................2-22 For Mac OS X ................2-22 For Mac OS 9.2 ................2-23 Uninstalling the printer driver ............2-25 For Mac OS X ................2-25 For Mac OS 9.2 ................2-26 Setting up network printing Overview of network functions ............3-1 Network functions ................3-1...
Page 11 For NetWare 4.x/5.x/6 print server mode (NDS) ......3-27 For NetWare 5.x/6 Novell Distributed Print Service (NDPS) ..3-30 Setting up a client (Windows) settings when using the NetWare server 3-31 Printing with Macintosh ..............3-32 Operations on this machine ............3-32 Setting the Macintosh computer ..........
Page 12 Setting up the PCL driver Settings ....................5-1 Common settings ................5-1 Setup tab ..................5-2 Per page setting tab ...............5-2 Overlay tab ..................5-3 Watermark tab ................5-3 Quality tab ..................5-3 Font tab ...................5-3 Fax tab ....................5-3 Version tab ..................5-4 Option tab ..................5-4 Specifying the setup tab settings ............5-5 Printing to suit the paper size ............5-5 Saving a custom size ..............5-6 Selecting the paper source .............5-7...
Page 13 Specifying the font tab settings ............ 5-30 Specifying settings ............... 5-30 Specifying the fax tab settings ............5-31 Sending a fax ................5-31 Creating a cover sheet ..............5-37 Registering a recipient in the phonebook ........5-41 Registering recipient information ..........5-41 Registering a group ..............
Page 14 Specifying the per page setting tab settings ........6-18 Printing documents with a front cover/back cover .......6-18 Specifying the watermark tab settings .........6-19 Printing a watermark ..............6-19 Editing a watermark ..............6-20 Specifying the quality tab settings ..........6-21 Specifying settings ................6-21 Font settings .................6-22 Specifying the option tab settings ..........6-23 Specifying settings ................6-23 Saving the driver settings ...............6-25...
Page 15 Printing .................... 8-10 General (Basic settings) ............... 8-10 Layout (Printing multiple pages on one page) ......8-12 Printer specific options (Finishing options 1 to 4) ......8-13 Setting options ................8-15 Specifying settings ............... 8-15 Setting up the PPD driver (Mac OS X) Settings ....................
Page 16 Staple ..................10-12 Hole-Punch .................10-13 Typeface ..................10-14 Symbol set ..................10-15 Font size ..................10-16 Line/Page ..................10-18 CR/LF mapping ................10-19 PS error print ................10-21 Print reports ................10-22 10.2 Printer settings in administrator mode ........10-23 To display the administrator setting screen ........10-23 Print/Fax output settings ............10-25 Local I/F timeout .................10-27 Parallel I/F ...................10-28 Parallel/USB ................10-29...
Page 17 System Tab — Date/Time — NTP setting ......... 10-56 System Tab — Administrator password ........10-57 System Tab — Device information ..........10-58 System Tab — Online assistance ..........10-59 System Tab — Import/Export ............ 10-60 System Tab — Maintenance — Network setting clear ....10-61 System Tab —...
Page 18 12 Appendix 12.1 Specifications ..................12-1 12.2 Configuration page ................12-3 12.3 Font list .....................12-4 PCL font list ..................12-4 PS font list ..................12-5 Test page ..................12-6 12.4 Glossary ....................12-7 12.5 Index ....................12-12 x-16 C450...
Page 19: About This User's Guide
About this user’s guide This user’s guide contains information for using the printing functions of the Konica Minolta printer controller. For details on the copy functions, scanning functions, box functions, and fax functions, refer to the respective user’s guide. This user’s guide is aimed at users who already have a basic knowledge of computer and copier operations.
Page 20: Using This User's Guide
Using this user’s guide Subject titles Explains the operation procedures. Windows, dialog boxes, icons, and function names displayed on the screen are enclosed in “ “. Contents displayed on a screen. Button names displayed on the screen are enclose in [ ]. Contents displayed on a screen.
Page 21: Overview
Overview Overview Printer controller CD-ROM configuration The printer controller CD-ROMs consist of the following: - User Software CD-ROM - PostScript Printer Driver CD-ROM (Win/Mac) - PageScope CD (PageScope Software) Each CD-ROM contains printer drivers (for Windows and for Macintosh) and utilities as well as screen fonts and documentation, such as the user’s guides and release notes.
Page 22 Overview User software CD-ROM: For Windows C450...
Page 23 Overview PostScript Printer Driver CD-ROM (Win): For Windows Driver PS-PPD Win9x_Me Win9x_Me Win9x_Me Win9x_Me Win9x_Me Win9x_Me Drivers bizhub C450 WinNT/Win2000_XP WinNT/Win2000_XP WinNT/Win2000_XP WinNT/Win2000_XP WinNT/Win2000_XP WinNT/Win2000_XP Screen fonts PostScript Printer Driver CD-ROM (Mac): For Macintosh English Driver OS 9_x KONICAMINOLTAC450Vxxx.ppd OS10_2_X KONICAMINOLTA_C450_102.pkg...
Page 24 Overview PageScope CD-ROM Readme EMSPlugin Manual Readme Disk1 NDPSGW Manual Readme setup.exe PSNC Manual Readme PSNC520010-win.exe PSNS Manual Readme setup.exe C450...
Page 25: Printer Controller
Overview Printer controller The printer controller is a device for performing printing functions and net- work printing functions with this machine. Role of the printer controller The printer controller is built into the machine. You can print from applications on the computer connected to the printing system.
Page 26: Machine Modes
Overview Machine modes The printer driver settings are mainly set using a computer, however, the font list can be printed, and the printer controller settings and default print set- tings can be set using the control panel of this machine. In addition, fax and scanning operations can be used by switching the mode.
Page 27: Printing Flow
Overview Printing flow When using this printing system as a printer, the flow of the main process is described below. Print commands transmitted from the application are received by the printer driver. Data is transmitted to this machine over a parallel interface (IEEE 1284) when this machine is used as a local printer, over a USB interface when this ma- chine is used as a USB printer, or over an Ethernet interface (TCP/IP, IPX/ SPX, or AppleTalk) when this machine is used as a network printer.
Page 28: Flow Of The Computer Faxing Operation
Overview The copy functions can be used while the printing functions are being used. To use this machine as a copier, press the [Copy] key on the control panel. When a print job is received during copying, the data is stored in the memory of this machine.
Page 29 Overview Computer Used as a Used as a Used as a USB printer network printer local printer Application Application Application Printer driver Printer driver Printer driver Ethernet (TCP/IP, Parallel interface IPX/SPX, (IEEE 1284) or Apple Talk) Machine Print Printer controller PS/PCL processing (rasterizing) C450...
Page 30: Operation Environment
Overview Operation environment The system requirements for using this printing system and the interfaces used for connection are explained below. Compatible computers and operating systems Check that the computer being connected meets the following conditions. Windows Operating system Windows 98 Second Edition, Windows Me, Windows NT 4.0 (Service Pack 6a or later), Windows 2000 Professional (Serv- ice Pack 4a or later), Windows XP Home Edition (Service Pack 1 or later), Windows XP Professional (Service Pack 1 or later),...
Page 31: Compatible Interfaces
Overview Compatible interfaces The various interfaces that can be used to connect this printing system to a computer are described below. Ethernet interface Connect when using this printing system as a network printer. Supports 10Base-T and 100Base-TX standards. In addition, the Ethernet in- terface supports the TCP/IP (LDP/LPR, peer-to-peer), IPX/SPX (NetWare), and AppleTalk (EtherTalk) protocols.
Page 32 Overview Connection diagram The printer cables can be connected to each port at the back of this ma- chine. Machine (rear view) User port cable Parallel Parallel port cable Ethernet (10Base-T or 100 Base-Tx) 1-12 C450...
Page 33: Setting Up The System
Overview Setting up the system In order to use this printing system, it must first be set up. Setup consists of connecting this machine to a computer and installing the printer driver onto the computer being used. To set up the printing system Setup of the printing system as described below.
Page 34 Overview Note To update an existing printer driver, delete the existing printer driver first. For details, refer to “Uninstalling the printer driver” on page 2-19 and page 2-25. As necessary, set the interface timeout settings and parallel interface mode (Compatible, Nibble, or ECP) in the utility mode on the control pan- el.
Page 35: Installing The Printer Driver
Install the required printer driver. Page description Printer driver Supported operating systems language Konica Minolta Driver Windows 98 Second Edition, Windows Me, (PCL XL) Windows NT 4.0 (SP6a), Windows 2000 Professional, Windows XP Home Edition, Windows XP Pro-...
Page 36: When Used With Windows
Installing the printer driver When used with windows The installation procedure for the Windows printer driver differs depending on how this machine is connected to the computer and depending on which printer driver is used. The installation method also differs depending on the version of Windows that you are using.
Page 37: Automatic Installation Using The Installer
Installing the printer driver Automatic installation using the installer With the installer, this machine is detected to determine whether it is con- nected by USB or is on the same TCP/IP network as the computer, and then the required printer driver is automatically installed. You can also manually specify the printer driver to be installed.
Page 38: To Install The Printer Driver
Installing the printer driver To install the printer driver Insert the user software CD-ROM into the computer’s CD-ROM drive. The installer starts up. Click “Printer Install”. The installation of the printer driver starts. C450...
Page 39 Installing the printer driver Click the [AGREE] button if you agree with all terms and conditions of the license agreement. – If you do not agree with the terms and conditions of the license agreement, the software cannot be installed. –...
Page 40 Installing the printer driver Select this machine and proceed with the installation. Follow the on-screen instructions to complete the installation. – If the connection of this machine cannot be recognized or for par- allel connections, the machine will not be listed. When this occurs, select “Specify the Printer/MFP”, and then specify this machine di- rectly.
Page 41: Installing The Printer Driver Using The Add Printer Wizard
– Konica Minolta PCL Driver: User Software CD-ROM – Konica Minolta PostScript Driver: PostScript Printer Driver CD- Click the [Start] button, and then click “Printers and Faxes”. For Windows XP, click “Add a printer” on the “Printer Tasks” menu. C450...
Page 42 Installing the printer driver – For Windows Server 2003, double-click the “Add Printer” icon. Windows XP Windows Server 2003 The Add Printer Wizard starts up. Click the [Next] button. Select “Local printer attached to this computer”, and then click the [Next] button.
Page 43 [OK] button. – Konica Minolta PCL Driver: User Software CD-ROM “Driver\Drivers\bizhubC450” folder – Konica Minolta PostScript Driver: PostScript Printer Driver CD- ROM “Driver\Drivers” folder Click the [OK] button. – The “Printers” list appears.
Page 44 Installing the printer driver When installation is complete, make sure that the icon of the installed printer appears in the Printers and Faxes window. Remove the CD-ROM from the CD-ROM drive. This completes the printer driver installation. 2-10 C450...
Page 45: For Windows 98/Me/2000/Nt 4.0
ROM drive. – Konica Minolta PCL Driver: User Software CD-ROM – Konica Minolta PostScript Driver: PostScript Printer Driver CD- Click the [Start] button, point to “Settings”, and then click “Printers”. The Printers window appears. Double-click the “Add Printer” icon. The Add Printer Wizard starts up.
Page 46 “Driver\PS-PPD” folder – For Windows 2000 Konica Minolta PCL driver: User Software CD-ROM “Driver\Drivers\bizhubC450” folder Konica Minolta PostScript driver: PostScript Printer Driver CD- ROM “Driver\Drivers” folder – For Windows NT 4.0 Konica Minolta PCL driver: User Software CD-ROM “Driver\Drivers\bizhubC450” folder Konica Minolta PostScript driver: PostScript Printer Driver CD- ROM “Driver\Drivers”...
Page 47 Installing the printer driver – When using a network connection, perform a test print after the net- work settings have been specified. When installation is complete, make sure that the icon of the installed printer appears in the Printers window. Remove the CD-ROM from the CD-ROM drive.
Page 48: Installing The Printer Driver Using Plug And Play
ROM drive. – Konica Minolta PCL Driver: User Software CD-ROM – Konica Minolta PostScript Driver: PostScript Printer Driver CD- Turn the main power of this machine on. The Add New Hardware Wizard starts up. Click the [Next] button. Select “Search for the best driver for your device (Recommended)”, and then click the [Next] button.
Page 49: For Windows Me/2000
– Konica Minolta PCL Driver: User Software CD-ROM – Konica Minolta PostScript Driver: PostScript Printer Driver CD- Turn the main power of this machine on. The Add New Hardware Wizard starts up. Select “Search for a suitable driver for my device (recommended)” (for Windows Me, select “Automatic search for a better driver (Recom-...
Page 50 – For Windows 2000 Konica Minolta PCL driver: User Software CD-ROM “Driver\Drivers\bizhubC450” folder Konica Minolta PostScript driver: PostScript Printer Driver CD- “Driver\Drivers” folder Click the [OK] button (for Windows Me, click the [Next] button), and then follow the on-screen instructions.
Page 51: For Windows Xp/Server 2003
– Konica Minolta PCL Driver: User Software CD-ROM – Konica Minolta PostScript Driver: PostScript Printer Driver CD- Turn the main power of this machine on. The Add New Hardware Wizard starts up. Select “Install from a list or specific location (Advanced)”, and then click the [Next] button.
Page 52 CD-ROM that contains the printer driver, and then click the [OK] button. Konica Minolta PCL driver: User Software CD-ROM “Driver\Drivers\bizhubC450” folder Konica Minolta PostScript driver: PostScript Printer Driver CD-ROM “Driver\Drivers” folder Click the [Next] button, and then follow the on-screen instructions. –...
Page 53: Uninstalling The Printer Driver
Installing the printer driver Uninstalling the printer driver If it becomes necessary to delete the printer driver, for example, when you want to reinstall the printer driver, follow the procedure below to delete the driver. For Windows 98/Me/2000/NT 4.0, click the [Start] button, point to “Set- tings”, and then click “Printers”.
Page 54: When Used With Macintosh
Installing the printer driver When used with Macintosh The installation procedure for the Macintosh printer driver differs depending on the Mac OS version and printer driver being used. Refer to the table below for the appropriate procedure for installing the printer driver on your Macin- tosh computer.
Page 55 Installing the printer driver On the Installation dialog box, click the [Continue] button. – From the second time the printer driver is installed and thereafter, the [Installation] button may appear as the [Upgrade] button. The printer driver is installed onto the Macintosh computer. When in- stallation is complete, a message appears.
Page 56: Selecting A Printer
Select the applicable connection method and printer name. Select “KONICA MINOLTA” from the “Printer Model” drop-down list. Select “KONICA MINOLTA C450 PS(P)”, and then click the [Add] but- ton. The selected printer is registered in the printer list.
Page 57 Installing the printer driver For Mac OS 9.2 After connecting this machine, it can be used as a printer by selecting “Post- Script printer” under “Chooser” and by specifying the printer description (PPD) file. First, copy the printer description (PPD) file onto the Macintosh computer. Insert the Macintosh printer driver CD-ROM into the Macintosh com- puter’s CD-ROM drive.
Page 58 Installing the printer driver Select the applicable PPD file, and then click the [Select] button. The setting screen for adding options appears. Select the options that are installed on this machine. Click the [OK] button. The chooser window appears again. Close the chooser window.
Page 59: Uninstalling The Printer Driver
Drag the following file, which is located in “Library”—“Printers”— “PPDs”—“Contents”—“Resources”—“en.lproj” of “Hard Disk”, to the “Trash” icon. – “KONICA MINOLTA C450.gz” Delete the unnecessary files from “Library”—“Printers”. For Mac OS 10.3, drag the following folder, which is located in “Li- brary”—“Printers” to the “Trash” icon.
Page 60: For Mac Os 9.2
Installing the printer driver For Mac OS 9.2 Drag PPD file “KONICAMINOLTAC450JVxxx”, which is located in “System Folder”—“Extensions”—“Printer Descriptions” of “Hard Disk”, to the “Trash” icon. The related printer driver files are deleted. Restart the Macintosh computer. This completes the uninstallation procedure. 2-26 C450...
Page 61: Setting Up Network Printing
Setting up network printing Setting up network printing Overview of network functions Network functions By connecting this machine to a network through the Ethernet port, this printing system can be used as a network printer. Printing system This machine Ethernet Network This printing system supports 10Base-T and 100Base-TX standards.
Page 62: Features Of The Network Functions
Setting up network printing Features of the network functions This printing system is equipped with the following network functions to flex- ibly support various network environments. - Automatic selection of 10Base-T or 100Base-TX (Fast Ethernet) - Supports multiple network protocols including TCP/IP, NetBEUI, IPX/ SPX, and AppleTalk (EtherTalk) - Supports SMB printing (Windows printing) from Windows 98 or Windows - Supports LPD/LPR over TCP/IP from Windows NT 4.0, Windows 2000 or...
Page 63 Setting up network printing With Macintosh You can print from your Macintosh computer using LPR or AppleTalk. You can connect this printing system to print server in an AppleTalk environ- ment and send print jobs from the Macintosh computer to this machine. C450...
Page 64: Network Connection Methods That Can Be Selected In Each Windows Operating System
Setting up network printing Network connection methods that can be selected in each Windows op- erating system This chapter describes the settings that must be specified for network print- ing. Setting procedures differ depending on the method of networking printing used (SMB, LPR, or IPP printing).
Page 65: Network Printing In A Netware Environment
Setting up network printing Network printing in a NetWare environment NetWare version Protocol used Emulation Service mode NetWare 4.x NDS/Bindery Pserver/Nprinter NetWare 5.x/6 Pserver TCP/IP NDPS(lpr) C450...
Page 66: Setting The Ip Address For Fhis Machine
Setting up network printing Setting the IP address for fhis machine Use this machine’s control panel to assign an IP address to this machine. Reminder When specifying network settings, follow the instructions of the network administrator. Setting the IP address Press the [Utility/Counter] key on this machine’s control panel, touch [Administrator Setting], and then enter the administrator password.
Page 67 Setting up network printing Detail Although the IP address is entered without using the DHCP server in the procedure described here, it is also possible to automatically assign the IP address from the DHCP server. When “DHCP Setting” is set to “ON”, the IP address, subnet mask, and gateway address settings are automat- ically assigned from the DHCP server on the network, so it is not neces- sary to assign them manually.
Page 68: Accessing Pagescope Web Connection
Setting up network printing Accessing PageScope Web Connection Setting the IP address for this machine enables you to access PageScope Web Connection. Use your Web browser to directly access PageScope Web Connection. To access PageScope Web Connection Start up the Web browser. In the “Address”...
Page 69: Smb Printing
Setting up network printing SMB printing You can use SMB printing (Windows printing) to print directly over the Micro- soft network from computers running Windows 98 or Windows Me. Operations on this machine Set the IP address for this machine. For the setting procedure, refer to “Set- ting the IP address for fhis machine”...
Page 70 Setting up network printing Specify settings for the following: SMB Print: Set whether to use the SMB printing service. Select “Ena- ble” here. NetBIOS Name: Specify the NetBIOS name (up to 15 alphanumeric characters). Print Service Name: Specify the printing service name (up to 31 alpha- numeric characters).
Page 71: Printer Driver Settings
Setting up network printing Printer driver settings For Windows 98/Me Click the [Start] button, point to “Settings”, and then click “Printers”. Right-click the icon of the installed printer, and then click “Properties”. On the Details tab, click the [Add Port] button. Select “Network”, and then click the [Browse] button.
Page 72: Lpr Printing
Setting up network printing LPR printing The LPR print service is supported as standard in Windows 2000, Windows XP, Windows NT 4.0, and Windows Server 2003. TCP/IP is used as the net- work protocol. Operations on this machine Set the IP address for this machine. –...
Page 73: For Windows Nt 4.0
Setting up network printing For Windows NT 4.0 Click the [Start] button, point to “Settings”, and then click “Printers”. Right-click the icon of the installed printer, and then click “Properties”. On the Ports tab, click the [Add Port] button. In the “Available Printer Ports” list, select “LPR Port”, and then click the [New Port] button.
Page 74: Ipp Printing (Windows 2000/Xp/Server 2003)
Setting up network printing IPP printing (Windows 2000/XP/Server 2003) The IPP (Internet Printing Protocol) print service is supported as standard in Windows 2000, Windows XP, and Windows Server 2003. TCP/IP is used as the network protocol. Operations on this machine Set the IP address for this machine.
Page 75 Setting up network printing On the Network tab, click “IPP”. Specify settings for the following: IPP Print: Set whether to perform IPP printing. Select “Enable” here. Printer Name: Specify the printer name (up to 127 alphanumeric char- acters). Printer Location: Specify the printer location (up to 127 alphanumeric characters).
Page 76: Installing The Printer Driver
– Konica Minolta PCL Driver: User Software CD-ROM – Konica Minolta PostScript Driver: PostScript Printer Driver CD- For Windows 2000, click the [Start] button, point to “Settings”, and then click “Printers”. For Windows XP/Server 2003, click the [Start] button, and then click “Printers and Faxes”.
Page 77 Setting up network printing Check that the printer name is displayed in the “Printers” list, and then click the [Next] button. Select whether to set the printer as the default printer, and then click the [Next] button. Click the [Finish] button to exit the Add Printer Wizard. Once the settings for the printer have been specified, you can use the printer in the same way as a default local printer.
Page 78: Printing With Netware
Setting up network printing Printing with NetWare The printer controller supports the following environments. Network printing in a NetWare environment NetWare Version Protocol Used Emulation Service Mode NetWare 4.x NDS/Bindery Pserver/Nprinter NetWare 5.x/6 Pserver TCP/IP NDPS(lpr) Note Before using bindery emulation, check that bindery emulation is compat- ible with the NetWare server.
Page 79 Setting up network printing In administrator mode of PageScope Web Connection, select “Net- Ware” from the Network tab, and then specify the following settings. NetWare Print: Select “Enable”. Frame Type: Select “Auto ”. (Select the frame type according to the network environment.) Mode: Select “Nprinter/Rprinter”.
Page 80 Setting up network printing Restart this machine (turn it off, then on again). Use the NetWare server console to display the print server screen, and then check that the created printer is shown as “Waiting for Job” for the connected printer (0). 3-20 C450...
Page 81: For Print Server Mode With Netware 4.X Bindery Emulation
Setting up network printing For print server mode with NetWare 4.x Bindery Emulation Before using bindery emulation, check that bindery emulation is compatible with the NetWare server. From a client computer, log on with Supervisor permissions to access the NetWare server where the Pserver is registered. Start up Pconsole.
Page 82 Setting up network printing In administrator mode of PageScope Web Connection, select “Net- Ware” from the Network tab, and then specify the following settings. NetWare Print: Select “Enable”. Frame Type: Select “Auto”. (Select the frame type according to the net- work environment.) Mode: Select “Pserver”.
Page 83 Setting up network printing Select the connection information and, in the active connection col- umn, check that the created Pserver is connected. C450 3-23...
Page 84: For Netware 4.X Remote Printer Mode (Nds)
Setting up network printing For NetWare 4.x remote printer mode (NDS) Log on to NetWare as an administrator from a client computer. Start up NWadmin. Select either the organization or organizational unit container that of- fers the print service, and then click “Print Services Quick Setup” on the “Tools”...
Page 85 Setting up network printing In administrator mode of PageScope Web Connection, select “Net- Ware” from the Network tab, and then specify the following settings. NetWare Print: Select “Enable”. Frame Type: Select “Auto”. (Select the frame type according to the net- work environment.) Mode: Select “Nprinter/Rprinter”.
Page 86 Setting up network printing Restart this machine (turn the main power off, then on again). Use the NetWare server console to load PSERVER.NLM. Use the NetWare server console to display the print server screen, and then check that “C450” (created printer) is shown as “Waiting for Job” for the connected printer (0).
Page 87: For Netware 4.X/5.X/6 Print Server Mode (Nds)
Setting up network printing For NetWare 4.x/5.x/6 print server mode (NDS) To use the Print Server mode, the IPX protocol must be loaded on the Net- Ware server. Log on to NetWare as an administrator from a client computer. Start up NWadmin. Select either the organization or organizational unit container that of- fers the print service, and then click “Print Services Quick Setup (non- NDPS)”...
Page 88 Setting up network printing In administrator mode of PageScope Web Connection, select “NetWare” from the Network tab, and then specify the following set- tings. NetWare Print: Select “Enable”. Frame Type: Select “Auto”. (Select the frame type according to the net- work environment.) Mode: Select “Pserver”.
Page 89 Setting up network printing Use the NetWare server console to load MONITOR.NLM. Select the connection information and, in the active connection col- umn, check that the created Pserver is connected. C450 3-29...
Page 90: For Netware 5.X/6 Novell Distributed Print Service (Ndps)
Setting up network printing For NetWare 5.x/6 Novell Distributed Print Service (NDPS) Before specifying settings for NDPS, check that the NDPS broker and NDPS manager have been created and loaded. Also, before performing the following procedure, check that the TCP/IP pro- tocol has been set in the NetWare server, and check that the IP address has been set for this machine and that this machine is on.
Page 91: Setting Up A Client (Windows) Settings When Using The Netware Server
Konica Minolta PCL driver:\User Software CD-ROM “Driver\Drivers\bizhubC450” folder PostScript Printer Driver CD-ROM “Driver\PS-PPD” folder – For Windows NT4.0/2000/XP/Server 2003 Konica Minolta PCL driver: User Software CD-ROM “Driver\Drivers\bizhubC450” folder PostScript Printer Driver CD-ROM “Driver\Drivers” folder Follow the on-screen instructions to complete the installation. C450...
Page 92: Printing With Macintosh
Setting up network printing Printing with Macintosh Operations on this machine Set the IP address for this machine. For the setting procedure, refer to “Set- ting the IP address for fhis machine” on page 3-6. In PageScope Web Connection, specify the settings described below for Ap- pleTalk.
Page 93: Setting The Macintosh Computer
Setting up network printing Setting the Macintosh computer Use the Macintosh computer that is connected to specify the TCP/IP and AppleTalk settings. Reminder For network settings, consult the network administrator. For printer driver installation, refer to “Installing the printer driver” on page 2-1.
Page 94: For Mac Os 9.2
Setting up network printing For Mac OS 9.2 On the Apple menu, point to “Control Panel”, and then click “Apple- Talk”. From the “Connect via” drop-down list, select “Ethernet”. On the Apple menu, point to “Control Panel”, and then click “TCP/IP”. From the “Connect via”...
Page 95: Various Printing Methods
Various printing methods Various printing methods Printing operations For Windows Data can be printed from an application. Print jobs are specified from the application software. Open the data in the application, “File”, and then click “Print”. Check that the printer name has been selected in “Printer Name” or “Select Printer”.
Page 96: Test Printing
Various printing methods Click the [Preferences] button or the [Properties] button to change the printer driver settings as necessary. – By clicking the [Preferences] button or the [Properties] button on the Print dialog box, you can specify the settings of each model on the printer driver dialog box that appears.
Page 97: For Macintosh
Various printing methods For Macintosh Printing is possible when the printer driver is installed and the network set- tings have been specified. Print jobs are specified from the application soft- ware. For Mac OS X Open the data in the application, “File”, and then click “Print”. Check that the printer name has been selected.
Page 98 Various printing methods For Mac OS 9.2 Open the data in the application, “File”, and then click “Print”. Check that the printer name has been selected. Select “General”. Specify the Pages and the number of copies to print, and then click the [Print] button.
Page 99: Setting The Printing Functions
Various printing methods Setting the printing functions The functions of this machine such as sorting and folding can be set when printing from a computer. Depending on the operating system running on the connected computer, the setting procedure of this machine’s functions may differ.
Page 100 Various printing methods Function Overview Printer driver PostS cript Collate Specifies whether to print multiple copies in sets. Offset When printing multiple copies, shifts the output position of each set. Skip Blank Pages Does not print blank pages in data. User Authentication/ Printing is performed after the registered (Mac...
Page 101: Function Overview
Portrait Landscape Operating system Printer driver Refer to Windows Konica Minolta PCL “Specifying the setup tab settings” on page 5-5 Konica Minolta PostScript “Specifying the setup tab settings” on page 6-7 PostScript PPD “Specifying the paper tab settings” on...
Page 102: Original Size And Output Size
Mac OS 9.2 “Page attributes (Basic settings)” on page 8-6 Note Only the output paper sizes can be specified with the PostScript PPD driver for Windows and the Macintosh and with the Konica Minolta Post- Script driver for the Macintosh. C450...
Page 103: Zoom (Enlargement And Reduction)
Enlarged Original Reduced Operating system Printer driver Refer to Windows Konica Minolta PCL “Specifying the setup tab settings” on page 5-5 Konica Minolta PostScript “Specifying the setup tab settings” on page 6-7 PostScript PPD “Specifying the device options tab settings”...
Page 104: Input Tray (Paper Source)
“Specifying the setup tab settings” on page 6-7 PostScript PPD “Specifying the paper tab settings” on page 7-4 Note With the Konica Minolta PCL driver for Windows, the paper type settings can be pre-set by specifying the paper type of the paper drawer. 4-10 C450...
Page 105: Print Type (Duplex Printing/Booklet Printing)
Booklet printing Print data Printout Operating system Printer driver Refer to Windows Konica Minolta PCL “Specifying the setup tab settings” on page 5-5 Konica Minolta PostScript “Specifying the layout tab settings” on page 6-14 PostScript PPD “Specifying the device options tab settings”...
Page 106: Printing Multiple Pages On One Page
6in1 9in1 16in1 Operating system Printer driver Refer to Windows Konica Minolta PCL “Specifying the setup tab settings” on page 5-5 Konica Minolta PostScript “Specifying the layout tab settings” on page 6-14 PostScript PPD “Specifying the layout tab settings” on...
Page 107: Stapling And Hole Punching
FS-603 is installed. When using optional finisher FS-603, the punch kit must be installed. Operating system Printer driver Refer to Windows Konica Minolta PCL “Specifying the setup tab settings” on page 5-5 Konica Minolta PostScript “Specifying the layout tab settings” on page 6-14 PostScript PPD “Specifying the device options tab settings”...
Page 108: Output Method (Job Management)
You can select “Secured Print”, which requires a password to print, or “Save in User Box”, which saves documents in a document folder. Operating system Printer driver Refer to Windows Konica Minolta PCL “Specifying the setup tab settings” on page 5-5 Konica Minolta PostScript “Specifying the setup tab settings” on page 6-7 PostScript PPD “Specifying the device options tab settings”...
Page 109 Various printing methods Operating system Printer driver Refer to Mac OS X PostScript PPD “Copies & Pages (General settings)” on page 9-7 and “Finishing” on page 9-12 Mac OS 9.2 “Copies & Pages (General settings)” on page 9-7 and “Printer specific options (Fin- ishing options 1 to 4)”...
Page 110: Skip Blank Pages (Saving Paper)
Does not print blank pages in the data. Operating system Printer driver Refer to Windows Konica Minolta PCL “Specifying the setup tab settings” on page 5-5 Authentication When the authentication settings have been applied on this machine, you must enter the required user ID and password.
Page 111: Overlay
Various printing methods Operating system Printer driver Refer to Windows Konica Minolta PCL “Specifying the per page setting tab set- tings” on page 5-18 Konica Minolta PostScript “Specifying the per page setting tab set- tings” on page 6-18 PostScript PPD “Specifying the device options tab settings”...
Page 112: Watermark
Watermark Prints a watermark (text stamp) on the page being printed. Operating system Printer driver Refer to Windows Konica Minolta PCL “Specifying the watermark tab settings” on page 5-25 Konica Minolta PostScript “Specifying the watermark tab settings” on page 6-19 Quality adjustment Adjusts the image quality.
Page 113: Use Printer Fonts (Substitute Fonts)
Use printer fonts (Substitute fonts) Specifies the replacement of TrueType fonts with printer fonts. Operating system Printer driver Refer to Windows Konica Minolta PCL “Specifying the font tab settings” on page 5-30 Konica Minolta PostScript “Specifying the quality tab settings” on page 6-21 PostScript PPD “Specifying the device options tab settings”...
Page 114: For Windows
For the settings that can be specified with each printer driver, refer to the fol- lowing: - Konica Minolta PCL Driver: “Setting up the PCL driver” on page 5-1 - Konica Minolta PostScript Driver: “Setting up the PostScript driver (Win- dows)”...
Page 115 Various printing methods PCL Driver PostScript Driver C450 4-21...
Page 116 Various printing methods PostScript PPD Driver Note Use each tab in the dialog box to set up the printer driver. To specify custom settings, click Print in the application, and then click the [Preferences] button on the Print dialog box. The settings specified on the Print dialog box apply only to the current file.
Page 117: For Macintosh
Various printing methods For Macintosh The functions of this machine that can be used when printing can be speci- fied on the Print dialog box or the Page Setup dialog box. The settings can only be applied while using the application. When the ap- plication is exited, the settings return to their default settings.
Page 118 Various printing methods For the settings that can be specified with each printer driver, refer to the fol- lowing: - OS X: “Setting up the PPD driver (Mac OS X)” on page 9-1 - OS 9.2: “Setting up the PPD driver (Mac OS 9.2)” on page 8-1 Note The contents of the Print dialog box and the Page Setup dialog box may differ.
Page 119: Setting Up The Pcl Driver
Setting up the PCL driver Setting up the PCL driver Settings Common settings The following describes the common settings and buttons that are displayed on all tabs. Button Function Click this button to close the dialog box and apply any settings that have been changed.
Page 120: Setup Tab
Setting up the PCL driver Button Function View When “Paper” is selected, a preview of the page layout as specified in the current settings is displayed and a preview im- age of the print job can be checked. When “Printer” is selected, a printer figure is displayed showing any options, such as the paper drawer, that are installed on this machine.
Page 121: Overlay Tab
Setting up the PCL driver Overlay tab Item Function Overlay Specifies overlay printing. Watermark tab Item Function Watermark Prints a watermark (text stamp) on the document being printed. Distribution Number Stamping Prints the number of the copy. Quality tab Item Function Select Color Specifies the color for printing.
Page 122: Version Tab
Setting up the PCL driver Item Function Recipients Displays registered numbers for the recipient or Phone- book. Version tab Item Function Version Displays the version of the printer driver. Option tab Item Function Option Specifies the options that are installed on this machine. Option Information Automatically specifies the printer driver option settings.
Page 123: Specifying The Setup Tab Settings
Setting up the PCL driver Specifying the setup tab settings Printing to suit the paper size You can enlarge or reduce documents created when printing to match the output paper size. Click the setup tab. From the “Original Size” and “Output Size” drop-down lists, select the desired settings.
Page 124: Saving A Custom Size
Setting up the PCL driver Saving a custom size A custom size can be specified and saved in advance as described below. From the “Output Size” drop-down list, select “Custom Size Settings”. The Custom Size Settings dialog box appears. Specify settings for the following: List of Custom Sizes: Select the size for the custom size being set.
Page 125: Selecting The Paper Source
Setting up the PCL driver Selecting the paper source When changing the paper type, you can register it to an input tray and you will be able to select the input tray according to the desired paper type. Click the setup tab. From the “Paper Source”...
Page 126 Setting up the PCL driver Select the desired setting from the “Paper Type” drop-down list, and then click the [OK] button. If “Transparency” is selected as the paper type, you can specify transparency interleaving. When the “Transparency Interleave” check box is selected, the Transparency Interleave Settings dialog box appears, allowing you to select the source of the interleaf paper.
Page 127: Specifying Duplex/Booklet Printing
Setting up the PCL driver Specifying duplex/booklet printing You can print a document onto both sides of a page or in a booklet format (two facing pages). This comes in handy when you want to bind multiple- page documents. Click the setup tab. From the “Print Type”...
Page 128: Printing Multiple Pages On One Page (N In 1)
Setting up the PCL driver Printing multiple pages on one page (N in 1) You can print exited, the settings return to their on one page. This comes in handy when you want to reduce the number of output pages. Click the setup tab.
Page 129: Setting The File Margin
Setting up the PCL driver Setting the File Margin File margins are added to the document before it is printed. Click the setup tab. Select the “File Margin” check box. To set the width of the file margin, click the [Details] button, and then specify the desired settings in the File Margin Details dialog box that appears.
Page 130: Stapling
Setting up the PCL driver Stapling Multiple-page documents can be stapled. The staple function is available only when the optional finisher is installed. Click the setup tab. Select the “Staple” check box. From the drop-down list, specify the number of staples and the sta- pling position.
Page 131: Selecting The Output Method
Setting up the PCL driver Selecting the output method Not only can you print directly, but you can select “Secured Print”, which re- quires a password to print, or “Save in User Box”, which saves documents in the document folder. Click the setup tab.
Page 132: Save In User Box
Setting up the PCL driver the document is available and can be printed. Note For details on the box functions of this machine, refer to the C450 user’s guide [Box operations]. Save in user box When “Save in User Box” or “Save in User Box and Print” is selected, specify the file name and box number in the dialog box that appears for entering the file name and box number.
Page 133: Proof And Printing
Setting up the PCL driver Proof and printing When a print job is sent, this machine stops printing temporarily after part of the document has been printed. The remaining print job is stored in this machine as a print job. When printing multiple copies, you can print the remaining part of the print job after checking the print re- sults.
Page 134: Specifying User Authentication Settings
Setting up the PCL driver Specifying user authentication settings If user authentication settings have been specified on this machine, a user name must be entered. Click the setup tab. Click the [User Authentication/Account Track] button. Select the “User Authentication” check box, and then enter the user name and password.
Page 135: Specifying Account Track Settings
Setting up the PCL driver Specifying account track settings If account track settings have been specified on this machine, you must en- ter an account password in order to print a job. Click the setup tab. Click the [User Authentication/Account Track] button. Select the “Account Track”...
Page 136: Specifying The Per Page Setting Tab Settings
Setting up the PCL driver Specifying the per page setting tab settings Printing documents with a front cover/back cover Click the per page setting tab. Select the “Front Cover Page” and “Back Cover Page” check boxes. To print on the front cover and back cover, select “Printed”. To only add a blank page, select “Blank”.
Page 137: Printing Multiple Pages
Setting up the PCL driver Printing multiple pages The “Per Page Setting” function comes in handy when you want to change the input tray during a print job when printing multiple pages. Per page setting You can specify the print type and input tray for each page. Click the per page setting tab.
Page 138 Setting up the PCL driver Note For an existing list, click the [Edit] button to change the selected page settings, or click the [Delete] button to delete them. Click [↑] or [↓] to change the page number starting with the smallest page number.
Page 139: Specifying The Overlay Tab Settings
You must pre-register forms to be printed. For details, refer to “Editing forms” on page 5-23. Create the print data using any application. From the “File” menu, select “Print”. Select the KONICA MINOLTA C450 PCL printer, and then click the [Preferences] button. Click the Overlay tab. Select “Print Overlay”.
Page 140 Setting up the PCL driver From the list, select the form that you want to print. Select the file name, and then click the [OK] button. – The Print dialog box appears again. Click the [OK] button. Overlay printing is performed. 5-22 C450...
Page 141: Editing Forms
“Create Overlay” check box, and then specify the document that you want to register. Create the form data using any application. From the “File” menu, select “Print”. Select the KONICA MINOLTA C450 PCL printer, and then click the [Preferences] button. Click the overlay tab. Select the “Create Overlay”.
Page 142 Setting up the PCL driver Specify the storage location for the form data, and then enter the file name in the “File name” box. Click the [OK] button. Select the file, and then click the [OK] button. – The Print dialog box appears again. Click the [OK] button.
Page 143: Specifying The Watermark Tab Settings
Setting up the PCL driver Specifying the watermark tab settings Printing a watermark You can print specific text in the background as a watermark. Click the watermark tab. Select the “Watermark” check box. From the drop-down list, select the watermark that you want to print. Specify the desired settings for “Type”...
Page 144: Editing A Watermark
Setting up the PCL driver Editing a watermark You can change the fonts and position of the watermark and you can register a new one. Click the watermark tab. Select the “Watermark” check box. Click the [Edit] button. Specify settings for the following: [Add]: Click to enter a new watermark in the watermark text box.
Page 145: Printing The Document Number
Setting up the PCL driver Printing the document number When printing multiple copies, you can print the number of each document. Click the watermark tab. Select the “Distribution Number Stamping” check box. Specify settings for the following: Pages to Print: Specifies the pages where the numbering is to be print- Starting Number: Specifies the starting number.
Page 146: Specifying The Quality Tab Settings
Setting up the PCL driver Specifying the quality tab settings Specifying settings Click the quality tab. Specify settings for the following: Item Function Select Color Specifies the color for printing. Color: Prints in color. Grayscale: Prints in grayscale. 2 Color: Prints the two colors selected from the drop-down list. Original Image Type Specifies the contents of the original document.
Page 147 Setting up the PCL driver To adjust the quality, select “Simple” or “Detailed”, and then click the [Settings] button beside the desired setting. In the Quality Adjustment Settings dialog box that appears, specify the brightness and color balance. To adjust the quality, select “Detailed”, and then click the [Settings] button beside “Figure/Table/Graph”.
Page 148: Specifying The Font Tab Settings
Setting up the PCL driver Specifying the font tab settings Specifying settings You can replace the TrueType fonts used in Windows with the printer fonts of this machine. Using the printer fonts will shorten the printing time, however, there may be a difference in the screen display and the print results.
Page 149: Specifying The Fax Tab Settings
For details, refer to “Specifying the option tab settings” on page 5-46. Create the data you want to send using any application. From the “File” menu, select “Print”. Select the KONICA MINOLTA C450 PCL printer, and then click the [Preferences] button. Click the “FAX” tab.
Page 150 Setting up the PCL driver Check the information, and then click the [OK] button. From the “Resolution” drop-down list, select the desired setting. Click the Details button. The [Fax Mode Details] dialog box appears. To print a file after a fax is sent, select the “Print Recipient File” check box.
Page 151 Setting up the PCL driver When transmitting a confidential fax, select the “Sub-Address” and “Send ID” check boxes, and then enter the sub address and transmission ID. It is possible to send confidential communications to another fax model using F codes. –...
Page 152 Setting up the PCL driver – Up to 38 characters (numbers 0 through 9, hyphens (-), spaces, #, *, E, P, and T) can be entered in the “FAX Number” text box. 5-34 C450...
Page 153 Setting up the PCL driver Click the [Phone Book] button. – For details on registering recipients in the Phonebook, refer to “Registering a recipient in the phonebook” on page 5-41. The Phonebook dialog box appears. Select the recipient or group where the fax is to be sent. Click the [Add Recipients] button.
Page 154 Setting up the PCL driver When adding a cover sheet, select the “FAX Cover Sheet” check box. – For setting up a fax cover sheet, refer to “Creating a cover sheet” on page 5-37. Click the [OK] button. The Print dialog box appears again. Click the [OK] button.
Page 155: Creating A Cover Sheet
Setting up the PCL driver Creating a cover sheet You can create a fax cover sheet and attach it to the fax message. From the Printing Preferences dialog box, select the “FAX Cover Sheet” check box on the FAX tab. Click the [Setting] button.
Page 156 Setting up the PCL driver – Details: Specify the recipient information individually. Select “De- tails”, and then select the “Company”, “Department”, “Name”, or “FAX Number” check box for the information to be entered in the recipient information line. By clicking the [Settings] button, you can select “Load with Joint Name”, “Change Each Recipient”, or “Load Set Information”...
Page 157 Setting up the PCL driver – Depending on the type of characters entered and the settings spec- ified with “Style”, all characters entered may not be displayed on the cover sheet. After entering the information, check that the infor- mation is displayed properly in the image in the “Preview” box. –...
Page 158 Setting up the PCL driver To arrange cover sheets with a company logo, maps, or other images, select the “Image” check box, click the [Browse] button, and then specify the file. – You can adjust the position of the image by specifying numerical values in the “X”...
Page 159: Registering A Recipient In The Phonebook
Setting up the PCL driver Registering a recipient in the phonebook You can register the recipient of a fax message in the Phonebook. Registering recipient information In the printing preferences dialog box, click the [Phone Book] button in the fax tab. The Phonebook dialog box appears.
Page 160 Setting up the PCL driver – Up to 38 characters (numbers 0 through 9, hyphens (-), spaces, #, *, E, P, and T) can be entered in the “Fax No.” text box. Click the [OK] button. The recipient is registered and appears in the “Recipient” list. Click the [OK] button.
Page 161 Setting up the PCL driver To delete recipient information or a folder, select the recipient or folder being deleted, and then click the [Delete] button. When a recipient is registered in the Phonebook for the first time, the Save As dialog box, described in step 5, appears so that the Phonebook can be saved as a file.
Page 162: Registering A Group
Setting up the PCL driver Registering a group You can pre-register the recipients to which you want to send the same fax. This is called a “group”. On the Phonebook dialog box, select the recipient to be registered in the group. The selected recipient is highlighted.
Page 163 Setting up the PCL driver Note Ten groups have been set. You cannot add or delete any group. A total of 100 recipients can be registered in all 10 groups. When a recipient is registered in the Phonebook for the first time, the Save As dialog box appears so that the Phonebook can be saved as a file.
Page 164: Specifying The Option Tab Settings
For Windows 98/Me/2000/NT 4.0, click the [Start] button, point to “Set- tings”, and then click “Printers”. For Windows XP/Server 2003, click the [Start] button, and then click “Printers and Faxes”. Right-click the “KONICA MINOLTA C450 PCL” icon, and then click “Properties”. Click the option tab.
Page 165 Setting up the PCL driver Note To automatically set the installed options, enter the printer name or IP ad- dress of this machine in the “Printer Name or IP Address” box under “Op- tion Information”, and then click the [Gather Option Information] button. C450 5-47...
Page 166: Saving The Driver Settings
Setting up the PCL driver 5.10 Saving the driver settings For PCL drivers, you can save the setting values of the changed driver and recall them as necessary. Saving the driver settings Change the driver settings from the setup tab and the Per Page Setting tab.
Page 167 Setting up the PCL driver Enter the file name in the “Name” text box. Enter a message in the “Comment” text box as necessary. Specify a folder in the “Save Location” box, and then click the [OK] but- ton. The settings are registered in a library. Note The file extension is “.ksf”.
Page 168: Restore The Settings
Setting up the PCL driver Restore the settings Click the [Save/Restore Setting] button on the Printing Preferences di- alog box, and then select “Restore Saved Setting”. From the “Library” list, select the desired settings file. Click the [OK] button. The setting values are recalled, and the Printing Preferences dialog box appears again.
Page 169: Setting Up The Postscript Driver (Windows)
Setting up the PostScript driver (Windows) Setting up the PostScript driver (Win- dows) Settings Common settings The following describes the common settings and buttons that are displayed on all tabs. Button Function Click this button to close the dialog box and apply any settings that have been changed.
Page 170: Setup Tab
Setting up the PostScript driver (Windows) Button Function Save Click this button to save the current settings and to view them at a later time. Edit Click this button to change the saved settings. Default Click this button to return the settings to their defaults, which were selected when the driver was installed.
Page 171: Layout Tab
Setting up the PostScript driver (Windows) Item Function Output Tray Selects the tray where to output the printed pages. Output Method Specifies output methods, such as “Secured Print” and “Save in User Box”. User Authentication/ Specifies the user ID and password for “User Authentication” and Account Track password and box name for “Secured Print”...
Page 172: Quality Tab
Setting up the PostScript driver (Windows) Quality tab Item Function Select Color Specifies the color for printing. Original Image Type Specifies the contents of the original document. Prints with a quality suitable for the original document. Quality Adjustment Adjusts the image quality. You can select “Simple” to adjust the en- tire document or “Detailed”...
Page 173: Option Tab
Setting up the PostScript driver (Windows) Item Function Job Timeout Printer stops printing when a print job is not completed within the specified time. Print Queue Timeout Printer stops printing when the printer does not receive data within the specified time from when the job was sent. Minimum Font Size Downloaded as Outline.
Page 174: Settings Tab
Setting up the PostScript driver (Windows) Settings tab Item Function Displays message when Displays a message when you want to perform a function that can- a prohibited action oc- not be set when the printer driver is being used. curs. Use the Server Property Uses the added registered paper in [Server Properties].
Page 175: Specifying The Setup Tab Settings
Setting up the PostScript driver (Windows) Specifying the setup tab settings Printing to suit the paper size You can enlarge or reduce documents created when printing to match the output paper size. Click the setup tab. From the “Original Size” and “Output Size” drop-down lists, select the desired settings.
Page 176: Saving A Custom Size
Setting up the PostScript driver (Windows) Saving a custom size A custom size can be specified and saved in advance as described below. From the “Original Size” and “Output Size” drop-down lists, select “Custom Size Settings”. The Custom Size Settings dialog box appears. Specify settings for the following: –...
Page 177: Selecting The Output Method
Setting up the PostScript driver (Windows) Selecting the output method Not only can you print directly, but you can select “Secured Print”, which re- quires a password to print, or “Save in User Box”, which saves documents in the document folder. Click the setup tab.
Page 178: Secured Printing
Setting up the PostScript driver (Windows) Secured printing If “Secured Print” was selected, enter the user ID and password in the dialog box that appeared. To print the document, touch [System User Box], then [Secured Docu- ment Box] in Box mode of this machine. After entering the user ID and password, the document is available and can be printed.
Page 179: Save In User Box
Setting up the PostScript driver (Windows) Save in user box When “Save in User Box” or “Save in User Box and Print” is selected, specify the file name and box number in the dialog box that appears for entering the file name and user box number. Note For details on the box functions of this machine, refer to the C450 user’s guide [Box operations].
Page 180: Specifying User Authentication Settings
Setting up the PostScript driver (Windows) Specifying user authentication settings If user authentication settings have been specified on this machine, a user name must be entered. Click the setup tab. Click the [User Authentication/Account Track] button. Enter the user name and password in the dialog box that appears. Note If this machine has been set to permit public users, the machine can be used without a user name and password.
Page 181: Specifying Account Track Settings
Setting up the PostScript driver (Windows) Specifying account track settings If account track settings have been specified on this machine, you must en- ter an account password in order to print a job. Click the setup tab. Click the [User Authentication/Account Track] button. Select the “Account Track”...
Page 182: Specifying The Layout Tab Settings
Setting up the PostScript driver (Windows) Specifying the layout tab settings Printing multiple pages on one page (N in 1) You can print multiple document pages on one page. You can also specify the “Booklet” setting to fold the printouts in two to make a booklet. Click the layout tab.
Page 183 Setting up the PostScript driver (Windows) To change the border line and printing order settings, click the [Com- bination Details] button, and then change the settings in the dialog box that appears. Note When printing a job that contains pages of different sizes and orienta- tions, images may be missing or overlapping when the document is print- When optional finisher FS-603 is installed and “Booklet”...
Page 184: Duplex Printing
Setting up the PostScript driver (Windows) Duplex printing You can print a document onto both sides of a page. This comes in handy when you want to bind multiple-page documents. Click the layout tab. From the “Double Sides” drop-down list, select “Double-Sided”. Note The binding orientation can be specified from the “Binding Position”...
Page 185: Hole Punching
Setting up the PostScript driver (Windows) Hole punching Holes can be punched into the printed document. The hole punch function is available only when optional finisher FS-507 or FS-603 is installed. When using optional finisher FS-603, the punch kit must be installed.
Page 186: Specifying The Per Page Setting Tab Settings
Setting up the PostScript driver (Windows) Specifying the per page setting tab settings Printing documents with a front cover/back cover Click the per page setting tab. From the “Front Cover Page” and “Back Cover Page” drop-down lists, select the desired printing settings. To print on the front cover and back cover, select “Printed”.
Page 187: Specifying The Watermark Tab Settings
Setting up the PostScript driver (Windows) Specifying the watermark tab settings Printing a watermark You can print specific text in the background as a watermark. Click the watermark tab. From the drop-down list, select the watermark that you want to print. Specify settings for the following: Transparent: The watermark is transparent.
Page 188: Editing A Watermark
Setting up the PostScript driver (Windows) Editing a watermark You can change the fonts and position of the watermark and you can register a new one. Click the watermark tab. To create a watermark, click the [Add] button. – To change a watermark, select the watermark to be changed, and then click the [Edit] button.
Page 189: Specifying The Quality Tab Settings
Setting up the PostScript driver (Windows) Specifying the quality tab settings Specifying settings Click the quality tab. Specify settings for the following: – Original Image Type Specifies the contents of the original document. Prints with a qual- ity suitable for the original document. Document: Prints with a quality suitable for documents with many characters.
Page 190: Font Settings
Setting up the PostScript driver (Windows) Font settings You can replace the TrueType fonts used in Windows with the printer fonts of this machine. Click the [Font Settings] button. Specify settings for the following: Download Font Format: Select the TrueType downloading method. User Printer Fonts: Replace TrueType fonts with the printer fonts.
Page 191: Specifying The Option Tab Settings
For Windows 2000/NT 4.0, click the [Start] button, point to “Settings”, and then click “Printers”. – For Windows XP/Server 2003, click the [Start] button, and then click “Printers and Faxes”. Right-click the “KONICA MINOLTA C450 PS” icon, and then click “Properties”. Click the option tab. C450 6-23...
Page 192 Setting up the PostScript driver (Windows) Select the installed option from the drop-down list. Note The installed option can be automatically registered in the “Option” list by clicking the [Gather Option Information] button when connected to this machine. 6-24 C450...
Page 193: Saving The Driver Settings
Setting up the PostScript driver (Windows) Saving the driver settings For PostScript drivers, you can save the setting values of the changed driver and recall them as necessary. Saving the driver settings Change the driver settings from the setup tab and the layout tab. Click the [Save] button.
Page 194: Restore The Settings
Setting up the PostScript driver (Windows) Enter the file name in the “Name” text box. Enter a message in the “Comment” text box as necessary. Specify whether to register the watermark as public or private. Click the [OK] button. The settings are registered in a library. Note The file extension is “.ksf”.
Page 195: Changing The Settings
Setting up the PostScript driver (Windows) Changing the settings On the Printing Preferences dialog box, click the [Edit] button. From the list, select the file that you want to change, and then change the setting. To delete the file, click the [Delete] button. Click the [Options] button, check the settings to recall, and then click the [OK] button.
Page 196 Setting up the PostScript driver (Windows) 6-28 C450...
Page 197: Setting Up The Ppd Driver (Windows)
Setting up the PPD driver (Windows) Setting up the PPD driver (Windows) Settings Paper tab Item Function Paper size Specifies the paper size. Layout Specifies the number of pages printed on one page. Orientation Specifies the orientation. Rotated Rotates the paper. Paper source Selects the input tray.
Page 198: Graphics Tab
Setting up the PPD driver (Windows) Graphics tab Item Function Resolution Specifies the print resolution. Color Control Specifies whether to adjust the color to that on the screen. Halftone Specifies the halftone number of lines and the pattern angle. Other Prints a negative or mirror image.
Page 199: Postscript Tab
Setting up the PPD driver (Windows) Item Function Grayscale (Photo) Specifies whether to enable grayscale of photos in a document. Screening (Photo) Specifies screening of photos in a document. Smoothing (Photo) Specifies smoothing of photos in a document. Color Matching (Charts Adjusts the color quality of a chart and graph in a document to the and Graphs) text or photo settings.
Page 200: Specifying The Paper Tab Settings
Setting up the PPD driver (Windows) Specifying the paper tab settings You can specify the orientation and number of pages to be printed on one page when printing. Specifying settings Click the Paper tab. Specify settings for the following: Paper size: Specifies the paper size. Layout: Specifies printing multiple pages on one page (N in 1 printing).
Page 201: Specifying The Device Options Tab Settings
Setting up the PPD driver (Windows) Specifying the device options tab settings You can specify advanced functions such as the finisher function and color adjustments from the device options tab. Specifying setting Click the device options tab. Select a function, and then select the setting from the “Change setting for”...
Page 202 Setting up the PPD driver (Windows) Note The fold function is available only when optional finisher FS-507 or FS- 603 is installed. Number of pages that can be stapled when FS-507 is installed: Up to 50 pages on 8-1/2 × 11 w or smaller plain paper, and up to 25 pages on 8- 1/2 ×...
Page 203: Specifying The Options
Specifying settings For Windows 98/Me, click the [Start] button, point to “Settings”, and then click “Printers”. Right-click the “KONICA MINOLTA C450 PS(P)” icon, and then click “Properties”. Click the device options tab. Select a function, and then select the setting from the “Change setting for”...
Page 204 Setting up the PPD driver (Windows) Note For the items and functions that can be specified, refer to “Settings” on page 7-1. C450...
Page 205: Setting Up The Ppd Driver (Mac Os 9.2)
Setting up the PPD driver (Mac OS 9.2) Setting up the PPD driver (Mac OS 9.2) Settings The functions of this machine can be specified on the Paper Setup and Print dialog boxes displayed from an application. The settings can only be applied while using the application. When the ap- plication is exited, the settings return to their defaults.
Page 206 Setting up the PPD driver (Mac OS 9.2) Page setup items Menu Item Function Page Attributes Paper Specifies the paper size. Orientation Specifies the orientation. Scale Specifies the enlargement and reduction ratio. PostScript Options Flip Horizontal Prints the image flipped horizontally. Flip Vertical Prints the image flipped vertically.
Page 207: Print Dialog Box
Setting up the PPD driver (Mac OS 9.2) Print dialog box Print item Menu Item Function General Copies Specifies the number of copies to print. Collated Prints multiple copies in sets. Pages Specifies the print range to print. Paper Source Selects the input tray.
Page 208 Setting up the PPD driver (Mac OS 9.2) Menu Item Function Layout Pages per sheet Specifies the number of pages to print on one page. Layout direction Specifies the page order for printing multiple pages on one page. Border Specifies the borders around pages. Job Logging When a PostScript Specifies the PostScript error report conditions.
Page 209 Setting up the PPD driver (Mac OS 9.2) Menu Item Function Finishing Options 3 Stop Stops printing temporarily after part of the doc- ument has been printed so that the proof print can be checked. Resolution Specifies the print resolution. Color Selection Specifies whether to print in color or grayscale.
Page 210: Page Setup
Setting up the PPD driver (Mac OS 9.2) Page setup Page attributes (Basic settings) Select “Paper Setup” or “Page Setup” from the “File” menu. Select “Page Attributes”. Specify settings for the following: Paper: Specifies the paper size. Orientation: Specifies the orientation. Scale: Specifies the enlargement and reduction ratio.
Page 211 Setting up the PPD driver (Mac OS 9.2) Note The folding function can be selected from the screen that is displayed when “Layout” is selected in the Print dialog box. C450...
Page 212: Custom Page Sizes
Setting up the PPD driver (Mac OS 9.2) Custom page sizes Select “Paper Setup” or “Page Setup” from the “File” menu. Select “Custom Page Sizes”. Specify settings for the following: Paper Size: Specifies the paper size. Margins: Specifies the paper margins. Custom Page Size Name: Enter the registered name for the specified paper size and margin, and then click the [OK] button.
Page 213: Postscript Options
Setting up the PPD driver (Mac OS 9.2) PostScript options Select “Paper Setup” or “Page Setup” from the “File” menu. Select “PostScript Options”. Specify settings for the following: Visual Effects: Provides “Flip Horizontal”, “Flip Vertical”, and “Invert Image” (negative image). Substitute Fonts: Replaces some fonts with printer fonts.
Page 214: Printing
Setting up the PPD driver (Mac OS 9.2) Printing General (Basic settings) From the “File” menu, select “Print”. Select “General”. 8-10 C450...
Page 215 Setting up the PPD driver (Mac OS 9.2) Specify settings for the following: Copies: Specifies the number of copies to print. Collated: Prints multiple copies in sets. Pages: Specifies the print range to print. Paper Source: Selects the input tray. C450 8-11...
Page 216: Layout (Printing Multiple Pages On One Page)
Setting up the PPD driver (Mac OS 9.2) Layout (Printing multiple pages on one page) You can specify printing multiple pages on one page of paper or duplex printing. From the “File” menu, select “Print”. Select “Layout”. Specify settings for the following: Pages per sheet: Specifies the number of pages to print on one page.
Page 217: Printer Specific Options (Finishing Options 1 To 4)
Setting up the PPD driver (Mac OS 9.2) Printer specific options (Finishing options 1 to 4) You can specify printer-specific options. You can specify this option when using the staple or hole punch functions of this machine. From the “File” menu, select “Print”. Select “Finishing Options 1 to 4”.
Page 218 Setting up the PPD driver (Mac OS 9.2) Smoothing (Charts and Graphs): Adjusts the smoothing process of a chart and graph in a document to the text or photo settings. 8-14 C450...
Page 219: Setting Options
Setting up the PPD driver (Mac OS 9.2) Setting options You can specify the options installed on this machine so that they can be used from the printer driver. Reminder If the installed options on this machine are not set from the Installable Op- tions screen, the option function cannot be used with the printer driver.
Page 220 Setting up the PPD driver (Mac OS 9.2) Note The option settings are displayed automatically the first time the printer driver is selected. For details, refer to “Selecting a printer” on page 2-22. 8-16 C450...
Page 221: Setting Up The Ppd Driver (Mac Os X)
Setting up the PPD driver (Mac OS X) Setting up the PPD driver (Mac OS X) Settings The functions of this machine can be specified on the Paper Setup and Print dialog boxes displayed from the application. The settings can only be applied while using the application. When the ap- plication is exited, the settings return to their defaults.
Page 222: Print Dialog Box
Setting up the PPD driver (Mac OS X) Note Depending on the application, “Page Setup” may be displayed as “Paper Setup”. In addition, you may have to select “Paper Setup”—“Options” from the “File” menu. The dialog boxes differ depending on the application. Print dialog box Print item Menu...
Page 223 Setting up the PPD driver (Mac OS X) Menu Item Function ColorSync Color Conversion Specifies the color conversion method. Quartz Filter Specifies the color for printing. Cover Page Print Cover Page Specifies whether to attach a cover page. Cover Page Type Selects to print “Confidential”...
Page 224 Setting up the PPD driver (Mac OS X) Menu Item Function Setup Media Selects the paper type. Front Cover Page Attaches a front cover page. Paper Tray (Front Selects the input tray for the front cover. Cover Page) Back Cover Page Attaches a back cover page.
Page 225: Page Setup
Setting up the PPD driver (Mac OS X) Page setup Page Attributes (Basic settings) Select “Page Setup” or “Paper Setup” from the “File” menu. Select “Page Attributes”. Specify settings for the following: Paper Size: Specifies the paper size. Orientation: Specifies the orientation. Scale: Specifies the enlargement and reduction ratio.
Page 226: Custom Paper Size
Setting up the PPD driver (Mac OS X) Custom Paper Size Select “Page Setup” or “Paper Setup” from the “File” menu. Select “Custom Paper Size”. Click the [New] button. Enter the paper size name. Specify settings for the following: Paper Size: Specifies any paper size. Printer Margins: Specifies the paper margins.
Page 227: Printing
Setting up the PPD driver (Mac OS X) Printing Copies & Pages (General settings) From the “File” menu, select “Print”. Select “Copies & Pages”. C450...
Page 228 Setting up the PPD driver (Mac OS X) Specify settings for the following: Copies: Specifies the number of copies to print. Collated: Print multiple copies in sets. Page: Specifies the print range to print. C450...
Page 229: Layout (Printing Multiple Pages On One Page)
Setting up the PPD driver (Mac OS X) Layout (Printing multiple pages on one page) You can print multiple pages on one sheet. From the “File” menu, select “Print”. Select “Layout”. Specify settings for the following: Pages per Sheet: Specifies the number of pages to print on one page. Layout Direction: Specifies the document page order.
Page 230: Paper Feed
Setting up the PPD driver (Mac OS X) Paper Feed You can specify the input tray for printing. From the “File” menu, select “Print”. Select “Paper Feed”. Specify settings for the following: All pages from: Selects the input tray to print all pages. First page from: Selects the input tray to print the first page.
Page 231 Setting up the PPD driver (Mac OS X) selected from the “Output Method” drop-down list. Enter the ID and password on this machine's control panel when printing. (Up to 100 documents) Save in User Box Settings: Enters file name and box number when “Save in User Box”...
Page 232: Finishing
Setting up the PPD driver (Mac OS X) Finishing You can specify these options when using the staple or hole punch finisher functions of this machine. From the “File” menu, select “Print”. Select “Finishing”. Specify settings for the following: Collate: Prints multiple copies in sets. Offset: Specifies offset.
Page 233: Quality
Setting up the PPD driver (Mac OS X) Quality From the “File” menu, select “Print”. Select “Quality”. Specify settings for the following: Resolution: Specifies the resolution. Glossy Mode: Prints using a gloss finish. Original Image Type: Prints with a quality suitable for the original doc- ument.
Page 234 Setting up the PPD driver (Mac OS X) graph in a document to the text or photo settings. 9-14 C450...
Page 235: Setup
Setting up the PPD driver (Mac OS X) Setup You can specify the cover settings. From the “File” menu, select “Print”. Select “Setup”. Specify settings for the following: Paper Type: Selects the paper type. Front Cover Page: Attaches a front cover page. Paper Tray (Front Cover Page): Selects the input tray for the front cov- Back Cover Page: Attaches a back cover page.
Page 236: Setting Options
Setting up the PPD driver (Mac OS X) Setting options You can specify the options installed on this machine so that they can be used from the printer driver. Reminder If the installed options on this machine are not set from the Installable Op- tions screen, the option function cannot be used with the printer driver.
Page 237 Setting up the PPD driver (Mac OS X) Click the [Apply Changes] button or click [×] to close the Printer info dialog box. C450 9-17...
Page 238: Saving The Driver Settings
Setting up the PPD driver (Mac OS X) Saving the driver settings For Mac OS X drivers, you can save the setting values of the changed driver and recall them as necessary. Saving the driver settings Change the driver settings in “Copies & Pages” and “Layout”. From “Presets”, click “Save as”.
Page 239: Restore The Settings
Setting up the PPD driver (Mac OS X) Restore the settings Select “Presets” from the “Print” dialog box to recall the settings. The settings are recalled, and the printer driver dialog box appears again. Changing the settings Select “Presets” from the “Print” dialog box to change the settings. Change the driver settings in “Copies &...
Page 240 Setting up the PPD driver (Mac OS X) 9-20 C450...
Page 241: Various Settings
Various settings Various settings 10.1 Print settings in utility mode You can change the various print settings on the control panel of this ma- chine. Default settings To display the utility setting screen Press the [Utility/Counter] key. Touch [2 User Setting]. C450 10-1...
Page 242 Various settings The User Setting screen appears. Note In utility mode, an item can also be selected by pressing the key in the keypad for the number beside the desired button. For “2 User Setting”, press the [2] key in the keypad. To quit specifying the utility mode setting, touch [Exit] in the sub display area or press the [Utility/Counter] key.
Page 243: Pdl Setting
Various settings PDL setting You can specify the PDL (Printer Description Language) setting. (Default set- ting: Auto) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen” on page 10-1. Touch [1 Basic Setting].
Page 244: Number Of Sets
Various settings Number of Sets You can specify the default number of copies when no setting has been specified from the printer driver. (Default setting: 1 set) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen”...
Page 245: Original Direction
Various settings Original direction You can specify the default image orientation. (Default setting: Portrait) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen” on page 10-1. Touch [1 Basic Setting].
Page 246: Spool Setting
Various settings Spool setting You can set whether or not a spool is used. (Default setting: ON) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen” on page 10-1. Touch [1 Basic Setting].
Page 247: Paper Size Change
Various settings Paper size change You can specify whether similar paper sizes 8-1/2 × 11 and A4, and 11 × 17 and A3 are substituted for each other when there is no paper of the size specified with the printer driver. (Default setting: OFF) 0 The image may be defected since printing is forced.
Page 248: Paper Tray
Various settings Paper tray You can specify the input tray to use when none has been specified with the printer driver. (Default setting: Auto) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen”...
Page 249: Default Paper Size
Various settings Default paper size You can specify the paper size to use when no setting has been specified from the printer driver. (Default setting: 8-1/2 × 11) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen”...
Page 250: 2-Sided Print
Various settings 2-Sided print You can specify the default duplex printing setting. (Default setting: OFF) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen” on page 10-1. Touch [2 Paper Setting].
Page 251: Bind Direction
Various settings Bind direction You can specify the default binding position for duplex printing. (Default set- ting: Left Bind) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen”...
Page 252: Staple
Various settings Staple You can specify the staple settings. (Default setting: OFF) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen” on page 10-1. Touch [2 Paper Setting].
Page 253: Hole-Punch
Various settings Hole-Punch You can specify the hole punching settings. (Default setting: OFF) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen” on page 10-1. Touch [2 Paper Setting].
Page 254: Typeface
Various settings Typeface You can specify the font to use when no setting has been specified from the printer driver. (Default setting: Courier) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen”...
Page 255: Symbol Set
Various settings Symbol set You can specify the font symbol set to use when no setting has been spec- ified from the printer driver. (Default setting: PC-8, Code Page 437) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen”...
Page 256: Font Size
Various settings Font size You can specify the font size to use when no setting has been specified from the printer driver. (Default settings: Scalable Font – 12.00 point; Bitmap Font – 10.00 pitch) On the Utility Setting screen, touch [6 Printer Setting]. –...
Page 257 Various settings Touch [OK]. The font size is set. To cancel changes to the settings, touch [Cancel]. C450 10-17...
Page 258: Line/Page
Various settings Line/Page You can specify the number of lines per page when test printing. (Default set- ting: 64 lines) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen”...
Page 259: Cr/Lf Mapping
Various settings CR/LF mapping You can specify the data substitution method when printing text data. (De- fault setting: OFF) Mode 1: Substitutes CR for CR-LF. Mode 2: Substitutes LF for CR-LF. Mode 3: Substitutes to CR-LF. OFF: Does not perform substitution. On the Utility Setting screen, touch [6 Printer Setting].
Page 260 Various settings Touch [OK]. – To cancel changes to the settings, touch [Cancel]. 10-20 C450...
Page 261: Ps Error Print
Various settings PS error print You can specify whether to print the error message when an error occurs during PS rasterization. (Default setting: OFF) On the Utility Setting screen, touch [6 Printer Setting]. – For details on displaying the Utility Setting screen, refer to “To dis- play the utility setting screen”...
Page 262: Print Reports
Various settings Print reports You can output the following four types of reports. This report output method is explained in the PCL font list. On the Utility Setting screen, touch [6 Printer Setting]. Touch [5 Print Reports]. Touch the button for the desired setting. Touch the button for the desired paper drawer.
Page 263: Printer Settings In Administrator Mode
Various settings 10.2 Printer settings in administrator mode To display the administrator setting screen Press the [Utility/Counter] key. Touch [3 Administrator Setting]. Enter the password, and then touch [OK]. C450 10-23...
Page 264 Various settings The Administrator Setting screen appears. Detail In utility mode, an item can also be selected by pressing the key in the keypad for the number beside the desired button. For “3 Administrator Setting”, press the [3] key in the keypad. For details on setting or changing the password, refer to the C450 user’s guide [Copy operations].
Page 265: Print/Fax Output Settings
Various settings Print/Fax output settings You can specify whether to print data after it is received or to print it simul- taneously as it is being received. You can specify this function for printing and for faxing. (Default settings: Printer – Page Print; Fax – Batch Print) On the Administrator Setting screen, touch [1 System Setting].
Page 266 Various settings The print timing setting is set. Detail If the “Administrator Security Level” parameter is set “Level 2”, users can also specify this setting. Touch [User Setting], [System Setting], [Output Setting], then [Print/Fax Output Settings] to display the Print/Fax Output Settings screen.
Page 267: Local I/F Timeout
Various settings Local I/F timeout You can set the time until a communication timeout occurs for the parallel, USB, or network interface. (Default setting: 60 seconds) On the Administrator Setting screen, touch [7 Printer Setting]. – For details on displaying the Administrator Setting screen, refer to “To display the administrator setting screen”...
Page 268: Parallel I/F
Various settings Parallel I/F You can specify the mode for using a parallel interface. (Default setting: ECP) On the Administrator Setting screen, touch [7 Printer Setting]. – For details on displaying the Administrator Setting screen, refer to “To display the administrator setting screen” on page 10-23. On the Printer Setting screen, touch [2 Parallel I/F].
Page 269: Parallel/Usb
Various settings Parallel/USB You can specify whether to use the parallel port or the USB port. (Default set- ting: USB) On the Administrator Setting screen, touch [7 Printer Setting]. On the Printer Setting screen, touch [3 IEEE 1284/USB]. Touch the desired port. Note The parallel and USB ports cannot be used simultaneously.
Page 270: Capture Print Data
Various settings Capture print data You can specify whether to allow or prohibit data capturing of a print job. (Default setting: Allow) On the Administrator Setting screen, touch [0 Security Setting]. – For details on displaying the Administrator Setting screen, refer to “To display the administrator setting screen”...
Page 271: Using Pagescope Web Connection
Various settings 10.3 Using PageScope Web Connection PageScope Web Connection is a management utility supported by the HTTP server built into the printer controller. Start up a Web browser on a computer on the network and access Page- Scope Web Connection to easily change this machine’s settings. System requirements Network EthernetTCP/IP...
Page 272: Page Structure
For details, refer to “Logging In to administrator mode” on page 10-34. The configuration of the PageScope Web Connection page is shown below. KONICA MINOLTA Logo Click the logo to jump to the following Web site (KONICA MINOLTA Web site). http://konicaminolta.com...
Page 273 Various settings Administrator mode logon Click to log on to administrator mode. button Display Language Select the display language from the drop-down list. Status Display Displays the status of this machine's printer and scanner sections using icons. Message Display Displays the status of the problem/error and other error information if an error has occurred in this machine.
Page 274: Logging In To Administrator Mode
Various settings Logging In to administrator mode You can switch between user mode and administrator mode. However, you must enter administrator mode to specify system configurations or network configurations. Click the [Admin Mode] button. Enter the administrator password for this machine in the “Administrator Password”...
Page 275 Various settings The administrator mode page appears. To return to user mode, click the [Logout] button. Reminder When logged on to administrator mode, the control panel of this machine is locked and cannot be used. Depending on the status of this machine, you may not be able to log on to administrator mode.
Page 276: Cache Function Of Web Browsers
Various settings Cache function of web browsers The newest information may not appear on the PageScope Web Connection page due to the cache function of the Web browser. In addition, problems can occur when the cache function is used. When using PageScope Web Connection, disable the cache function of the Web browser.
Page 277: User Mode
Various settings User mode The user mode provides functions for checking and operating the machine on a user level. You can select from five tabs (System, Job, Box, Print, or Scan). Note This manual describes the printer related functions. For the box and scanner functions of this machine, refer to the C450 user’s guide [Box operations] and C450 user’s guide [Network scanner operations].
Page 278: System Tab - Summary
Various settings System tab — Summary On the System tab, click “Summary”. In addition, this is the initial page that appears when you access http://<IP_address_for_this_machine>/ with your Web browser. The Summary page shows the current system configuration and status of this machine.
Page 279: System Tab - Device Information
Various settings System tab — Device information Click the System and then click “Device Information” in the menu. The system configuration of this machine appears. Item Function Panel Language Displays the language that the control panel screens are displayed in. Administrator Name Displays the administrator name.
Page 280: System Tab - Detail - Input Tray
Various settings System tab — Detail — Input tray Click the System click “Detail”, and then click “Input Tray” in the sub-menu that appeared. You can check the status of the paper drawers of this machine. Item Function Tray Displays information for each item. Paper Size Media Type Paper...
Page 281: System Tab - Detail - Output Tray
Various settings System tab — Detail — Output tray Click the System click “Detail”, and then click “Output Tray” in the sub-menu that appeared. You can check the status of the output trays of this machine. Item Function Output Tray Displays the tray name and status of each installed tray.
Page 282: System Tab - Detail - Hdd
Various settings System tab — Detail — HDD Click the System click “Detail”, and then click “HDD” in the sub-menu that appeared. You can check the status of the hard disk of this machine. Item Function Name Displays the hard disk name. Total Displays the total size of the installed hard disk.
Page 283: System Tab - Detail - Interface Information
Various settings System tab — Detail — Interface information Click the System click “Detail”, and then click “Interface Information” in the sub-menu that appeared. You can check the interface information of this machine. Item Function Protocol Information Displays the usability status of each protocol. Network Information Displays the network information.
Page 284: System Tab - Detail - Consumables
Various settings System tab — Detail — Consumables Click the System click “Detail”, and then click “Consumables” in the sub- menu that appeared. You can check the consumable information of this machine. Item Function Toner (Yellow, Magenta, Displays information for each item. Cyan, Black) Imaging Unit (Yellow, Magenta, Cyan, Black)
Page 285 Various settings Note The status may not be displayed correctly if the consumables are not in- stalled. C450 10-45...
Page 286: System Tab - Counter
Various settings System tab — Counter Click the System and then click “Counter” in the menu. You can check the counters that this machine manages. 10-46 C450...
Page 287 Various settings Item Function Total Counter Displays the total of the output counter (copies, prints, scans, and faxes). Copy Counter Displays each counter. Print Counter Scan/Fax Counter Paper Total Counter Displays the output counter for each paper size. Color Total Counter Displays the color mode counter.
Page 288: System Tab - Online Assistance
Various settings System tab — Online assistance Click the System and then click “Online Assistance” in the menu. You can check support information concerning the product. Item Function Contact Name Displays information for each item. Contact Information Product Help URL Corporate URL Supplies and Accessories Online Manual URL...
Page 289: Job Tab
Various settings Job tab From the “Job” tab, you can check jobs managed by this machine. Job tab — Active job Click the Job tab, click “Active Job List” from the menu, and then select each function (print and scanning operations). You can check jobs that are being printed or that are queued to be printed.
Page 290 Various settings Note The job number that was assigned when the job was queued in this ma- chine appears as the job number. Click the [Detail] button to display detailed information. 10-50 C450...
Page 291: Job Tab - Done Job List
Various settings Job tab — Done job list Click the Job click “Done Job List” from the menu, and then select each function (print and scanning operations). You can check completed jobs. Sample print page Item Function Print Displays the print job list and details. Scan Transmission Displays the scan job list and details.
Page 292: Print Tab
Various settings Print tab You can check the printer default settings and print various reports. Print tab — General settings Click the Print tab, click “General Settings” from the menu, and then select each setting classification (general and PCL). If a print job is sent whose settings are not specified, the settings specified here are used for printing.
Page 293: Print Tab - Report Types
Various settings Print tab — Report types Click the Print and then click “Report Types” in the menu. You can print various configuration information, the demo pages, and the PCL font information. Select the report that you want to print, and then click the [Print] button.
Page 294: Administrator Mode
Various settings Administrator mode In administrator mode, you can specify system settings for this machine. You can select from five tabs (System, Box, Print, Scan, or Network). For details on logging on to administrator mode, refer to “Logging In to ad- ministrator mode”...
Page 295: System Tab - Date/Time- Manual Setting
Various settings System tab — Date/Time— Manual setting Enter the time and date for this machine. Item Function Year Enter the year. Month Enter the month. Enter the day. Hour Enter the time. Minute Enter the minutes. Time Zone Specify the time difference from GMT. Daylight Saving Time Specify whether the time is in daylight savings time.
Page 296: System Tab - Date/Time - Ntp Setting
Various settings System Tab — Date/Time — NTP setting The time and date of this machine can be set through passive acquisition from the NTP server. Item Function Specify whether to enable automatic time acquisition by NTP. NTP Server Address Enter the NTP server address (up to 225 characters, format: “***.***.***.***”...
Page 297: System Tab - Administrator Password
Various settings System Tab — Administrator password You can change the administrator password. Item Function Current Password Enter the current password. New Password Enter the new password. Retype New Password Reenter the new password. C450 10-57...
Page 298: System Tab - Device Information
Various settings System Tab — Device information You can change the device information. Item Function Device Name Specify the device name (up to 255 characters). Device Location Specify the device location (up to 255 characters). Administrator Name Specify the administrator name (up to 16 characters). 10-58 C450...
Page 299: System Tab - Online Assistance
Various settings System Tab — Online assistance You can changed the online support information. To display this information click the System tab in the user mode, and then click “Online Assistance”. Item Function Contact Name Specify information for each item. Contact Information Product Help URL Corporate URL...
Page 300: System Tab - Import/Export
Various settings System Tab — Import/Export You can save (export) the information of this machine as a file or write (im- port) the information from a file to this machine. Item Function Import To import a file specify the name of the file that you want to import, and then click the [Import] button.
Page 301: System Tab - Maintenance - Network Setting Clear
Various settings System Tab — Maintenance — Network setting clear You can restore the network configuration of this machine to when it was shipped from the factory. To execute, click the [Clear] button. Note If the settings are cleared after completing setup, you will not be able to connect until the settings are reset.
Page 302: System Tab - Maintenance - Reset
Various settings System Tab — Maintenance — Reset Resets the printer controller. To execute, click the [Reset] button. 10-62 C450...
Page 303: System Tab - E-Mail Alert
Various settings System Tab — E-mail Alert When an error occurs in this machine, an e-mail is sent to the registrant. Item Function Notification Address Enter the notification destination e-mail address (up to 320 characters). Notification Time Specify the time until the e-mail is sent. Tray paper Replenish Notifies when there is no paper.
Page 304: Print Tab
Various settings Print tab On the Print tab, information and settings concerning the connecting inter- face and default print settings are displayed. Print tab — Interface You can change the interface timeout settings. Item Function Parallel Timeout Enter the reception timeout for the parallel port (input range: 10— 1000).
Page 305: Print Tab - Default Settings - General Settings
Various settings Print tab — Default settings — General settings You can specify the default setting values of the printer. Item Function PDL Setting Select the printer descriptive language. Paper Tray Select the input tray. Output Tray Select the output tray. Double-Sided Print Select whether to perform duplex printing.Select Bind Direction...
Page 306 Various settings Item Function Paper Size Change Select whether to print 8-1/2 × 11 (A4)/11 × 17 (A3) documents when the A4 (8-1/2 × 11)/A3 (11 × 17) paper source is selected. 10-66 C450...
Page 307: Print Tab - Default Settings - Pcl Settings
Various settings Print tab — Default settings — PCL settings You can specify the default setting values of the PCL mode. Item Function Font Name Select the font. Symbol Set Select the symbol set. Line/Page Enter the number of lines per page (input range: 5—128). Font Pitch Enter the font pitch (input range: 0.44-99.0).
Page 308: Print Tab - Default Settings - Ps Settings
Various settings Print tab — Default settings — PS settings You can specify the default setting values of the PS mode. Item Function PS Error Print Specify whether to enable the printing of errors. 10-68 C450...
Page 309: Scan Tab
Various settings Scan tab On the Scan tab, the settings at transmission and the information and set- tings concerning the address book limitations are displayed. Detail If the user is prohibited from registering recipients in the address book, the functions for registering recipients in the address menu will not ap- pear in the menu.
Page 310: Network Tab
Various settings Network tab On the Network tab, information and settings concerning the network con- nection are displayed. Network tab — TCP/IP — TCP/IP You can specify the TCP/IP settings. Item Function TCP/IP Specify whether to enable TCP/IP. Speed Select the operation speed. Auto IP Select when using a DHCP server.
Page 311 Various settings Item Function IP Address Specify the IP address of this machine (format: “***.***.***.***”, input range for ***: 0—255). Subnet Mask Specify the subnet mask connecting to a network (format: “***.***.***.***”, input range for ***: 0—255). Default Gateway Specify the default gateway address connecting to a network (format: “***.***.***.***”, input range for ***: 0—255).
Page 312: Network Tab - Tcp/Ip - Ip Address Filtering
Various settings Network tab — TCP/IP — IP address filtering You can specify the IP address filter function. You can specify the access limitations by specifying the IP address of the host. Item Function Access Permission Address Specify whether to enable authorization of an IP address setting.
Page 313: Network Tab - Netware - Netware
Various settings Network tab — NetWare — NetWare You can specify the NetWare settings. Item Function NetWare Print Specify whether to enable NetWare. Frame Type Select the frame type. Mode Select “Pserver” or “Nprinter/Rprinter” as the operation mode of the print server. Print Server Name Enter the print server name (up to 63 characters, excluding / \ : ;...
Page 314 Various settings Item Function Preferred NDS Context Enter the preferred NDS context name (up to 191 characters). Name Preferred NDS Tree Name Enter the preferred NDS tree name (up to 63 characters). Printer Name Enter the NPrinter/RPrinter printer name (up to 63 characters). Printer Number Enter the NPrinter/RPrinter printer number (input range: 0—...
Page 315: Network Tab - Netware - Netware Status
Various settings Network tab — NetWare — NetWare status “NetWare Server” and “Queue Name” appear as the NetWare connection status. C450 10-75...
Page 316: Network Tab - Ipp
Various settings Network tab — IPP You can specify the IPP print settings. Item Function IPP Print Specify whether to enable IPP printing. Printer Name Enter the printer name (- _ and up to 127 alphanumeric characters). Printer Location Enter the printer location (up to 127 characters). Printer Information Enter the printer information (up to 127 characters).
Page 317: Network Tab - Snmp
Various settings Network tab — SNMP You can specify the SNMP settings. Item Function SNMP Specify whether to enable SNMP. C450 10-77...
Page 318: Network Tab - Smb - Print
Various settings Network tab — SMB — Print You can specify the SMP print settings. Item Function SMB Print Specify whether to enable the SMB print (Window print) service. NetBIOS Name Enter the NetBIOS name (up to 15 characters). Print Service Name Enter the print service name (up to 13 characters).
Page 319: Network Tab - Appletalk
Various settings Network tab — AppleTalk You can specify the AppleTalk settings. Item Function AppleTalk Specify whether to enable AppleTalk. Printer Name Enter the printer name (up to 31 alphanumeric characters, excluding = ~). Zone Name Specify the zone name (up to 31 characters). Current Zone Displays the current zone name.
Page 320: Network Tab - Ssl/Tls
Various settings Network tab — SSL/TLS You can specify the SSL/TLS certificate settings. Detail For details on Network Tab—SSL/TLS, refer to the C450 user’s guide [Network scanner operations]. Network tab — Authentication You can specify the user authentication settings and the automatic Page- Scope Web Connection log off time settings.
Page 321: Print Job Management
Note The three printer drivers that can be set on this machine are as follows: Konica Minolta PCL Printer Driver for Windows Konica Minolta PostScript Printer Driver for Windows 2000/XP/Server 2003 Konica Minolta Printer Driver for Mac OS X Specifying settings (for Windows) Click the [Properties] button on the Print dialog box to open the printer driver setup dialog box.
Page 322 Various settings Detail For details, refer to “Selecting the output method” on page 5-13 and page 6-9. 10-82 C450...
Page 323: Specifying Settings (For Mac Os X)
Various settings Specifying settings (for Mac OS X) From the “File” menu, select “Print”. Select “Security”. Specify settings for the following: Print: Specifies conditions for “Secure Print” and “Box Hold”. Secure Print: Enters ID and password when “Secure Print” is selected in “Output Method”.
Page 324: Job Storage
Various settings Job storage Depending on the printer driver “Output Method” settings, a print document can be stored in this machine as a print job. To print a stored job, you must recall the job using this machine's control panel. Recalling jobs For details on using the buttons in the Job List screen, refer to C450 user’s guide [Copy operations].
Page 325 Various settings From the job list, select the job whose sample copy is to be printed, se- lect [Proof Print], and then touch [OK]. – Check the print results on the printed pages. From the job list, select the job that you want to print. –...
Page 326: Printing With This Machine When Account Track Settings Have Been Applied
The three printer drivers that can be set on this machine are as follows. Konica Minolta PCL Printer Driver for Windows Konica Minolta PostScript Printer Driver for Windows 2000/XP/Server 2003 Printer Driver for Mac OS X...
Page 327: Specifying Settings (For Windows)
Various settings Specifying settings (for Windows) Click the [Properties] button on the Print dialog box to display the Print- ing Preferences dialog box. Click the setup tab (PCL or PostScript driver). Click the [User Authentication/Account Track] button. Select the “Account Tack” check box, and then enter the account name and password.
Page 328: Specifying Settings (For Mac Os X)
Various settings Specifying settings (for Mac OS X) From the “File” menu, select “Print”. Select “Security”. Select the “Account Track” check box, and then specify the account name and password. Job operations in PageScope Web Connection From PageScope Web Connection, you can also check the status of jobs be- ing performed by this machine.
Page 329: Troubleshooting
Troubleshooting Troubleshooting 11.1 Unable to print This chapter explains the troubleshooting procedures for possible malfunc- tions. Perform the troubleshooting procedures described below if this machine does not print after you have sent a print job. Symptom Probable cause Action The message “No The printer driver selected for Check the printer name selected.
Page 330 Troubleshooting Symptom Probable cause Action The machine does not The printer driver selected for Check the printer name selected. start printing although printing is not compatible with the the print job was com- printer controller. pleted on the compu- The network cable, parallel cable, Check that the cable is connected ter.
Page 331: Unable To Specify Desired Settings Or Unable To Print As Specified
Troubleshooting 11.2 Unable to specify desired settings or unable to print as specified Perform these troubleshooting procedures if you cannot specify the desired settings in the printer driver, or if the print results do not represent the set- tings that have been specified. Note Some of the printer driver functions cannot be combined with other func- tions.
Page 332 Troubleshooting Symptom Probable cause Action Stapling cannot be Number of pages that can be sta- Change the Copies setting. performed. pled when FS-507 is installed: Up to 50 pages on 8-1/2 × 11 w or smaller plain paper, and up to 25 pages on 8-1/2 ×...
Page 333: Appendix
Appendix Appendix 12.1 Specifications Item Specifications Model Built-in printer controller Power Supply Common with the main body PPC750 FX 600 MHz 64 MB 512 MB Hard Disk 40 GB Interface Standard: Ethernet (10Base-T or 100Base-TX) Optional: USB 1.1, USB 2.0, or IEEE 1284 Frame Type Ethernet 802.2 Ethernet 802.3...
Page 334 Appendix Item Specifications Printer Driver PCL6: • Windows 98 Second Edition or Windows Me Printer Driver • Windows 2000, Windows XP, or Windows 2003 Printer Driver • Windows NT 4.0 (SP6) Printer Driver PS3: • Windows 98 Second Edition or Windows Me PPD File •...
Page 335: Configuration Page
Appendix 12.2 Configuration page C450 12-3...
Page 336: Font List
Appendix 12.3 Font list PCL font list 12-4 C450...
Page 337: Ps Font List
Appendix PS font list C450 12-5...
Page 338: Test Page
Appendix Test page 12-6 C450...
Page 339: Glossary
Appendix 12.4 Glossary Term Definition 10Base-T/100Base-TX/ An Ethernet standard, which is a cable consisting of twisted copper 1000Base-TX wire pairs. The transmission speed of 10Base-T is 10 Mbps, of 100Base-TX is 100 Mbps, and of 1000Base-TX is 1000 Mbps. AppleTalk A generic name for the protocol suite developed by Apple Computer for computer networking Abbreviation for Binary Digit.
Page 340 Appendix Term Definition Abbreviation for Internet Printing Protocol. A protocol that sends and receives print data and controls printers over the Internet on a TCP/ IP network. Data can also be sent to printers in remote areas to print over the Internet. IPX/SPX Abbreviation for Internetwork Packet Exchange/Sequenced Packet Exchange.
Page 341 Appendix Term Definition Abbreviation for Portable Document Format. An electronically for- matted document which uses the .pdf extension. Based on the Post- Script format, you can use the free Adobe Acrobat Reader software to view documents. Abbreviation for Page Description Language. The language for spec- ifying the print image per page to a printer when printing using a page printer.
Page 342 Appendix Term Definition Print Job Print request transmitted from a computer to a printing device Install To install hardware, operating systems, applications, printer drivers on to a computer Web Browser Software such as Internet Explorer and Netscape Navigator for view- ing Web pages Resolution Displays the ability to reproduce the details of images and print mat-...
Page 343 Appendix Term Definition Protocol The rules that allow computers to communicate with other comput- ers or peripheral devices Property Attribute information When using a printer driver, various functions can be specified in the file properties. In the file properties, you can check the attribute information of the file.
Page 344: Index
Appendix 12.5 Index Numerics 2-Sided Print ....10-10 10-65 Default gateway ......10-71 Demo page ........10-53 Device options ......7-2 Account track ...4-19 5-17 6-13 DHCP ........... 10-70 ........9-4 9-11 10-86 DNS server ........10-71 Add printer wizard ......2-7 Domain name ......
Page 345 Appendix NetWare ......... 3-18 NetWare print ....... 10-73 Halftone ........... 7-2 Network ........... 3-1 Hole punching .....4-13 5-12 ....7-2 10-13 10-65 Network connection ....2-2 Host name ........10-71 Network timeout ......10-64 Novell distributed print service ..3-30 I/F timeout ........10-27 Offset .....4-14 Input tray ..4-10 10-8...
Page 346 Appendix Paper type ......4-10 Parallel connection ......2-2 Quality ........9-3 9-13 Parallel interface ......10-28 Quality adjustment ..4-18 5-28 6-21 Parallel setting ......10-64 Quality tab ......5-28 6-21 Parallel timeout ......10-64 PCL ..........2-1 RAW Port ........10-71 PCL driver ........
Page 347 Appendix Stop ......... 7-2 Subnet mask ........ 10-71 Substitute fonts ....... 8-2 Supported operating systems ..2-1 Symbol set ....... 10-15 10-67 Test printing ........4-2 Troubleshooting ......11-1 Typeface ........10-14 Unable to print ....... 11-1 Uninstall ......... 2-25 USB connection .......
Page 348 Appendix 12-16 C450...
