ACL Configuration Wizard
In order to make access profile and rule creation significantly easier to use, an ACL wizard has been introduced in the current
firmware release. Of course, advanced users can still manually configure access profiles and rules in the Access Profile List in the
next section.
To view the following window, click ACL > ACL Configuration Wizard:
The following parameters can be configured:
Parameter
Use the drop-down menu to select the general ACL Rule types:
Type
Normal – Selecting this option will create a Normal ACL Rule.
CPU – Selecting this option will create a CPU ACL Rule.
Enter the Profile ID for the new rule.
Profile ID (1-200)
Enter the Access ID for the new rule. Selecting the Auto Assign option will allow the switch to
Access ID (1-200)
automatically assign an unused access ID to this rule.
This rule can be created to apply to four different categories:
From / To
Any – Selecting this option will include any starting category to this rule.
MAC Address – Selecting this option will allow the user to enter a range of MAC addresses for
this rule.
IPv4 Address – Selecting this option will allow the user to enter a range of IPv4 addresses for

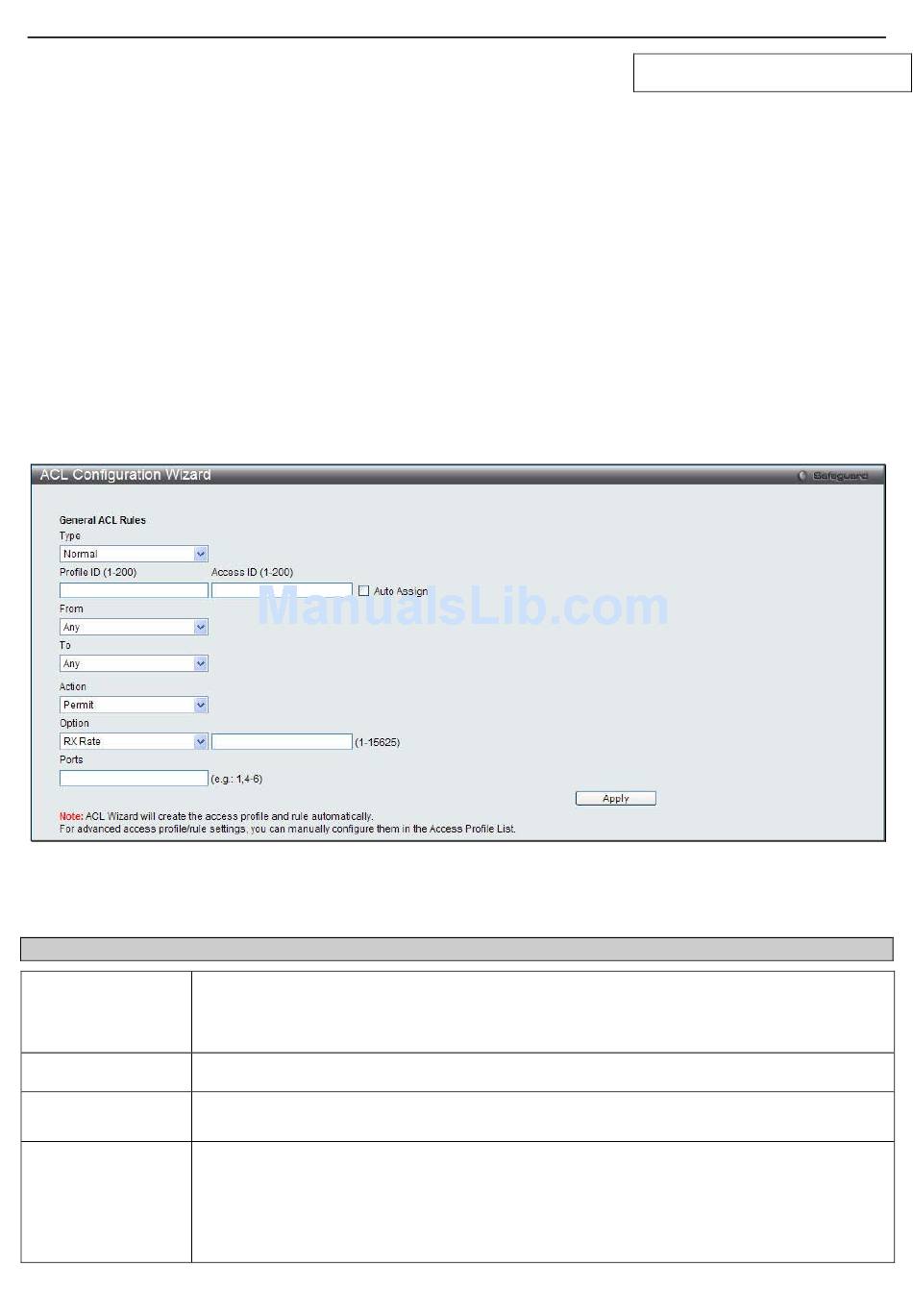

Figure 7 - 1. ACL Configuration Wizard window
Description
