Offset This field will instruct the Switch to mask the packet header beginning with the offset value
specified:
Click Create to implement the changes.
To view the settings of a previously correctly created profile, click the corresponding Show Details button on the CPU Access
Profile List window to view the following window:

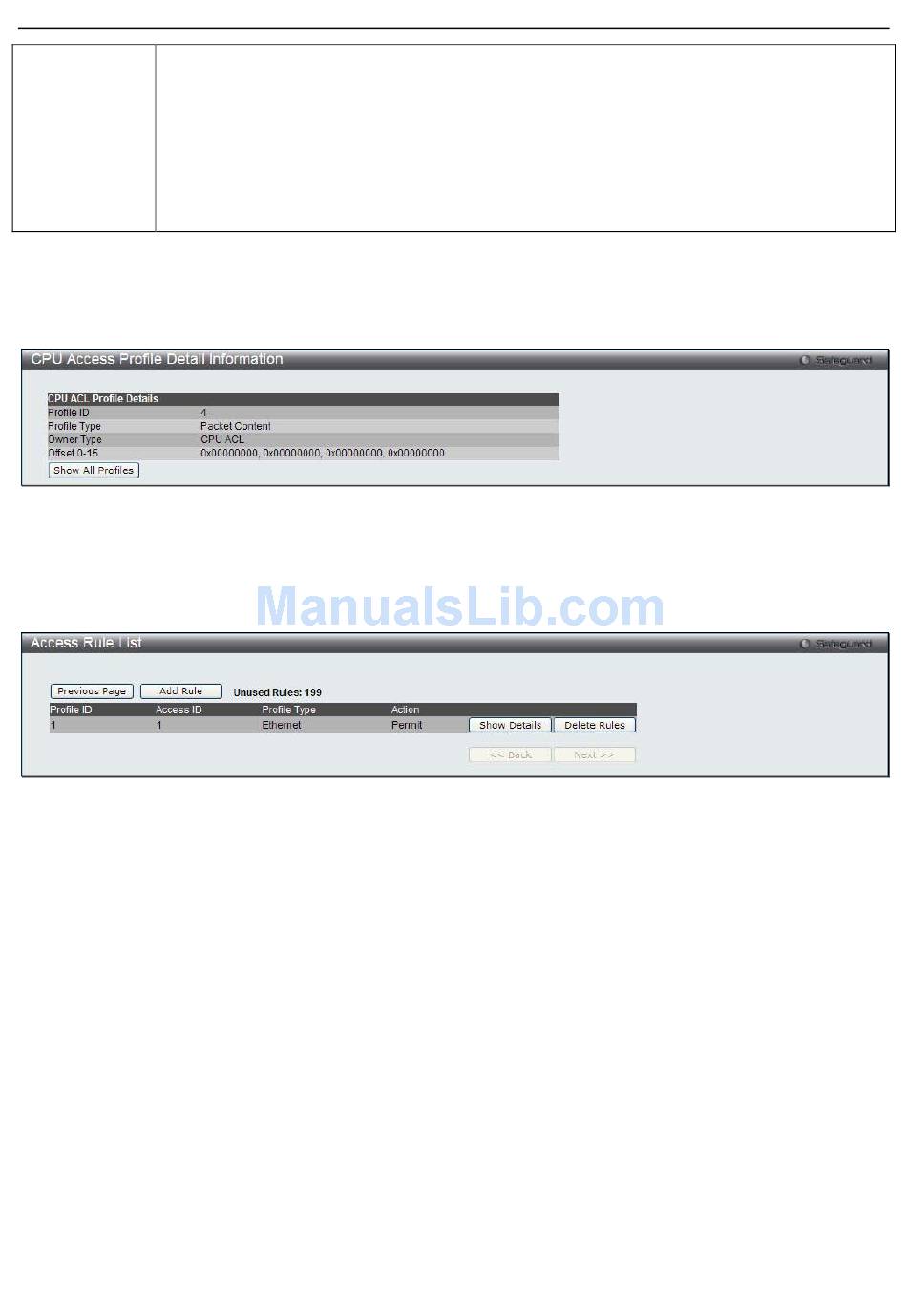

Figure 7 - 31. CPU Access Profile Detail Information window for Packet Content
To establish the rule for a previously created CPU Access Profile:
To configure the Access Rules for Ethernet, open the CPU Access Profile List window and click Add/View Rules for an
Ethernet entry. This will open the following window.
To remove a previously created rule, click the corresponding Delete Rules button. To add a new Access Rule, click the Add Rule
button:
• 0-15 - Enter a value in hex form to mask the packet from the beginning of the packet to
the 15th byte.
• 16-31 – Enter a value in hex form to mask the packet from byte 16 to byte 31.
• 32-47 – Enter a value in hex form to mask the packet from byte 32 to byte 47.
• 48-63 – Enter a value in hex form to mask the packet from byte 48 to byte 63.
• 64-79 – Enter a value in hex form to mask the packet from byte 64 to byte 79.
Figure 7 - 32. CPU Access Rule List window for Ethernet
