xStack DGS-3200 Series Layer 2 Managed Gigabit Ethernet Switch Web UI Reference Guide
There are four Add Access Profile windows; one for Ethernet (or MAC address-based) profile configuration, one for IPv6
address-based profile configuration, one for IPv4 address-based profile configuration, and one for packet content profile
configuration.

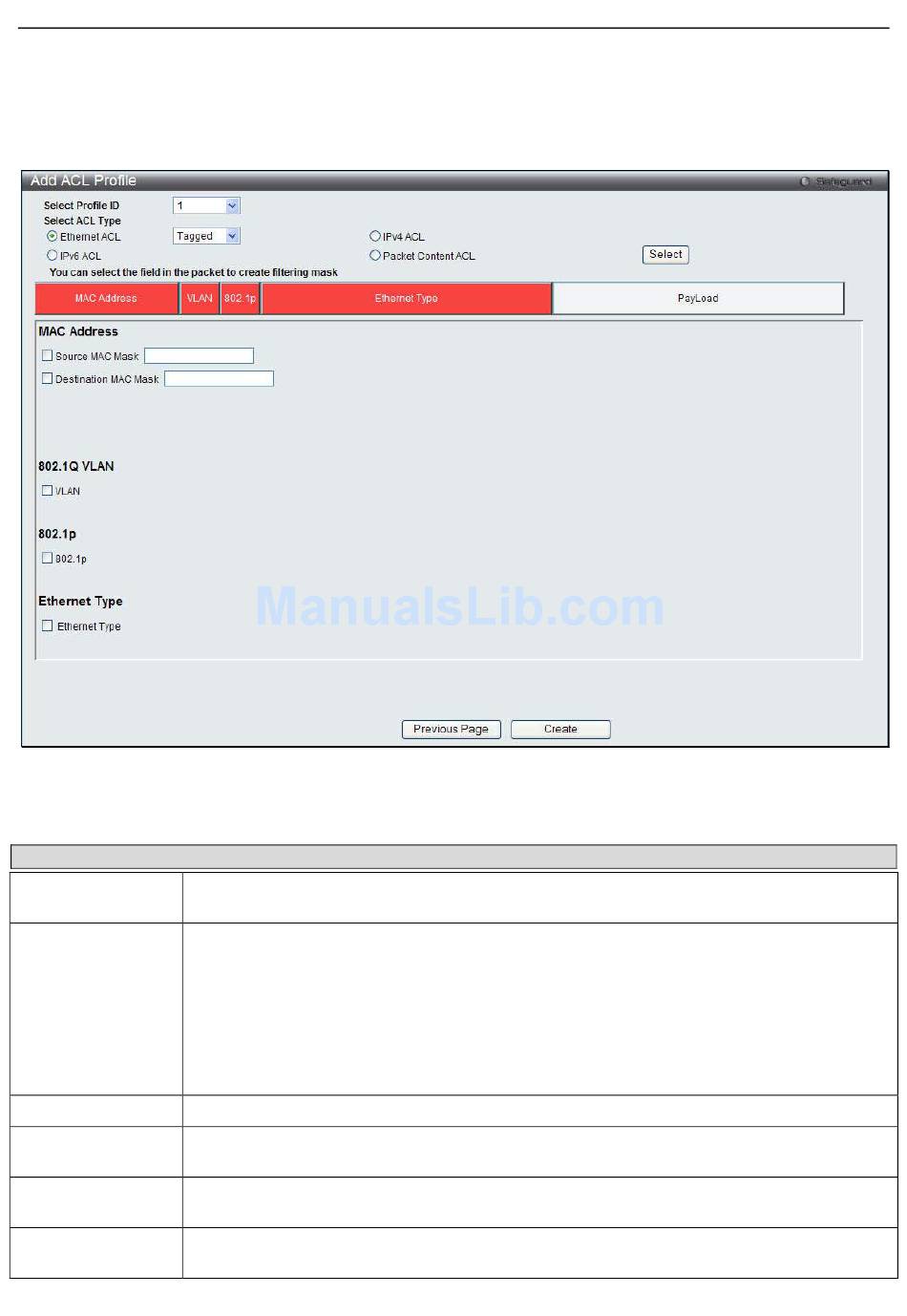

The window shown below is the Add ACL Profile window for Ethernet:
The following parameters can be set for the Ethernet ACL type:
Parameter
Select Profile ID
Select ACL Type
Source MAC Mask
Destination MAC
Mask
802.1Q VLAN
802.1p
Figure 7 - 3. Add ACL Profile window for Ethernet ACL
Description
Use the drop-down menu to select a unique identifier number for this profile set. This value can
be set from 1 to 200.
Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or packet
content. This will change the window according to the requirements for the type of profile.
Select Ethernet ACL to instruct the Switch to examine the layer 2 part of each packet header.
Select IPv4 ACL to instruct the Switch to examine the IPv4 address in each frame's header.
Select IPv6 ACL to instruct the Switch to examine the IPv6 address in each frame's header.
Select Packet Content to instruct the Switch to examine the packet content in each frame's
header.
Enter a MAC address mask for the source MAC address.
Enter a MAC address mask for the destination MAC address.
Selecting this option instructs the Switch to examine the 802.1Q VLAN identifier of each packet
header and use this as the full or partial criterion for forwarding.
Selecting this option instructs the Switch to examine the 802.1p priority value of each packet
header and use this as the, or part of the criterion for forwarding.
