The following fields can then be set in the Add/Edit VLAN tab:
Parameter Description
VID (VLAN ID) Allows the entry of a VLAN ID or displays the VLAN ID of an existing VLAN in the Add/Edit
VLAN tab. VLANs can be identified by either the VID or the VLAN name.
VLAN Name Allows the entry of a name for the new VLAN or for editing the VLAN name in the Add/Edit
VLAN tab.
Advertisement Enabling this function will allow the Switch to send out GVRP packets to outside sources,
notifying that they may join the existing VLAN.
Port Shows all ports of the Switch for the 802.1Q configuration option.
Tagged Specifies the port as 802.1Q tagging. Clicking the radio button will designate the port as tagged.
Untagged Specifies the port as 802.1Q untagged. Clicking the radio button will designate the port as
untagged.
Forbidden Click the radio button to specify the port as not being a member of the VLAN and that the port is
forbidden from becoming a member of the VLAN dynamically.
Not Member
Click the radio button to allow an individual port to be specified as a non-VLAN member.
Click Apply to implement changes made.
To search for a VLAN, click the Find VLAN tab. A new tab will appear, as shown below. Enter the VLAN ID number in the
field offered and then click the Find button. You will be redirected to the VLAN List tab. See the table on the next page for a
description of the parameters in the new window.

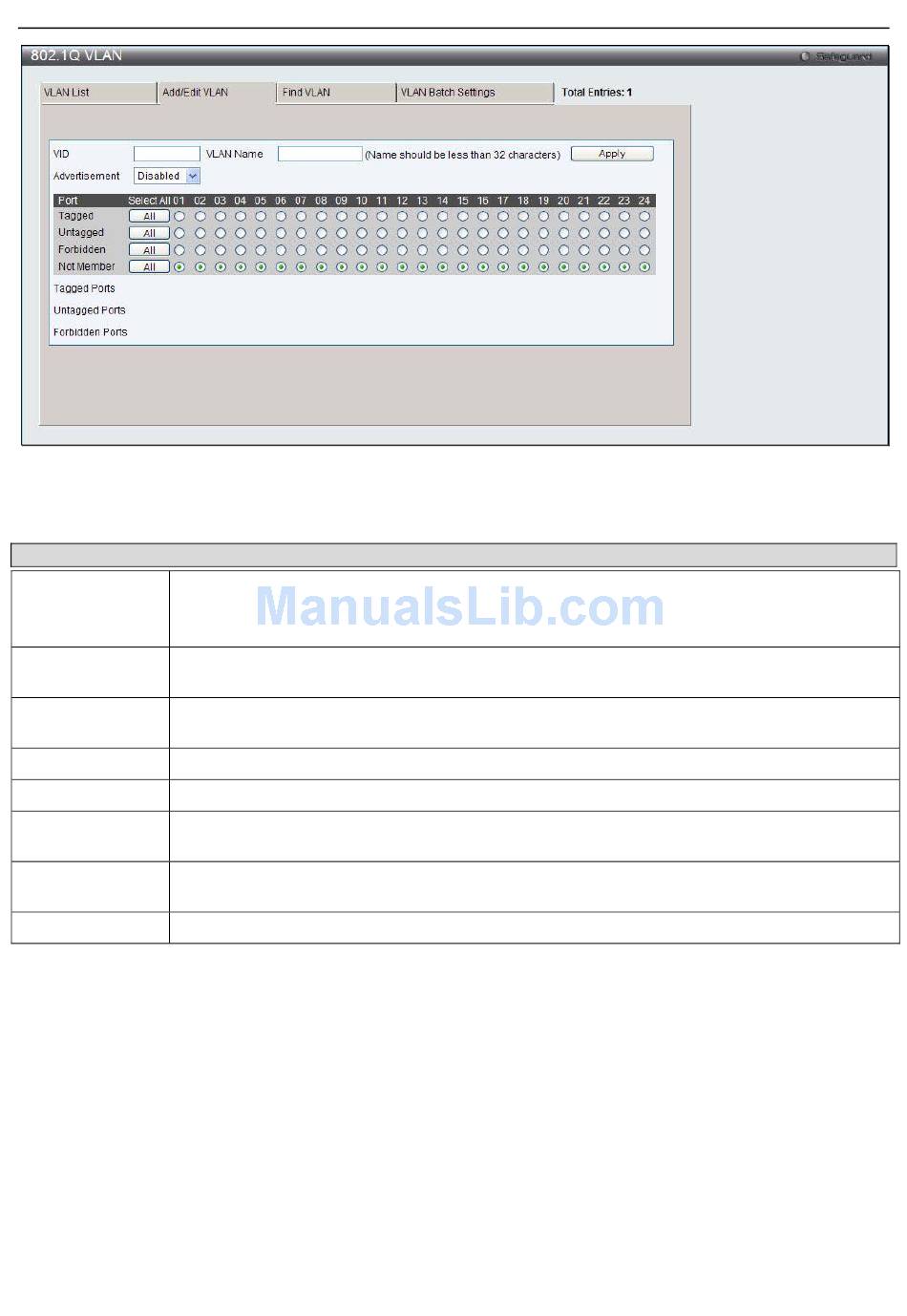

Figure 3 - 5. Add/Edit VLAN tab of the 802.1Q VLAN window
