Removing and replacing DIMMs

The server supports up to 24 memory DIMMs that attach to the system board through 4 memory
riser boards (6 DIMMs per board). The minimum amount of memory supported is 8 GB (two 4 GB
DIMMs). The maximum memory supported is 384 GB (twenty-four 16 GB DIMMs). The supported
DIMMs are industry-standard, 30 mm (1.18 inch) high, DDR3 PC3 DIMMs. The server does not
support hot-spare and hot-plug functionality.
The server supports the following DIMM sizes:
4 GB
8 GB
16 GB
IMPORTANT:
For memory configurations see
1. Power off the server
2. Extend or remove the server from the rack
"Extending the server from the rack" (page
3. Remove the access panel

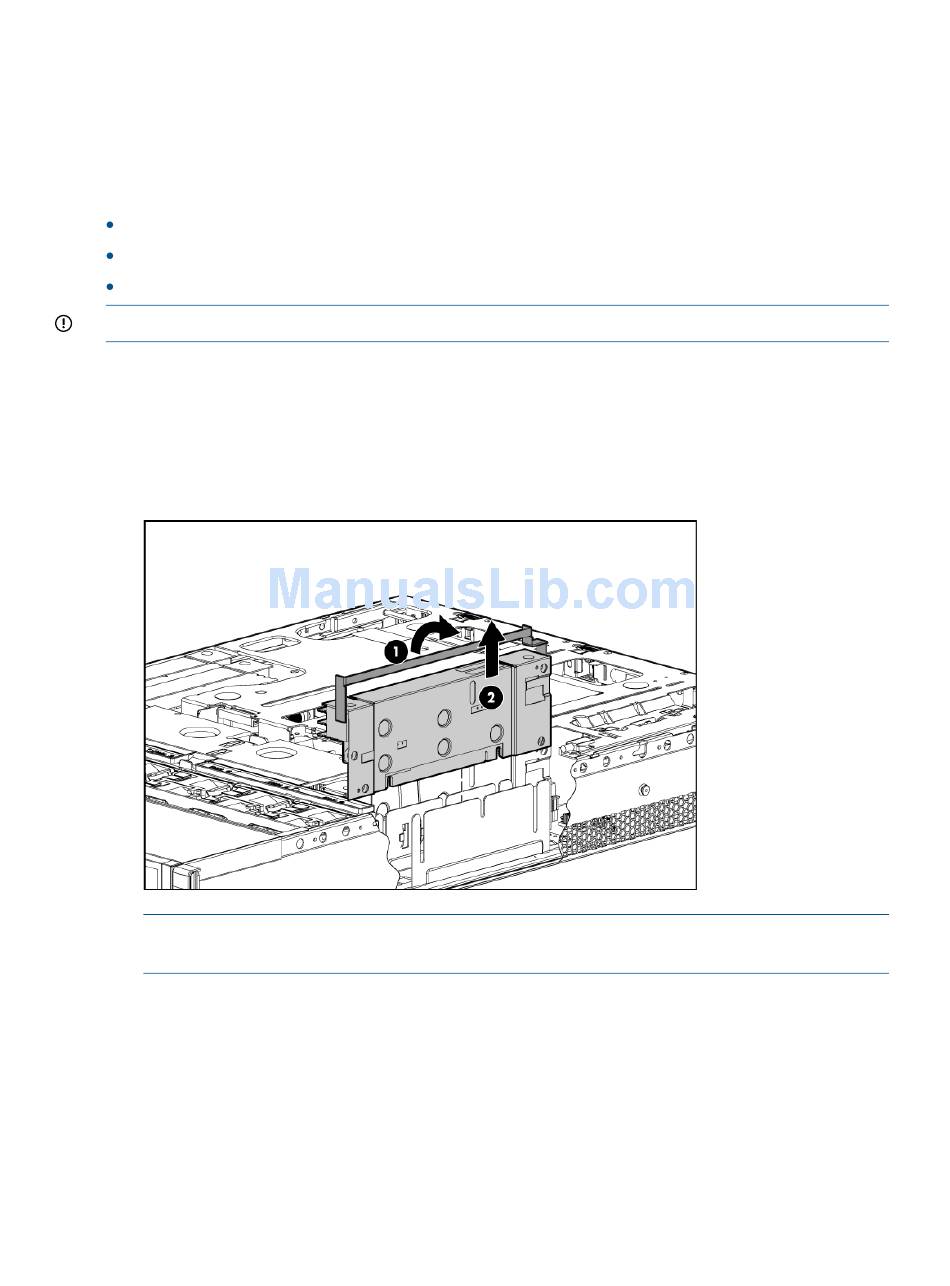

4. Remove the memory riser.
NOTE:
guides are only required for memory riser slots 2 and 3.
120 Removal and replacement procedures
At this time, the rx2800 i4 system supports only 1.35 V DIMMs.
"Installing DIMMs" (page
("Powering off the server" (page
("Removing the access panel" (page
You can access the memory riser boards without removing the airflow guides. Airflow
46).
99)).
("Removing the server from the rack" (page 99)
95)).
42)).
or
