HP Integrity rx2800 i4 User Manual page 128

15. Remove the super capacitor pack
115)).
16. Remove the power supply backplane
(page 109)).

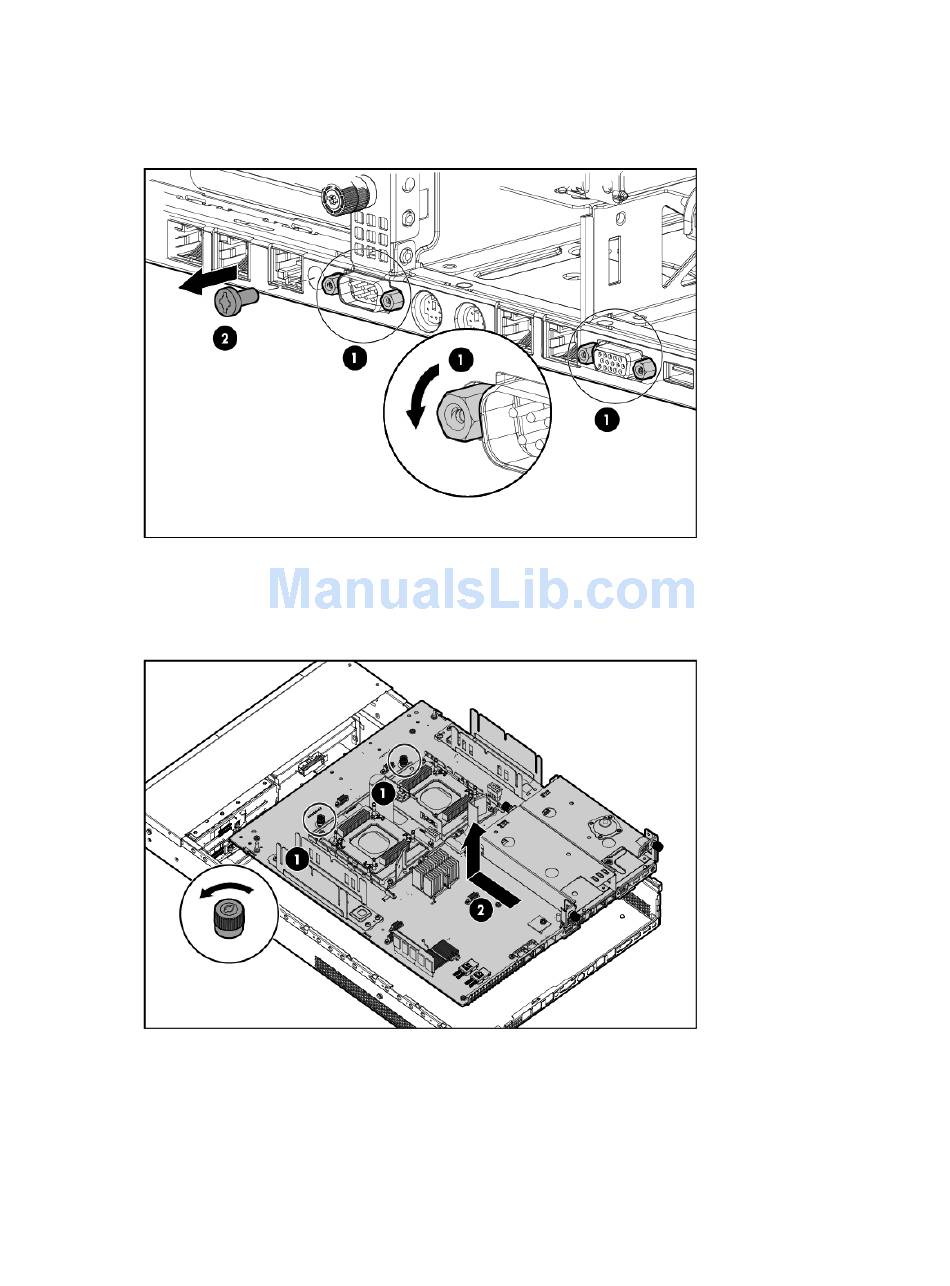

17. Remove hex screws from the rear video connector and serial connector.
18. Remove the rear retaining screw.
19. Loosen the two system board thumbscrews.
20. Remove the system board from the chassis by pushing it toward the front and then lifting it.
21. Remove four screws on the power supply cage, and remove power supply cage.
128 Removal and replacement procedures
("Removing and replacing the super capacitor pack" (page
("Removing and replacing the power supply backplane"
