C
ONFIGURING THE
- file to unit - Copies a file from this switch to another unit in the
stack.
- unit to file - Copies a file from another unit in the stack to this
switch
• TFTP Server IP Address – The IP address of a TFTP server.
• File Name – The file name should not contain slashes (\ or /), the
leading letter of the file name should not be a period (.), and the
maximum length for file names on the TFTP server is 127 characters
or 31 characters for files on the switch. (Valid characters: A-Z, a-z, 0-9,
".", "-", "_")
• Source/Destination Unit – Specifies the switch stack unit number.
• File Type – Allows you to specify an operational code (opcode), a
configuration (config), or a PoE controller (PD_Controller) file.
Note: The maximum number of user-defined configuration files is
limited only by available flash memory space.

Downloading Configuration Settings from a Server

You can download the configuration file under a new file name and then
set it as the startup file, or you can specify the current startup
configuration file as the destination file to directly replace it. Note that the
file "Factory_Default_Config.cfg" can be copied to the TFTP server, but
cannot be used as the destination on the switch.
Web – Click System, File, Copy. Select "tftp to startup-config" or "tftp to
file" and enter the IP address of the TFTP server. Specify the name of the
file to download and select a file on the switch to overwrite or specify a
new file name, then click Apply.
3-26
S
WITCH

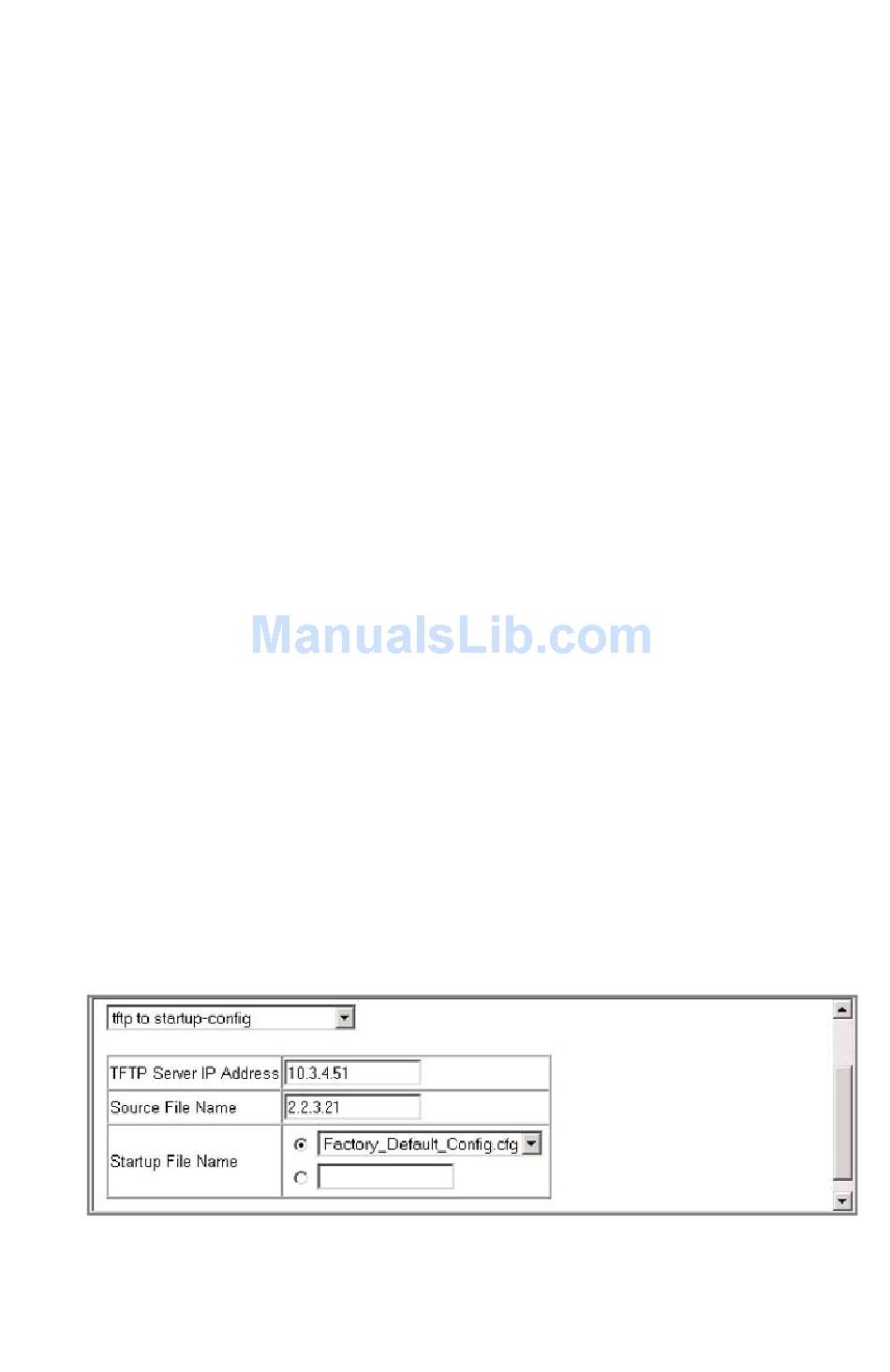

Figure 3-11 Copy Configuration Settings
