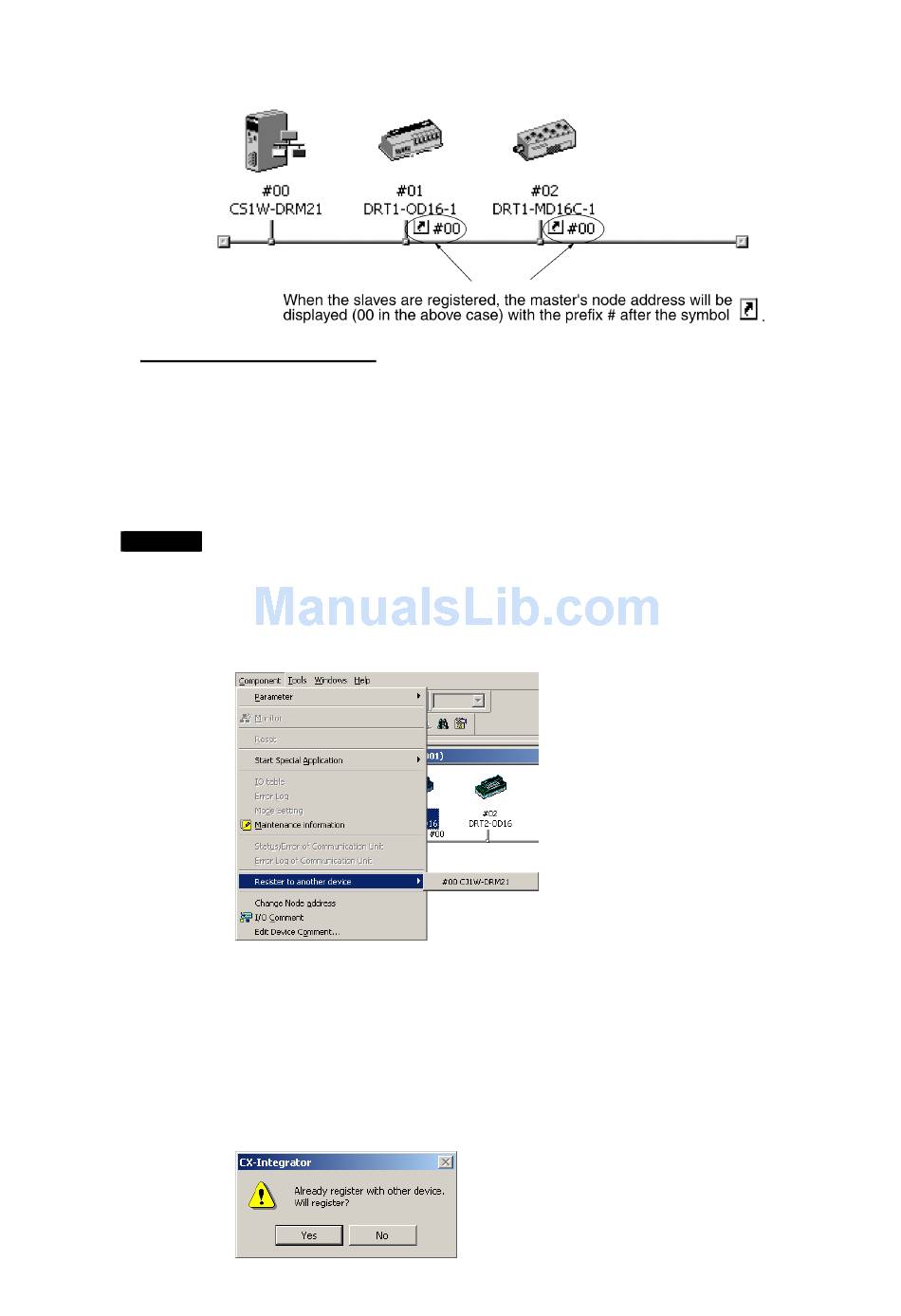

Master Node Address Displayed after Registration
Register to Other Device
A slave can also be added by selecting the slave in the Network Configuration
Window, clicking the right mouse button, selecting Register to other Device or
selecting Component - Register to other Device, and then selecting the master from
the menu. The menu will appear on the right-hand side.
At the time of I/O allocation, the registered slave can be deleted or settings can be
made for the registered slave by using the Parameter Wizard or by editing the
parameters of the master.
Note
To select a device from the menu and register it, use the following procedure.
1. Select the device from the Network Configuration Window.
2. Select Component - Register to other Device.
The following master candidates will be displayed in the Register to other Device
Menu.
3. Select the device with which the slave is to be registered.
The slave registered will be automatically added to the scan list of the master and
I/O will be allocated.
If the user attempts to register a slave that has already been registered with
another device, the following confirmation window will be displayed. By clicking the
Yes Button, the duplicated registration of the slave will be possible.
However, if the registration is duplicated, the slave will only be able to
communicate with one device. If the same slave is registered to multiple masters, it
will lead to communications errors.
6-3 Adding Slaves to the Master
6-3-2 Adding Slaves
6-11
