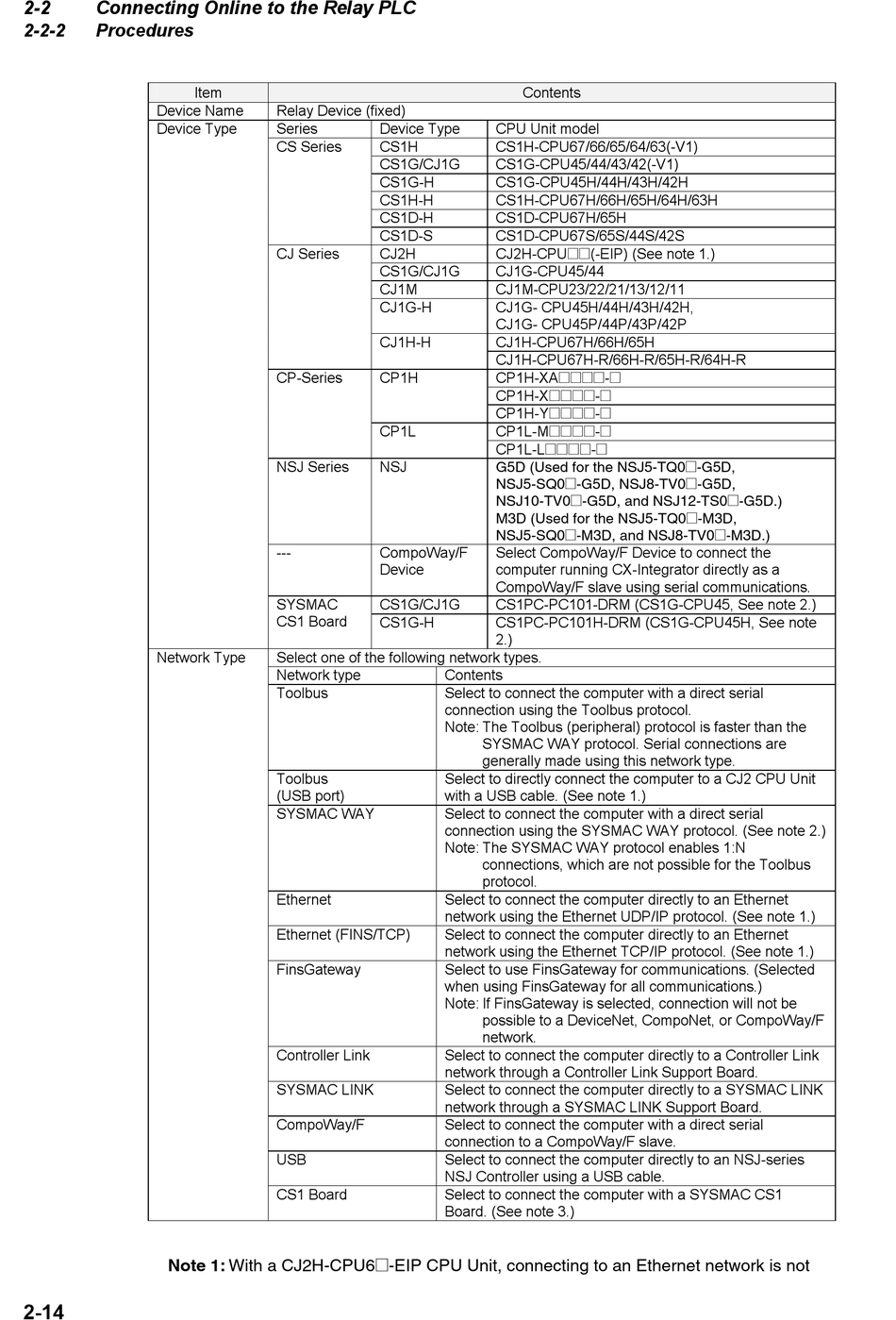

2-2
Connecting Online to the Relay PLC
2-2-2
Procedures
Device Name
Device Type
Network Type
Note 1: With a CJ2H-CPU6@-EIP CPU Unit, connecting to an Ethernet network is not
2-14
Item
Relay Device (fixed)
Series
CS Series
CJ Series
CP-Series
NSJ Series
---
SYSMAC
CS1 Board
Select one of the following network types.
Network type
Toolbus
Toolbus
(USB port)
SYSMAC WAY
Ethernet
Ethernet (FINS/TCP)
FinsGateway
Controller Link
SYSMAC LINK
CompoWay/F
USB
CS1 Board
Contents
Device Type
CPU Unit model
CS1H
CS1H-CPU67/66/65/64/63(-V1)
CS1G/CJ1G
CS1G-CPU45/44/43/42(-V1)
CS1G-H
CS1G-CPU45H/44H/43H/42H
CS1H-H
CS1H-CPU67H/66H/65H/64H/63H
CS1D-H
CS1D-CPU67H/65H
CS1D-S
CS1D-CPU67S/65S/44S/42S
CJ2H
CJ2H-CPU@@(-EIP) (See note 1.)
CS1G/CJ1G
CJ1G-CPU45/44
CJ1M
CJ1M-CPU23/22/21/13/12/11
CJ1G-H
CJ1G- CPU45H/44H/43H/42H,
CJ1G- CPU45P/44P/43P/42P
CJ1H-H
CJ1H-CPU67H/66H/65H
CJ1H-CPU67H-R/66H-R/65H-R/64H-R
CP1H
CP1H-XA@@@@-@
CP1H-X@@@@-@
CP1H-Y@@@@-@
CP1L
CP1L-M@@@@-@
CP1L-L@@@@-@
NSJ
G5D (Used for the NSJ5-TQ0@-G5D,
NSJ5-SQ0@-G5D, NSJ8-TV0@-G5D,
NSJ10-TV0@-G5D, and NSJ12-TS0@-G5D.)
M3D (Used for the NSJ5-TQ0@-M3D,
NSJ5-SQ0@-M3D, and NSJ8-TV0@-M3D.)
CompoWay/F
Select CompoWay/F Device to connect the
Device
computer running CX-Integrator directly as a
CompoWay/F slave using serial communications.
CS1G/CJ1G
CS1PC-PC101-DRM (CS1G-CPU45, See note 2.)
CS1G-H
CS1PC-PC101H-DRM (CS1G-CPU45H, See note
2.)
Contents
Select to connect the computer with a direct serial
connection using the Toolbus protocol.
Note: The Toolbus (peripheral) protocol is faster than the
SYSMAC WAY protocol. Serial connections are
generally made using this network type.
Select to directly connect the computer to a CJ2 CPU Unit
with a USB cable. (See note 1.)
Select to connect the computer with a direct serial
connection using the SYSMAC WAY protocol. (See note 2.)
Note: The SYSMAC WAY protocol enables 1:N
connections, which are not possible for the Toolbus
protocol.
Select to connect the computer directly to an Ethernet
network using the Ethernet UDP/IP protocol. (See note 1.)
Select to connect the computer directly to an Ethernet
network using the Ethernet TCP/IP protocol. (See note 1.)
Select to use FinsGateway for communications. (Selected
when using FinsGateway for all communications.)
Note: If FinsGateway is selected, connection will not be
possible to a DeviceNet, CompoNet, or CompoWay/F
network.
Select to connect the computer directly to a Controller Link
network through a Controller Link Support Board.
Select to connect the computer directly to a SYSMAC LINK
network through a SYSMAC LINK Support Board.
Select to connect the computer with a direct serial
connection to a CompoWay/F slave.
Select to connect the computer directly to an NSJ-series
NSJ Controller using a USB cable.
Select to connect the computer with a SYSMAC CS1
Board. (See note 3.)
