Retrieve Performance Monitoring Statistics - ADC Release 3.1 User Manual

ADCP-70-220 Issue 1 November 2000 Section 2 Operation and Maintenance

RETRIEVE PERFORMANCE MONITORING STATISTICS

Summary: This procedure describes the steps required to successfully retrieve the performance
monitoring statistics via the NMIC Graphical User Interface (GUI) for any interface installed
within the Cellworx STN network. Performance information retrieved is on a per node and per
port basis.
1. From the GUI main screen, select the Performance pull down
menu and then Monitoring using the left mouse button or by
hitting Alt+P and Alt+M. See Figure 008-1. User may also use
the graph icon shown on the tool bar above the workspace.
PERFORMANCE PULL
DOWN MENU
File Configuration

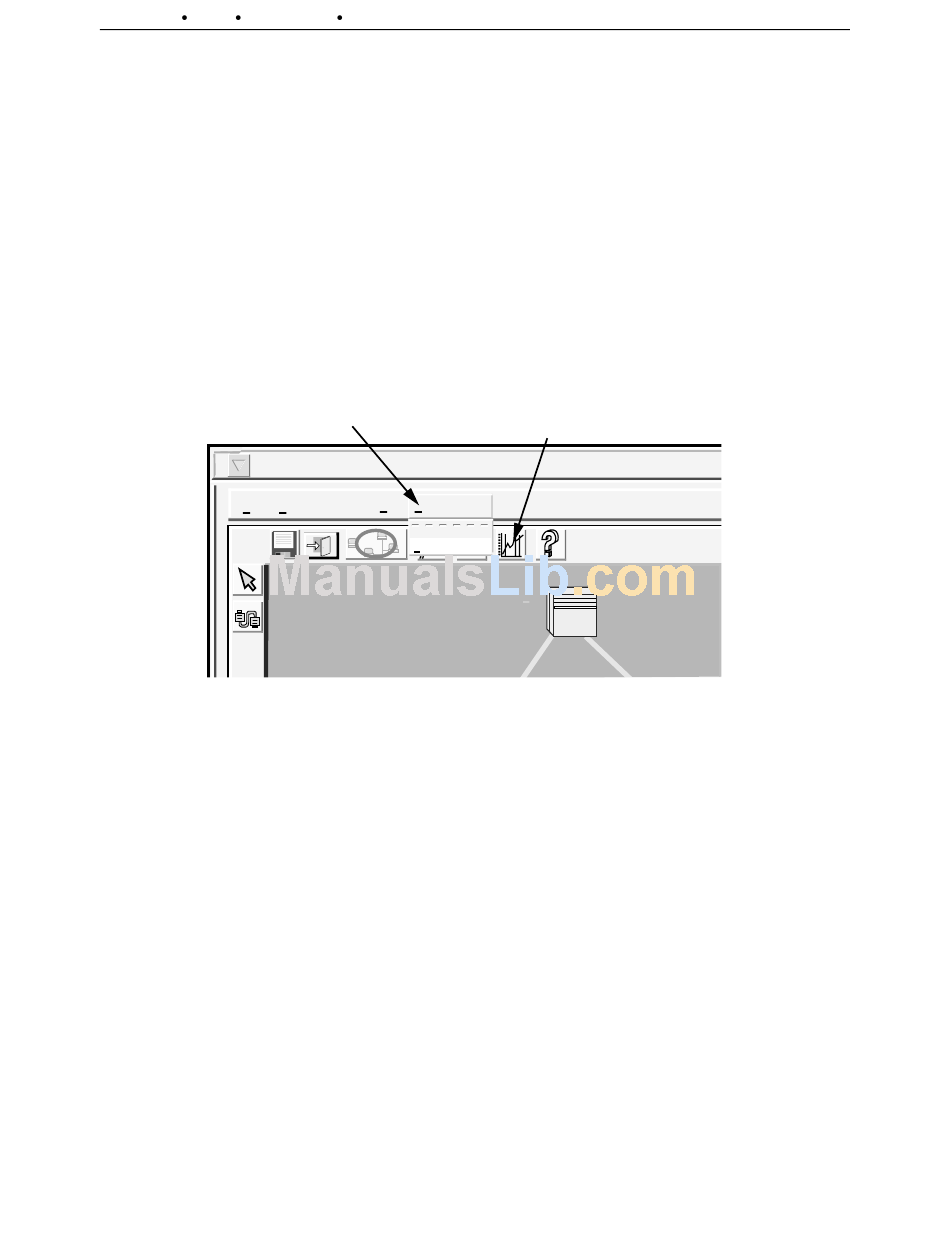

Figure 008-1. Cellworx Vision Performance Pull Down Menu
2. The Cellworx Vision Performance Monitoring - Selection
window appears as shown in Figure 008-2. In the upper left
selection box, select a network element for PM statistics
retrieval.
Page 2-22
© 2000, ADC Telecommunications, Inc.
PERFORMANCE REPORT
GRAPH ICON SHORTCUT
Cellworx Vision Subnetwork Management System
Fault Performance
MONITORING...
GNE-1
11744-C
NTP-008
Page 1 of 2
