ADC Release 3.1 User Manual page 129

SELECT A HISTORICAL
INTERVAL OR CURRENT DATA.
SELECT A DOMAIN FROM LIST.
THEN HIT APPLY TO RETRIEVE
ALARM LIST.
UP TO 1000 FILTERED TRAPS ARE
DISPLAYED IN THIS BOX. SELECT
PAGES 1 TO 10, EACH DISPLAYING
UP TO 100 ALARMS.
USE THE SLIDE BARS TO SCROLL
THROUGH THE FILTERED
ALARMS.
THE LAST 10 UNFILTERED TRAPS
ARE DISPLAYED HERE.
A TOTAL COUNT OF EACH ALARM
IS DISPLAYED BY SEVERITY.
DOMAIN
Ring
NMIC
NE #
1152700 Issue 1 February 2001 Section 2 Operation and Maintenance
Cellworx Vision Alarms
Filter
00:00 - 00:15
Interval (GMT):
Domain
Ring
Apply
Filtered Traps
Severity Date/Time
Informational Oct 14 13:47:17
Informational Oct 14 13:43:55
Informational Oct 14 13:43:54
Informational Oct 14 13:29:17
Most Recent Unfiltered Traps
Severity Date/Time
Informational Oct 14 13:50:17
Informational Oct 14 13:49:55
Informational Oct 14 13:49:54
Informational Oct 14 13:49:17
Critical: 0 Major:
Close

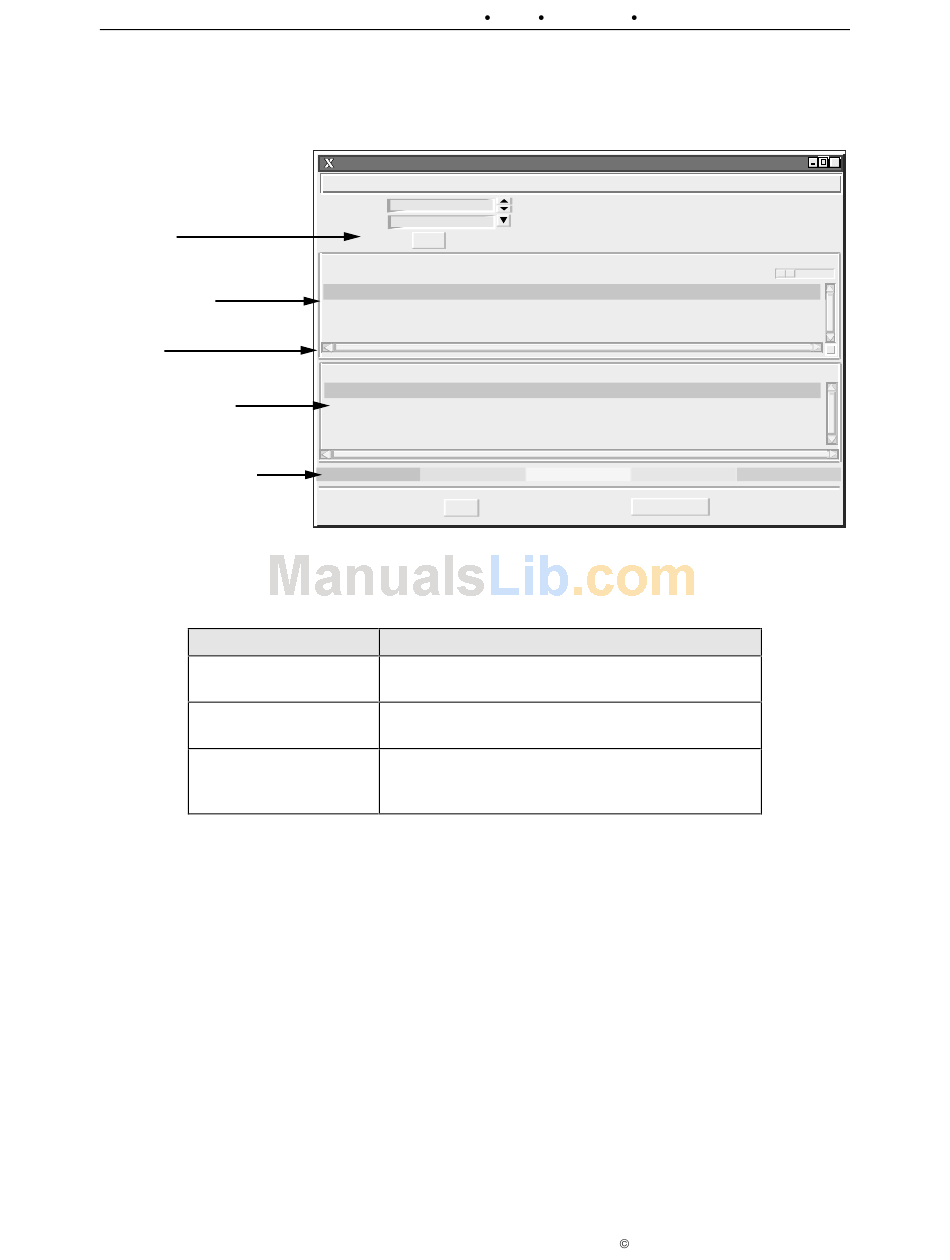

Figure 713-2. Cellworx Vision Alarms Screen
Table 713-1. Cellworx Vision Alarm Domain List
Contains 96 15-minute logs for any ring level
alarms.
Contains 96 15-minute logs for any NMIC level
alarms (i.e., database full, etc.)
Contains 96 15-minute logs for any NE level alarms.
All NEs discovered on the ring are listed and
selectable under Domain.
Network Element/Ring Resource
NE7 Shelf Controller Slot 18
NE1 OC12c Ring Slot 17 Port 1
NE1 OC12c Ring Slot 16 Port 1
NE4 OC3c CRS MM Slot 10 Port 1 Unavailable Seconds Pa
Network Element/Ring Resource
NE4 OC3c CRS MM Slot 10 Port 1 Unavailable Seconds Path
NE4 OC3c CRS MM Slot 10 Port 2 Unavailable Seconds Path
NE4 OC3c CRS MM Slot 15 Port 1 Unavailable Seconds Path
NE4 OC3c CRS MM Slot 15 Port 2 Unavailable Seconds Path
0 Minor: 0 International: 0
Clear Alarm Log
