ADC Release 3.1 User Manual page 344

1152700 Issue 1 February 2001 Section 2 Operations and Maintenance
DLP-779
Page 1 of 3
Summary: This procedure defines the information retrieved from the shelf level GUI card status
display for the 2488 RIC card. User must have the GUI launched and accessed the shelf level
GUI display per NTP-007 prior to performing this procedure.
1. Double click on the 2488 Ring card located in slot 16 in the shelf level GUI "Chassis
View"at the top of the window.
2. The 2488 Ring card display appears as shown in Figure 779-1. Click the small block
between the Status and Configuration sections and drag it downwards to view all the status
information. Refer to Table 779-1 for definitions of status information provided.
3. Select the Close button to return to the shelf view.
Stop! You have completed this procedure.
Cellworx Vision: Card View - OC3c/STM1 Ring Interface Card
NE Name: Cellworx1
NE Id: 16
Card: 2488 Ring
Slot Number: 16
Port Number: 1
2488
Ring
ADC
Status
Active
Timing
Port
1
Apply
APPLIES CHANGES RETURNS TO CHASSIS
AND SENDS TO SHELF VIEW WITHOUT CLOSING
CONTROLLER. CARD LEVEL VIEW.
Page 2-324
© 2000, ADC Telecommunications, Inc.
RETRIEVE 2488 RIC STATUS
Status:
Card Level
Up
Operational State:
Available
Availability State:
Protection State: Not Protected
Port Level
Section Status: Line Status:
No Alarm No Alarm
AIS
LOS
RDI
LOF
Synachronization Status: ST3
TC Alarm Status: No Alarm
NE15 Slot 16 Port1 (OC48)
Recieve Path Trace:
Configuration:
Port Level
Chassis View Diagnostics
PERFORMS TEST
OVER FIBER
LINK.

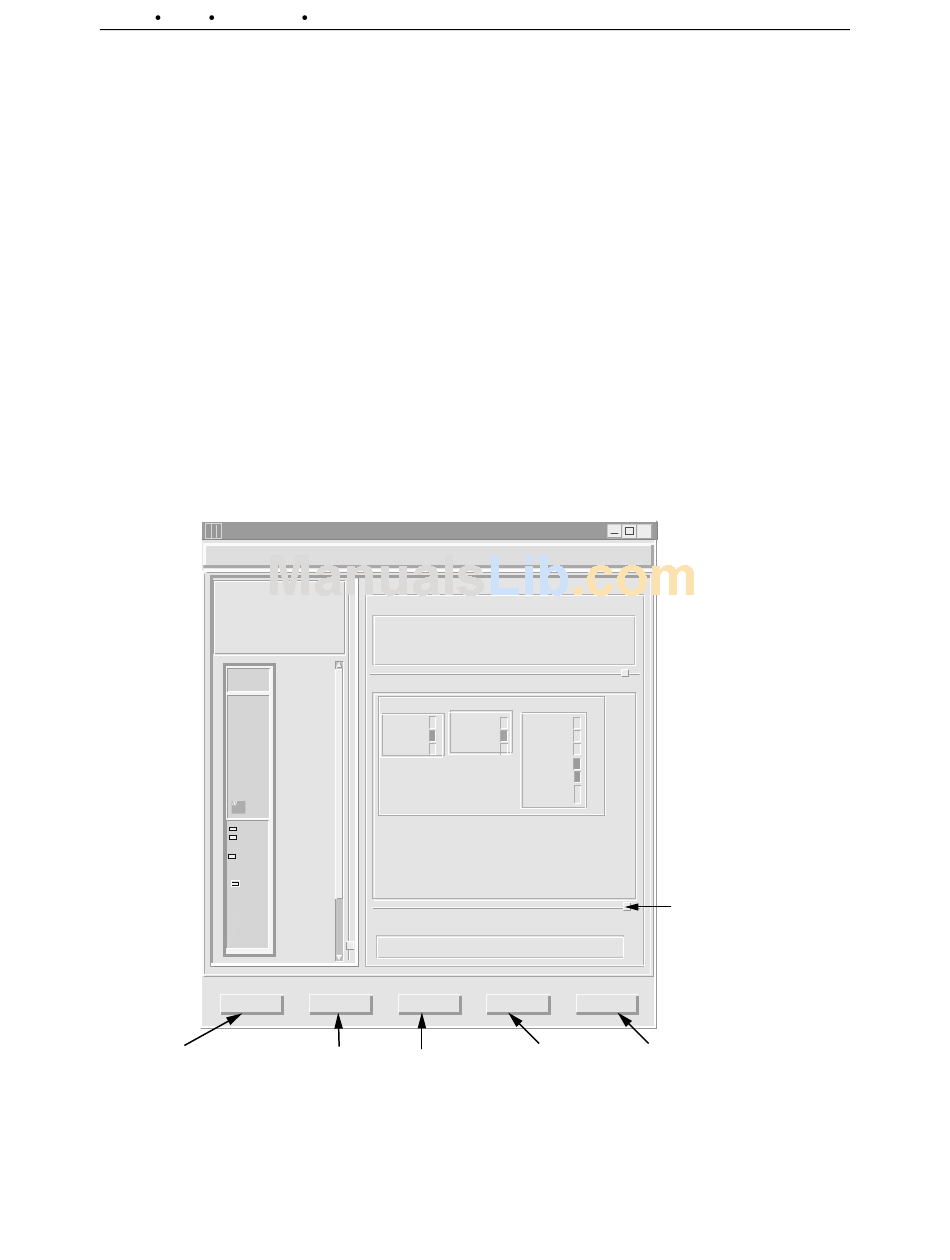

Figure 779-1. 2488 RIC Status Window
X
Path Status:
No Alarm
STS LOP
STS AIS
STS RDI
Unequipped
Signal Label
Mismatch
CLICK ON BOX AND DRAG
UP OR DOWN TO EXPAND
STATUS OR CONFIGURATION
VIEWS.
Refresh Close
REPAINTS WINDOW CLOSES CARD LEVEL
TO REFLECT ANY VIEW AND RETURNS TO
CHANGES. SHELF LEVEL VIEW.
0026-052
