ADC Release 3.1 User Manual page 114

1152700 Issue 1 February 2001 Section 2 Operations and Maintenance
DLP-710
Page 3 of 6
SELECT A TAB TO FILTER
FOR A SPECIFIC ITEM.
SELECT AN ITEM IN THE
FOLDERS TO FILTER.
SELECT THE APPLY BUTTON
TO RETRIEVE CONNECTION
INFO FOR FILTERED
SELECTION.
Table 710-1. Cellworx Vision Subnetwork Connection Filter Descriptions
FILTER TYPE
Connection
Network
Page 2-94
© 2000, ADC Telecommunications, Inc.
Cellworx Vision: Subnetwork Connection Filter
Network
Connection
Connection Types:
ATM VP - ATM VP
ATM VC - ATM VC
CES - ATM VC
CES - CES
FR - ATM VC
FR - FR
ATM VP MULTICAST
ATM BUNDLED VC MULTICAST
Retrieve All Selected Type Connections
Apply

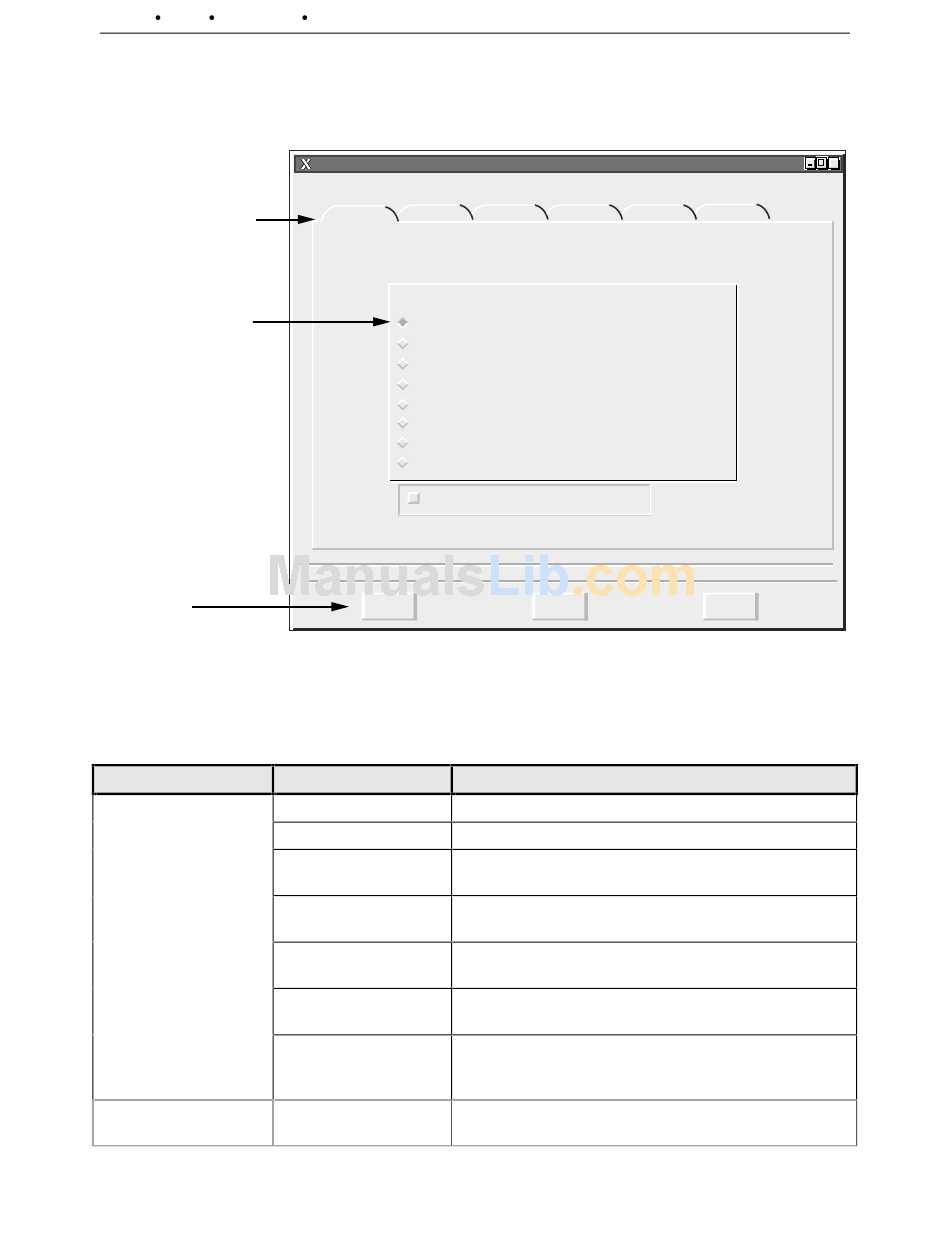

Figure 710-2. Subnetwork Connection Filter Window
OPTIONS
ATM VP - ATM VP Selects all ATM VP connections.
ATM VC - ATM VC Selects all ATM VC connections.
CES -VC Selects all Circuit Emulation Service to ATM Virtual
Channel connections.
CES - CES Selects all Circuit Emulation Service connections
(Phase II).
FR-ATM VC Frame Relay not supported for Release 3.1 software
FR-FR packages.
ATM VP Multicast Selects all virtual path connections that have multiple
endpoints associated with them.
ATM Bundled VC Selects all virtual path connections that have multiple
Multicast endpoints associated with them and bundled virtual
circuits contained in the path.
Administrator defined. Allows user to specify certain NEs when filtering
connections.
Traffic
ATM CES
Reset
DESCRIPTION
X
FR
Close
11000-F
(continued)
