9. The Icons now stay positioned in the new locations and maintain the highlighted
connection between them. This capability enables the user to group NEs that may be
collocated, or separate them according to their geographical locations. The user may also
return the icons to their original positions on the screen by selecting the Configuration pull
down menu, Topology, and Revert to Saved Icon Layout or Alt+C, Alt+T, and Alt+V.
Refer to Figure 740-6.
10. To save the new icon layout displayed on the screen, select File and Save Icon Layout
(Alt+F and Alt+S), or use the diskette icon on the tool bar. See
11. The confirmation window appears as shown in
icon layout will remain this way each time the GUI is launched, until the layout is redrawn
and saved again.
Stop! You have completed this procedure.
File

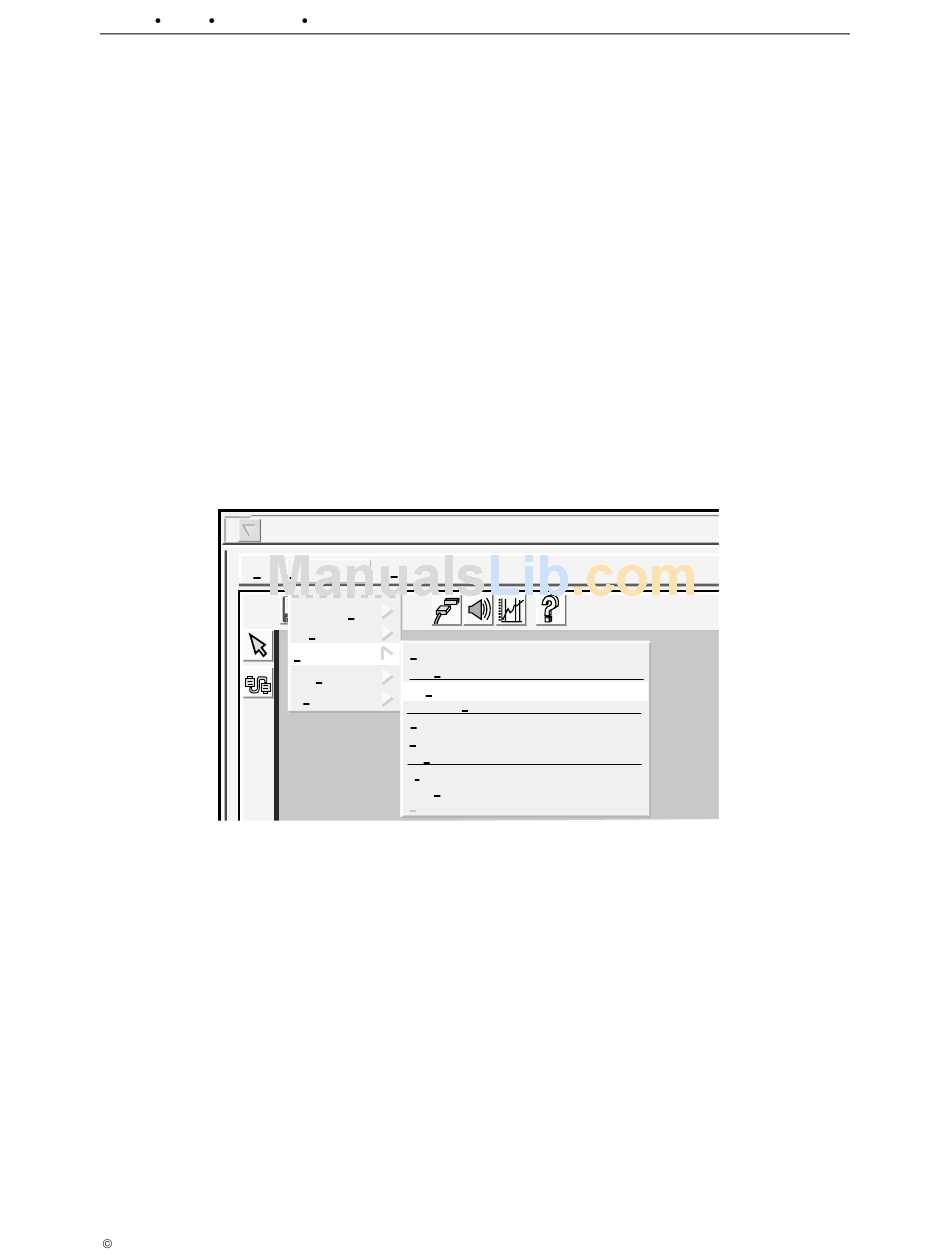

Figure 740-1. Cellworx Vision Remove Ring NE Pull Down Menu
Page 2-204
2000, ADC Telecommunications, Inc.
Cellworx Vision Subnetwork Management System
Configuration Fault Performance
Time and Date
Connection
Add Ring Network Element
Topology
Add Expansion Shelf Network Element
Software
Remove Ring Network Element
NMIC Platform
Remove Expansion Shelf Network Element
Refresh...
Force Network Discovery ...
Revert to Saved Icon Layout...
Ring Audit
Ring Upgrade
Turn Up Ring...
Figure 740-7.
Figure 740-8. Select OK. The newly drawn
10974-E
