Cellworx Vision: Connection Configuration
ASSIGN A CONNECTION NAME
Connection Name:
Connection Type:
SELECT A CONNECTION
TYPE: VC,VP, FR, OR CES
Network Element: NE-1
SELECT AN NE FROM
AVAILABLE LIST FOR
NE-1
ORIGINATING CONNECTION
NE-2
POINT.
NE-3
SELECT AN NE FROM
Network Element: NE-2
AVAILABLE LIST FOR
NE-1
DESTINATION CONNECTION
NE-2
POINT.
NE-3
THE SLOT / CARD TYPE ARE
THEN DISPLAYED FOR
SELECTION HERE.

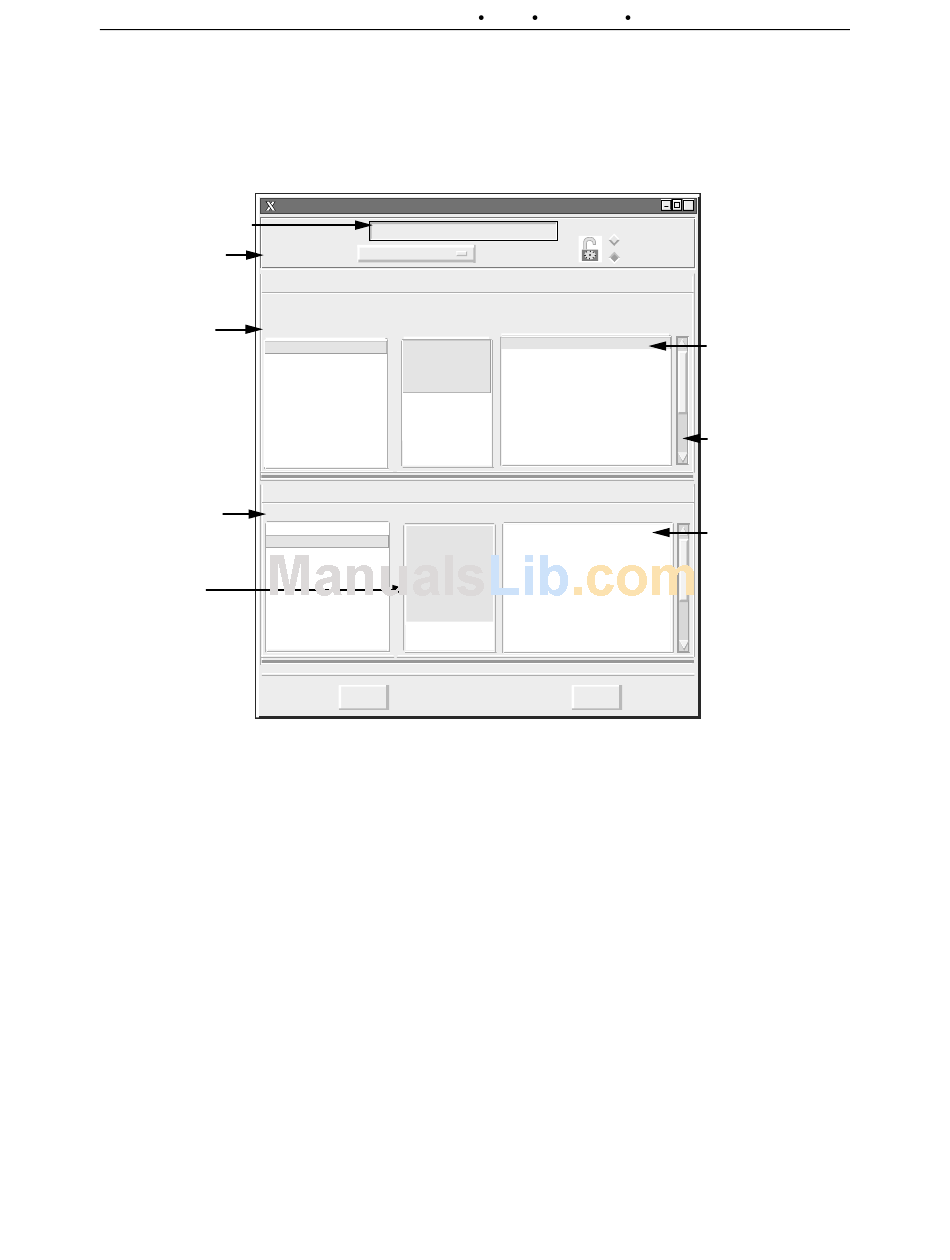

Figure 708-3. Cellworx Vision ATM Virtual Connection Configuration Window
1152700 Issue 1 February 2001 Section 2 Operations and Maintenance
NE-1 <--> NE-2
ATM VC - ATM VC
Please select an endpoint 1 network element.
Endpoint 1
Slot / Card Type:
9 T3 CRS
11 155 SM CRS
12 155 SM CRS
13 T3 TMUX
16 155 SM CRS
Endpoint 2
Slot / Card Type:
3 T3 CRS
4 T3 CRS
5 155 SM CRS
6 155 SM CRS
7 T3 TMUX
10 155 SM CRS
11 155 SM CRS
12 155 SM CRS
13 155 SM CRS
Next >>
Administrative State:
Locked
Unlocked
Network Interface / Interface Type:
Slot 11_Port 1 Oc3SM / UNI
Slot 11_Port 2 Oc3SM / UNI
Slot 12_Port 1 Oc3SM / UNI
Slot 12_Port 2 Oc3SM / UNI
Slot 13_Port 1 T3 TMUX
Slot 16_Port 1 Oc3MM / UNI
Slot 16_Port 2 Oc3MM / UNI
Slot 9_Port 1 DS3 / UNI
Slot 9_Port 2 DS3 / UNI
Slot 9_Port 3 DS3 / UNI
Network Interface / Interface Type:
Slot 10_Port 1 Oc3SM / UNI
Slot 10_Port 2 Oc3SM / UNI
Slot 11_Port 1 Oc3SM / UNI
Slot 11_Port 2 Oc3SM / UNI
Slot 12_Port 1 Oc3SM / UNI
Slot 12_Port 2 Oc3SM / UNI
Slot 13_Port 1 Oc3SM / UNI
Slot 13_Port 2 Oc3SM / UNI
Slot 3_Port 1 DS3 / UNI
Slot 3_Port 2 DS3 / UNI
Slot 3_Port 3 DS3 / UNI
Close
10907-C
© 2000, ADC Telecommunications, Inc.
DLP-708
Page 5 of 7
X
SELECT THE NETWORK
INTERFACE CARD AND
PORT FROM AVAILABLE
LIST FOR THE ORIGINATING
CONNECTION ENDPOINT.
USE SLIDER BARS TO VIEW
MORE INTERFACES.
SELECT THE NETWORK
INTERFACE CARD AND
PORT FROM AVAILABLE
LIST FOR THE DESTINATION
CONNECTION ENDPOINT.
