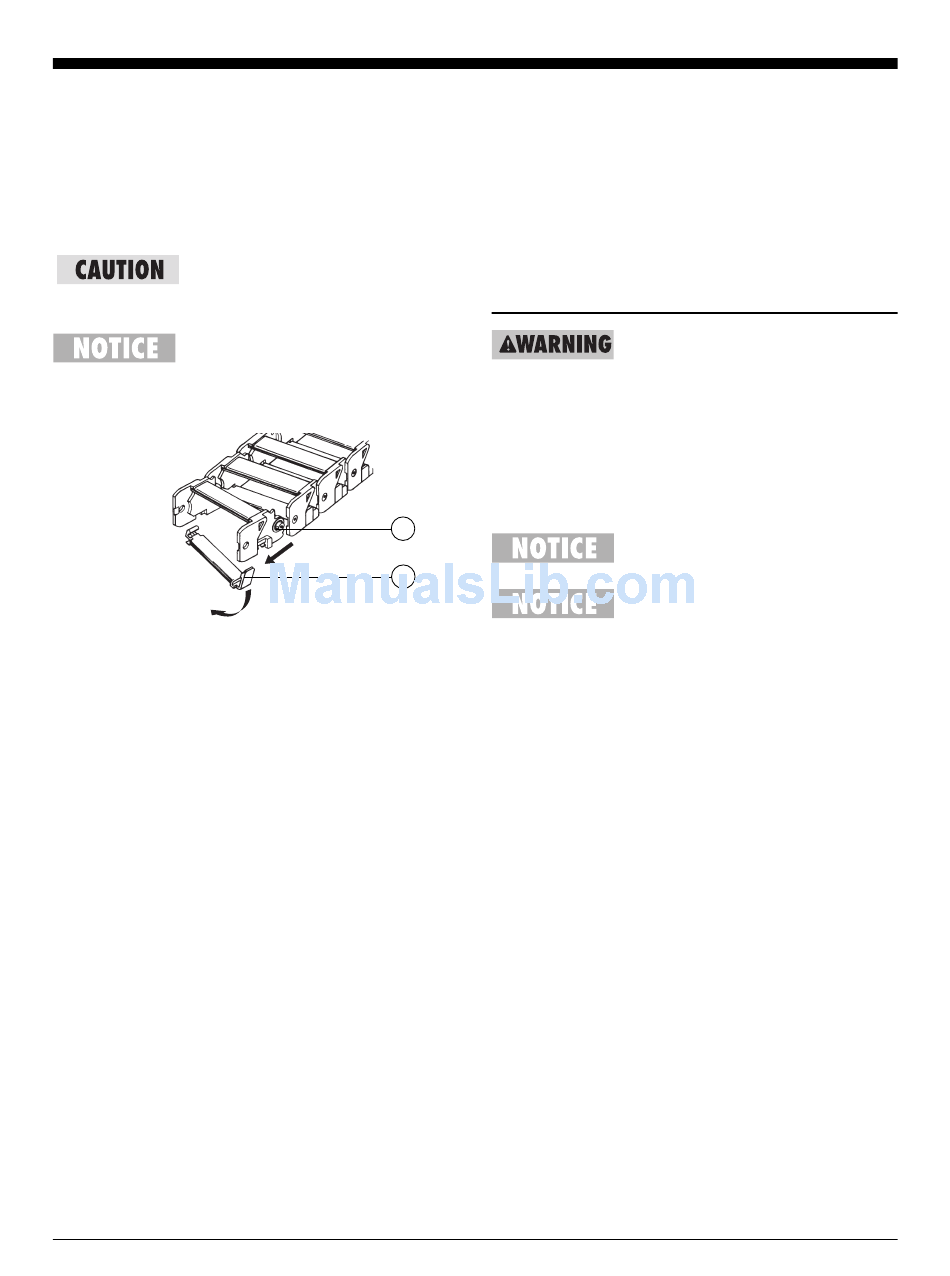

Primary Boom - Genie Z-60/34 Service Manual

November 2003
REV A
How to Repair the Primary Boom
Cable Track
Component damage hazard. The
primary boom cable track can be
damaged if it is twisted.
A 7 link repair section of cable
track is available through the
Genie Industries Service Parts
Department.
a link separation point
b lower clip
1 Use a slotted screwdriver to pry down on the
lower clip.
2 To remove a single link, open the lower clip
and then use a screw driver to pry the link to
the side.
3 Repeat steps 1 and 2 for each link.
Part No. 75861
4-2

Primary Boom

How to Remove the
Primary Boom
a
b
1 Remove the platform.
2 Remove the platform rotator and platform
mounting weldment.
3 Remove the jib boom.
See 3-1, How to Remove the Jib Boom.
4 Remove cable track.
See 4-1, How to Remove the Cable Track.
5 Remove the hose and cable clamp from the
upper mid-pivot.
Genie Z-60/34
Section 4 • Repair Procedures
PRIMARY BOOM COMPONENTS
Bodily injury hazard. This
procedure requires specific repair
skills, lifting equipment and a
suitable workshop. Attempting this
procedure without these skills and
tools could result in death or
serious injury and significant
component damage. Dealer
service is strongly recommended.
Perform this procedure with the
boom in the stowed position.
When removing a hose assembly
or fitting, the O-ring on the fitting
and/or hose end must be replaced
and then torqued to specification
during installation.
Refer to Section Two, Hydraulic
Hose and Fitting Torque
Specifications.
4 - 17
