5 Remove the strap from the lower secondary
boom arm. Then lower the secondary boom to
the stowed position.
6 Check to ensure that each lower bearing
mounting bolt under the drive chassis is torqued
in sequence to 210 ft-lbs / 285 Nm.
10
13
6
18
3
11
20
8
16

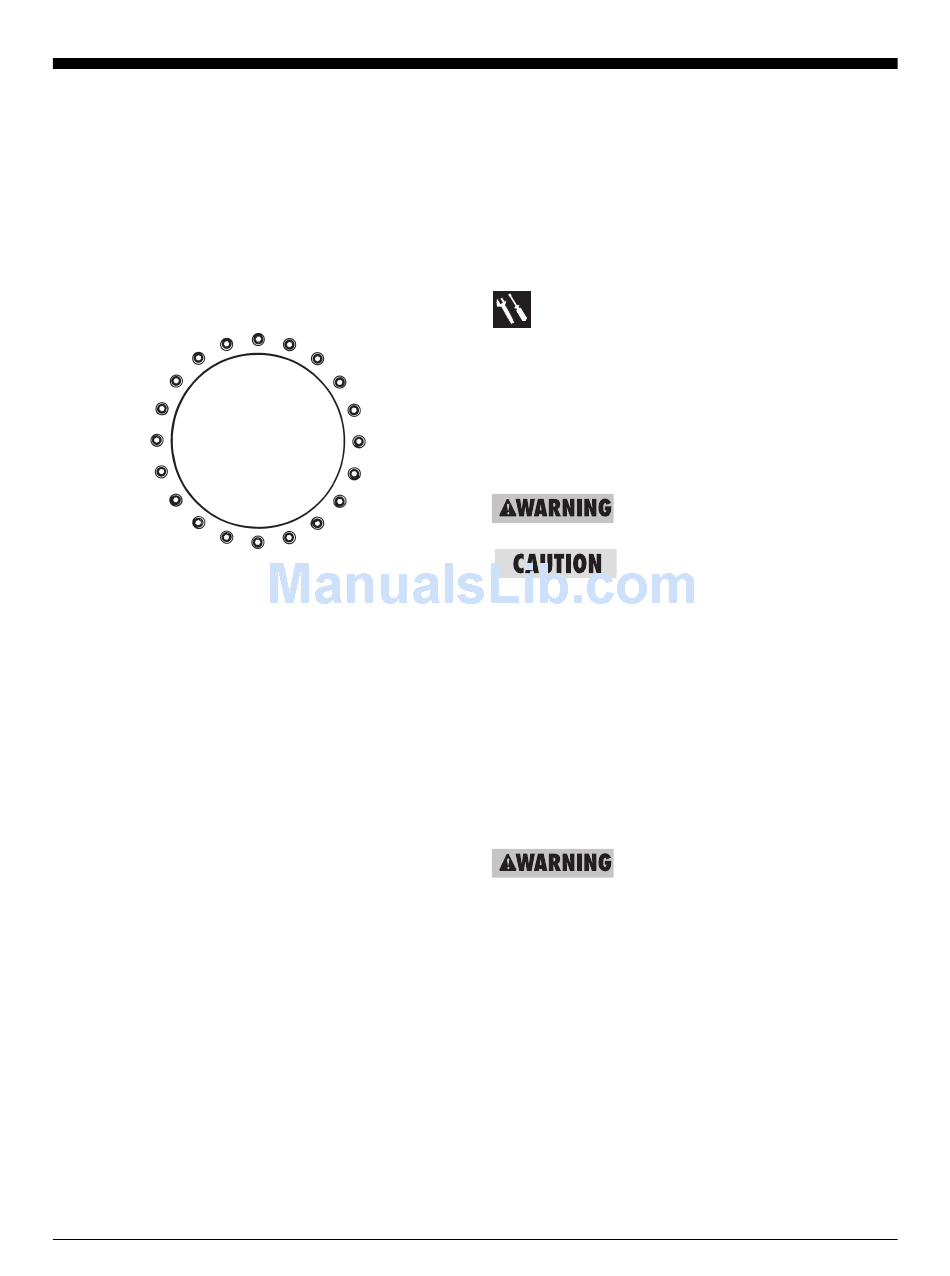

Bolt torque sequence
Part No. 75861
1
15
7
19
12
4
17
5
14
9
2
Genie Z-60/34
Section 3 • Scheduled Maintenance Procedures
CHECKLIST D PROCEDURES
D-3
Check the Free-wheel
Configuration
Proper use of the free-wheel configuration is
essential to safe machine operation. The
free-wheel configuration is used primarily for towing.
A machine configured to free-wheel without operator
knowledge may cause death or serious injury and
property damage.
Collision hazard. Select a work site
that is firm and level.
Component damage hazard. If the
machine must be towed, do not
exceed 2 mph / 3.2 km/h.
All models:
1 Chock the steer wheels to prevent the machine
from rolling.
2 Center a lifting jack of ample capacity
under the drive chassis between the non-steer
wheels.
3 Lift the wheels off the ground and then place
blocks under the drive chassis for support.
Crushing hazard. The chassis will
fall if not properly supported.
3 - 41
