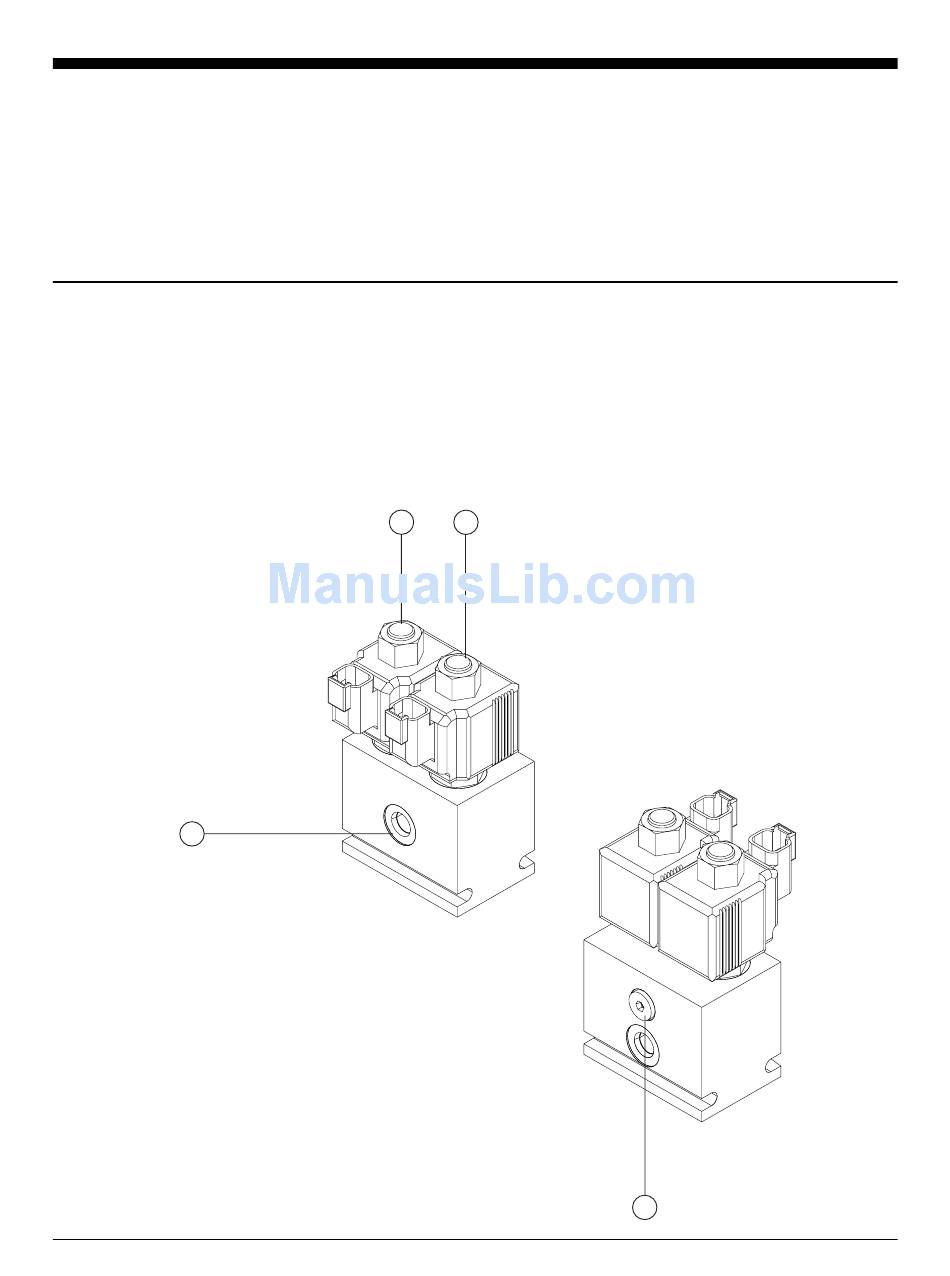

Brake / Two - Speed Manifold Components
(after serial number 4460)
The brake /Two - speed manifold is mounted inside the drive chassis.
Index
No. Description
1 Solenoid valve, 2 position 3 way .... EA ........... Brake ................................................ 20-25 ft-lbs / 37-34 Nm
2 Solenoid valve, 2 position 3 way .... EB ........... 2 speed ............................................ 20-25 ft-lbs / 37-34 Nm
3 Check valve .................................... EC ........... Pressure ............................................ 10-12 ft-lbs / 14-16 Nm
4 Orifice, 0.042 inch / 1.066 mm ....... ED ........... To tank
4
Part No. 75861
Schematic
Item Function
1 2
EA
EB
ED
Genie Z-60/34
Section 4 • Repair Procedures
Torque
EC
3
MANIFOLDS
4 - 49
